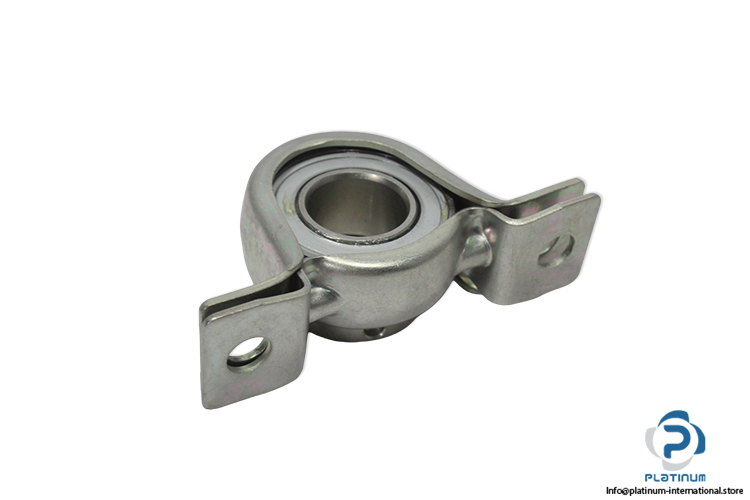

INA PB25-XL Plummer Block Housing Unit
New
In stock1 unitReady to ship

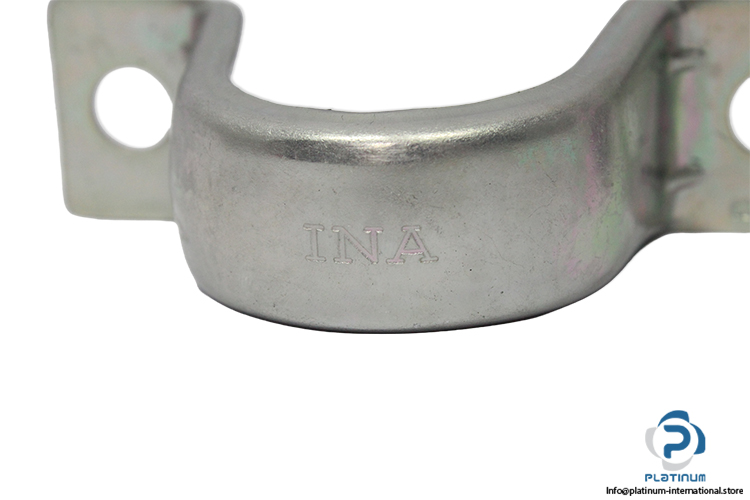

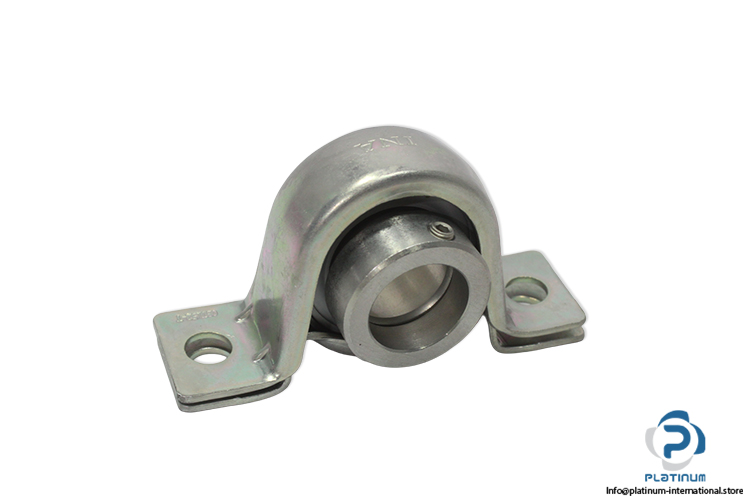

Plummer Block Housing Unit INA Schaeffler PB25-XL plummer block housing unit with a 25 mm bore, for reliable industrial shaft support.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Housing | GEH52-BT |

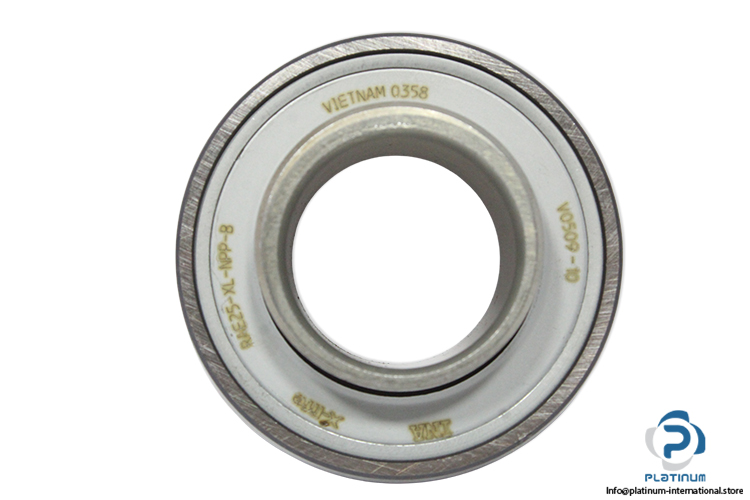

| Bearing designation | RAE25-XL-NPP-B |

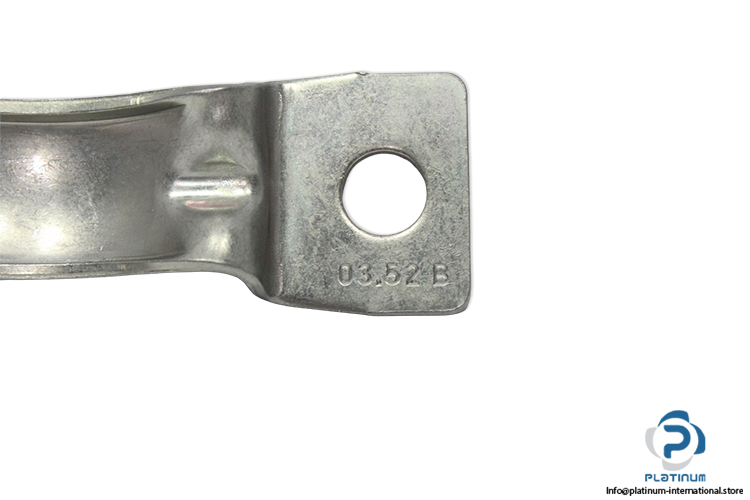

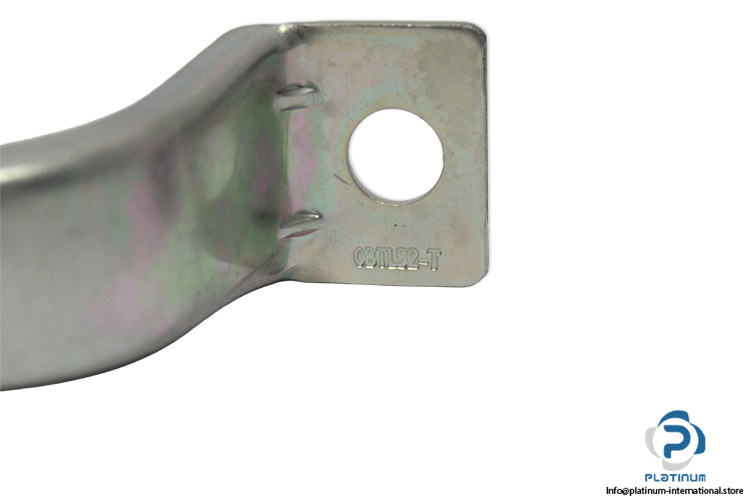

| Code | 03.52 B, OBTL52-T |

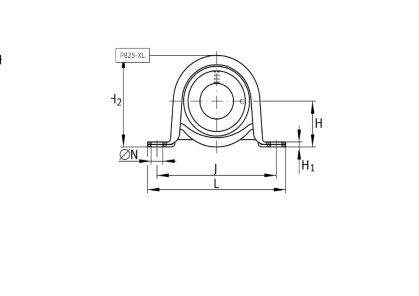

| Bore Diameter (d) | 25 mm |
| Overall Length (a) | 108 mm |
| Height | 56.5 mm |
| Distance shaft axis, H | 28.6 mm |
| Width (base), A | 31.8 mm |
| Width (head), A1 | 23.5 mm |
| Height (base), H1 | 4 mm |
| Load carrying capacity (housing) | 1,800 N |
| Basic dynamic load rating, radial | 14,000 N |
| Basic static load rating, radial | 7,800 N |
| Distance fixing bore, J | 86 mm |
| Fixing bore, N | 11.5 mm |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101217 |
| Weight | 0,35 |
