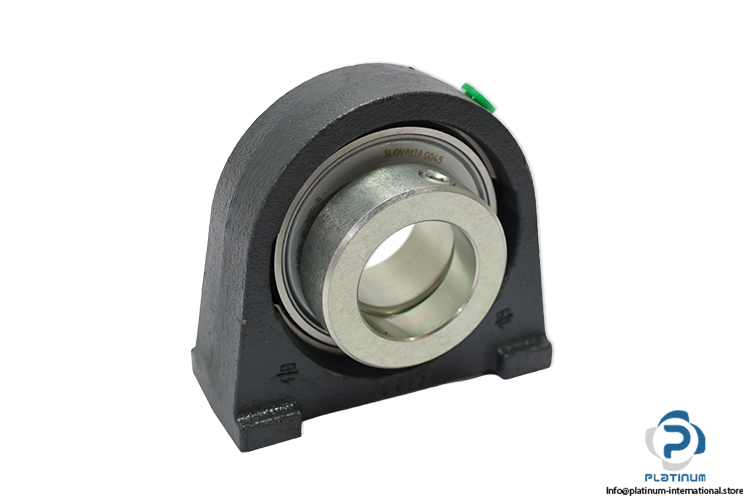

INA PSHE35-XL-N-I Plummer Block Housing Unit
New
In stock1 unitReady to ship

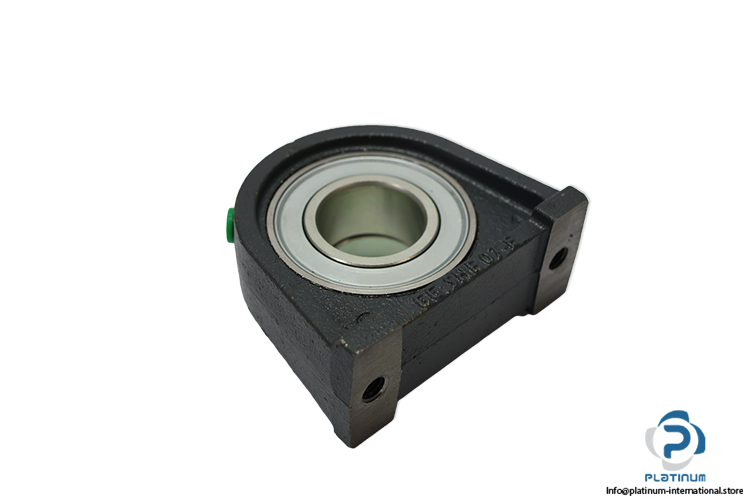

Plummer Block Housing Unit INA Schaeffler PSHE35-XL-N-I plummer block housing unit with a 35 mm bore, for reliable industrial shaft support.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

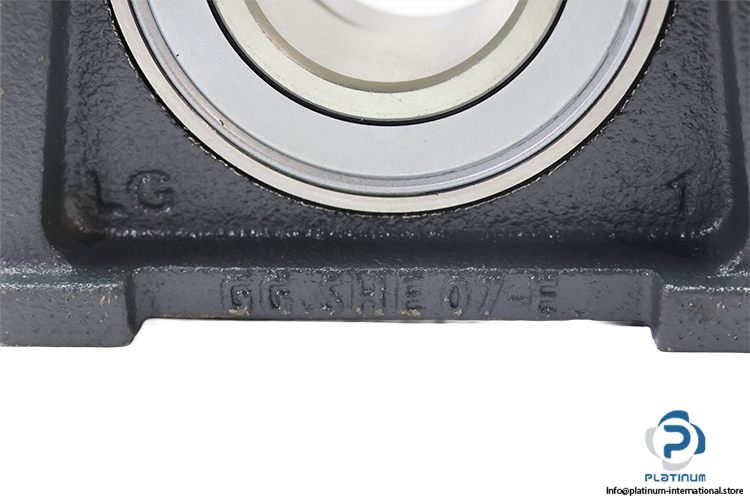

| Housing | GG SHE07-E |

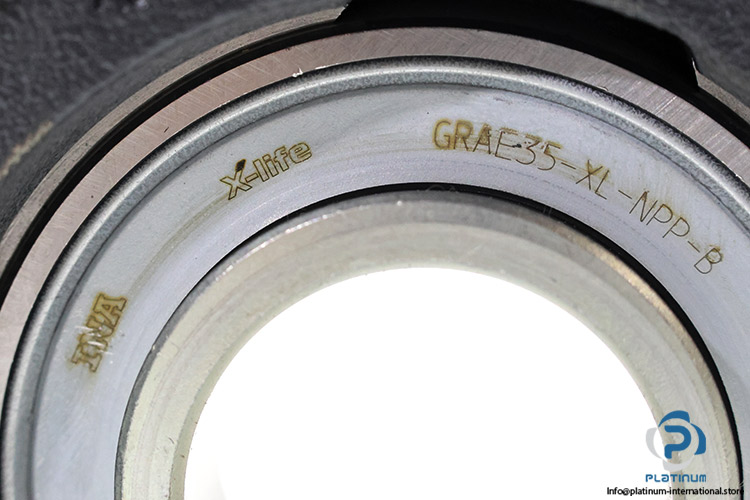

| Bearing designation | GRAE35-XL-NPP-B |
| Protecting cap | KASK07 |
| Code | 9072001500 |

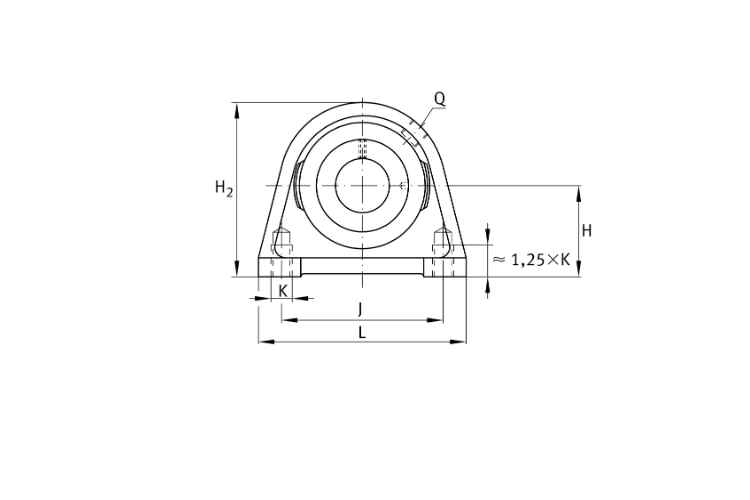

| Bore Diameter (d) | 35 mm |
| Overall Length (a) | 103 mm |
| Height | 93 mm |
| Distance fixing bore | 82.6 mm |
| Thread fixing bore | M10 |
| Distance shaft axis, H | 47.6 mm |
| Width (base), A | 45 mm |
| Width (head), A1 | 27 mm |
| Connection thread for lubrication, Q | M6 |
| Locking collar total width, B1 | 39 mm |
| Distance of raceway to locking collar, S1 | 29.5 mm |
| Groove ,N | Cast iron housing with undercut slot for end caps |
| Material | GG, Grey cast iron |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101219 |
| Weight | 1,30 |
