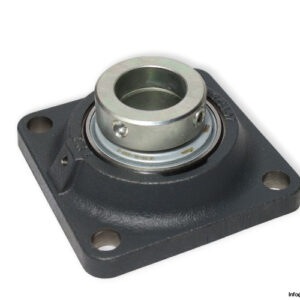

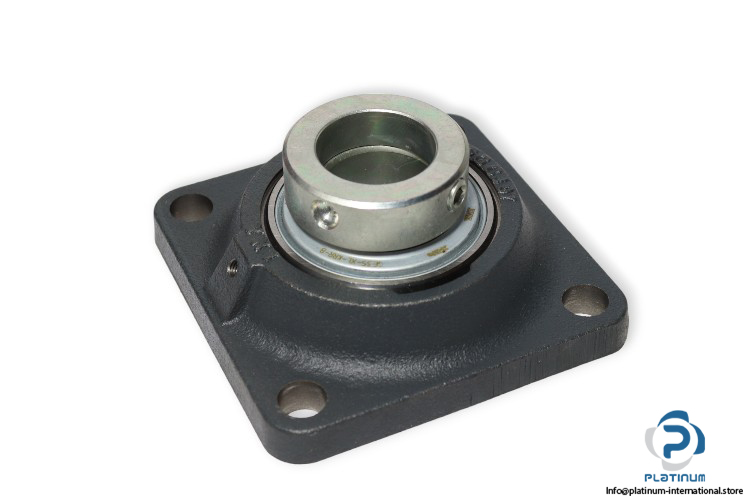

INA RCJ35-XL-N Flanged Housing Unit

Manufacturer: INA
Type: four-bolt flanged housing units
Model: RCJ 35 XL N
Replaces: RCJ35-N
Housing: GG.CJ07

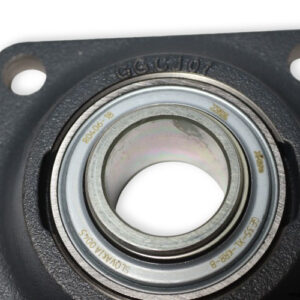

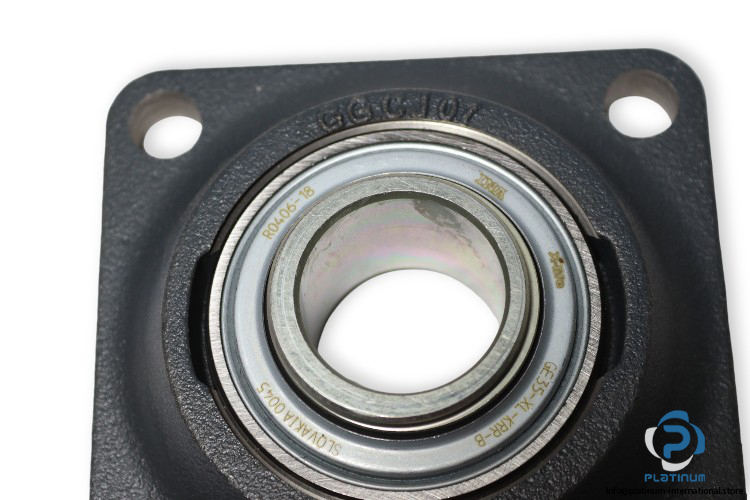

Bearing designation: GE35-XL-KRR-B

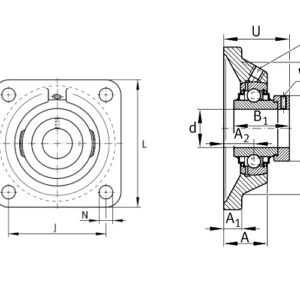

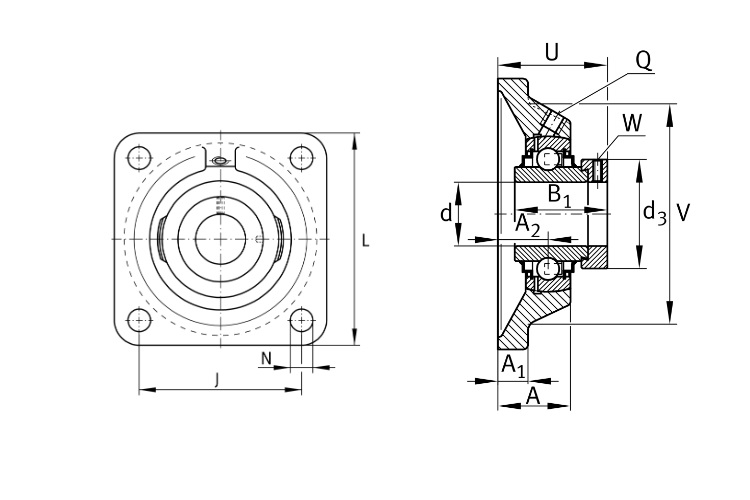

Bore Diameter d: 35 mm
Flange width L: 118 mm
Total height unit U: 53.5 mm
Distance fixing bore J: 92 mm
Fixing bore N: 14 mm
Basic dynamic load rating: 27500 N
Basic static load rating: 15300 N
Fatigue load limit: 800 N
Temperature range: -20 °C…100°C
Groove: N, Cast iron housing with undercut slot for end caps
Material: GG, Grey cast iron

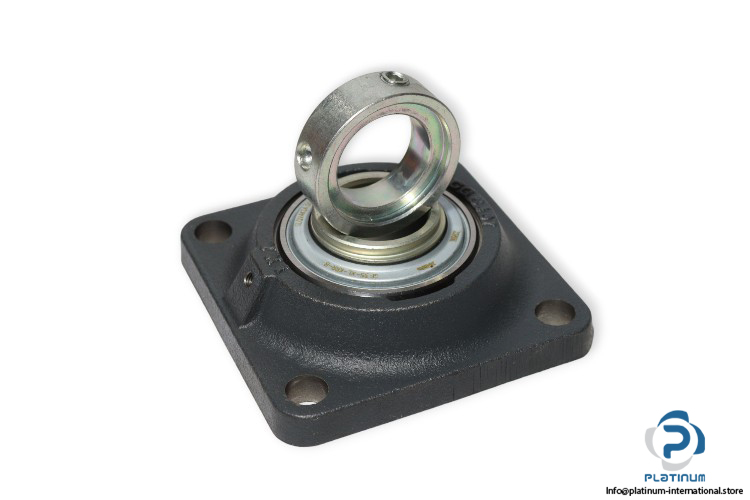

Locking device: eccentric locking collar
