INA RCJY40-N Flanged Housing Unit

Manufacturer: INA

Type: Flanged Housing Unit

Model: RCJY40-N

Replaces: RCJY40-XL-N

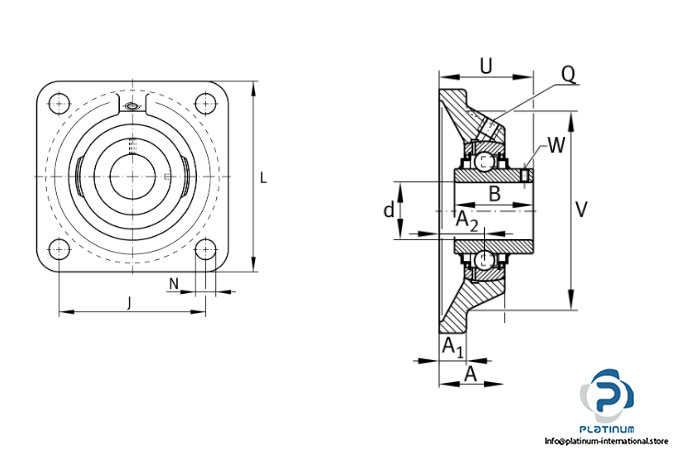

Bore Diameter d: 40 mm

Flange width L: 130 mm

Total height unit: 54.2 mm

Distance fixing bore J: 101.5 mm

Basic dynamic load rating: 34500 N

Basic static load rating: 19800 N

Fatigue load limit: 840 N

Bearing designation: GYE40-XL-KRR-B

Housing: CJ08

Temperature range: -20 °C…120°C

Groove: N, Cast iron housing with undercut slot for end caps
