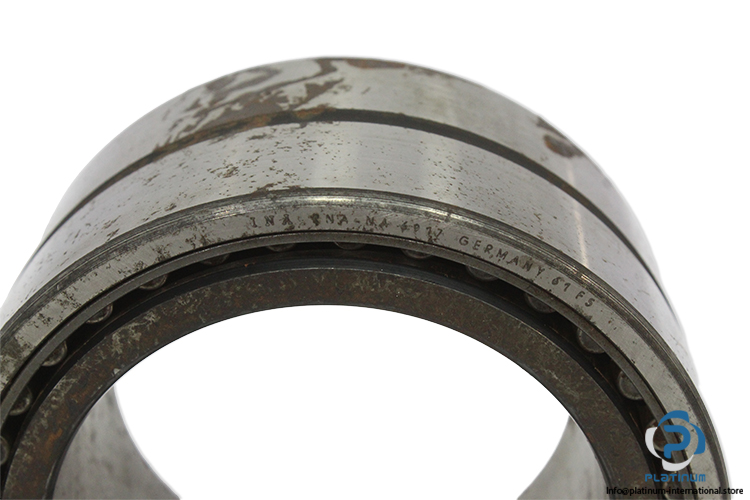

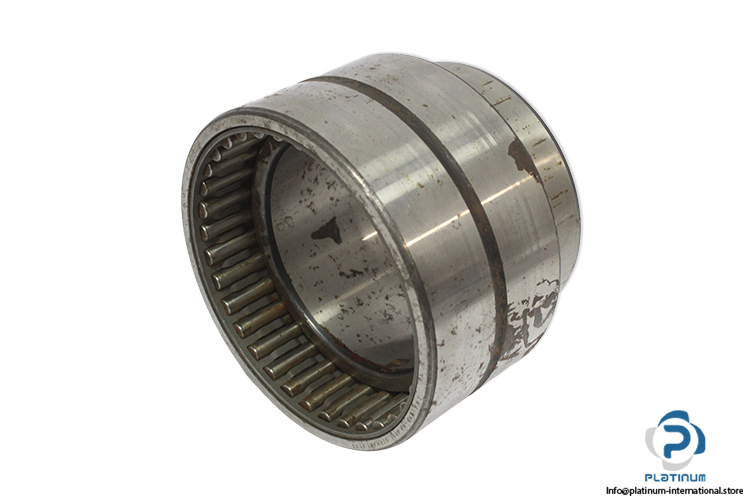

INA RNA-NA 6917 Needle Roller Bearing
Used
In stock1 unitReady to ship
Needle Roller Bearing The INA / Schaeffler RNA-NA6917 needle roller bearing is designed for high radial load capacity and reliable industrial performance. Featuring a 100 mm under roller diameter, 120 mm outer diameter, and operating temperatures from -30 to +120 °C, it is suitable for heavy-duty machinery and power transmission systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Under roller diameter Fw | 100 mm |
| Outer diameter D | 120 mm |
| Minimum chamfer dimension rmin | 1.1 mm |
| Dynamic load rating | 188000 N |
| Static load rating | 400000 N |
| Fatigue load rating | 72000 N |
| Reference speed | 2850 rpm |
| Limiting speed | 4600 rpm |
| Operating temperature | -30 … +120 °C |
| Condition | Used |
| SKU | 1098116 |
| Weight | 2,25 |
