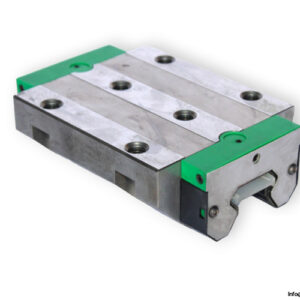

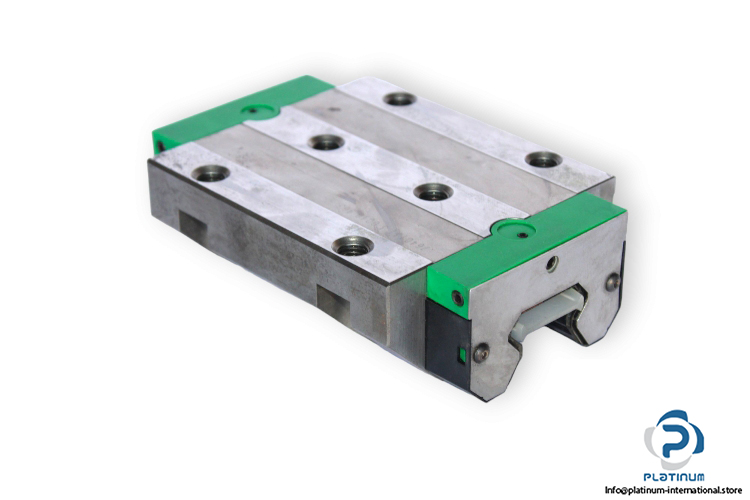

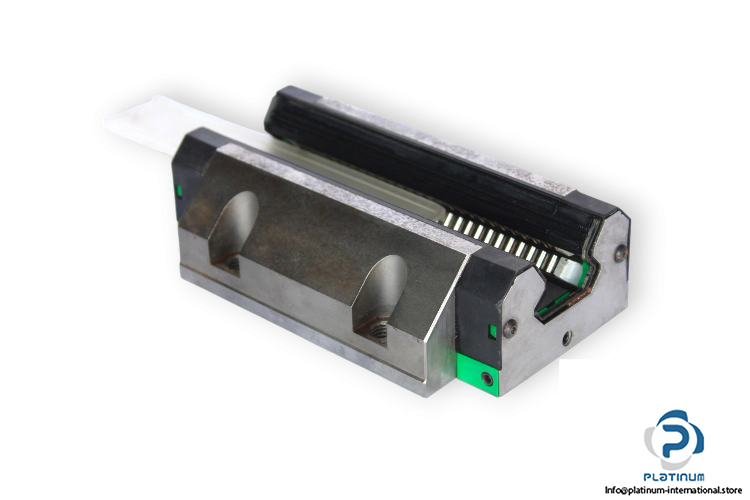

INA RWU45-E-L G2 V3 Recirculating Roller Bearing Carriage

Name: INA RWU45-E-L G2 V3 RECIRCULATING ROLLER BEARING CARRIAGE
SKU: 1029114
Price: 222.22 USD
Availability: InStock

ina-RWU45-E-L-G2-V3-recirculating-roller-bearing-carriage-(used)

ina-RWU45-E-L-G2-V3-recirculating-roller-bearing-carriage-(used)-1

ina-RWU45-E-L-G2-V3-recirculating-roller-bearing-carriage-(new)-(carton)-2

Used

In stock1 unitReady to ship

222,22$

Manufacturer:

Schaeffler INA

Type:

Recirculating Roller Bearing Carriage

MNR:

RWU45-E-L G2 V3

SKU

1029114

Category

Linear Motion

Condition

Used

60 bearing Blocks carriages Guideway Ina Linear mm Motion Recirculating Roller Runner Schaeffler

New Available on request 266,66$

This product is also available brand new

View New Version →

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: Schaeffler INA
Type: Recirculating Roller Bearing Carriage
MNR: RWU45-E-L G2 V3

Size: 45

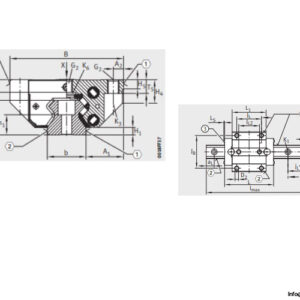

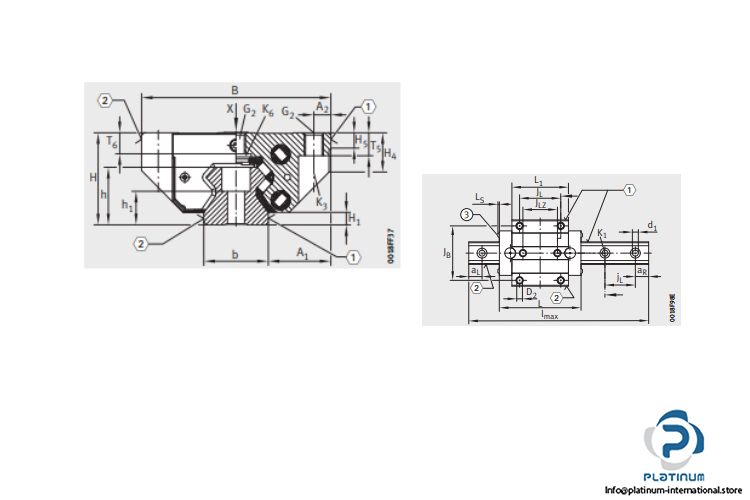

Dimensions
Height system H: 60 mm
Width carriage A: 120 mm
Overall length carriage C: 178.3 mm
Block Hight: 51.5 mm
Carriage Design: long design
Accuracy Class: G2
Carriage Preload: V3
Basic Dynamic load rating: 114000 N
Basic Static load rating: 285000 N
Block Type: Flange Type
No. of ball(roller rows): Four Row
Static Moment Rating About:
X axis M_0x: 2503 Nm
Y axis M_0Y: 7263 Nm
Z axis M_0Z: 6536 Nm
