INA RWU45-F-L-120/930/120 V3-G2 Recirculating Roller Bearing Carriage
New
In stock24 unitsReady to ship
249,99$
RECIRCULATING ROLLER BEARING CARRIAGE
INA RWU45-F-L-120/930/120 V3-G2 recirculating roller bearing carriage with preload V3, accuracy G2, and dynamic load rating of 114000 N. Designed for precise, high-load linear motion applications.bearingBlockCapacityCarriageGuideHeavyHighInaIndustrialLinearLoadMotionPrecisionrailRecirculatingRollerRWU45-F-L-120/930/120TSX45-EV3-G2
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
INA RWU45-F-L-120/930/120 V3-G2 RECIRCULATING ROLLER BEARING CARRIAGE
The INA RWU45-F-L-120/930/120 V3-G2 is a precision-engineered recirculating roller bearing carriage designed for high-load linear motion applications. With excellent rigidity, preload V3, and accuracy class G2, it provides smooth and reliable guidance in demanding industrial environments.
Manufacturer: INA
Type: Recirculating Roller Bearing Carriage
Model: RWU45-F-L-120/930/120 V3-G2
Code: CN 8111 Y12

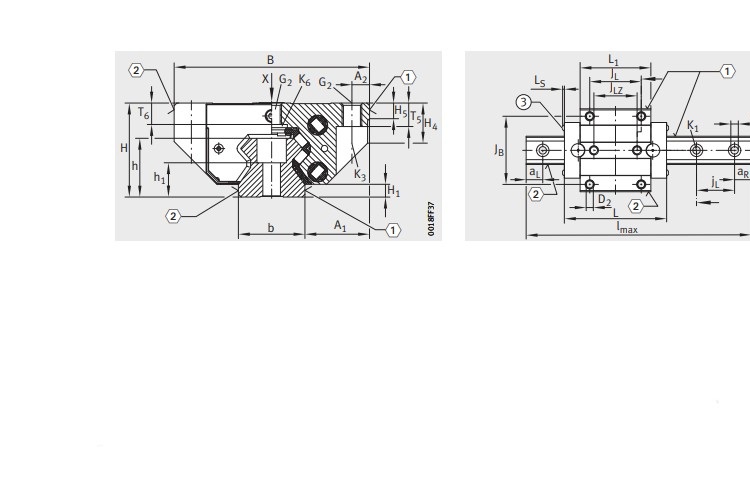

| Rail | TSX45-E |
| Size Code | 45 |
| Height of System | 60 mm |
| Height of Block | 51.5 mm |
| Width | 120 mm |
| Length | 178.3 mm |
| JL | 80 mm |
| JB | 100 mm |
| Maximum Length | 930 mm |
| Spacing to Hole on the Left | 120 mm |
| Spacing to Hole on the Right | 120 mm |
| Dynamic Load Rating | 114000 N |
| Static Load Rating | 285000 N |
| Static Moment Rating about X Axis | 2503 Nm |
| Static Moment Rating about Y Axis | 7263 Nm |
| Static Moment Rating about Z Axis | 6536 Nm |
| Preload | V3 |
| Accuracy | G2 |
| Note | We also provide the corresponding rails (guideways) in a wide range of lengths - please ask us if you need rails to match your bearing |
