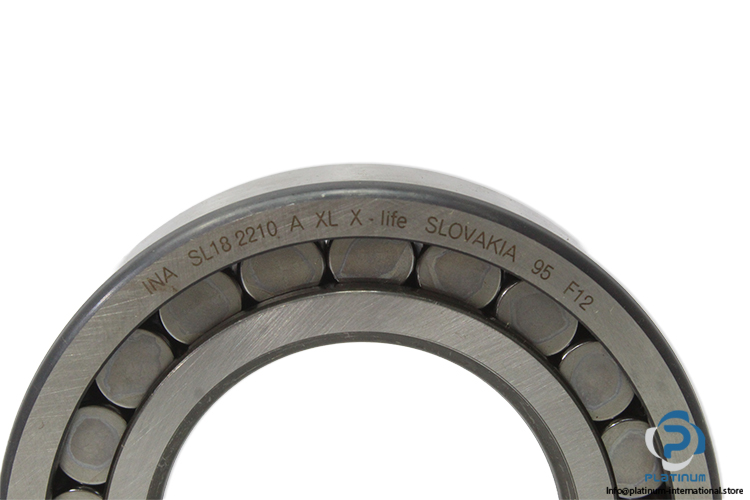

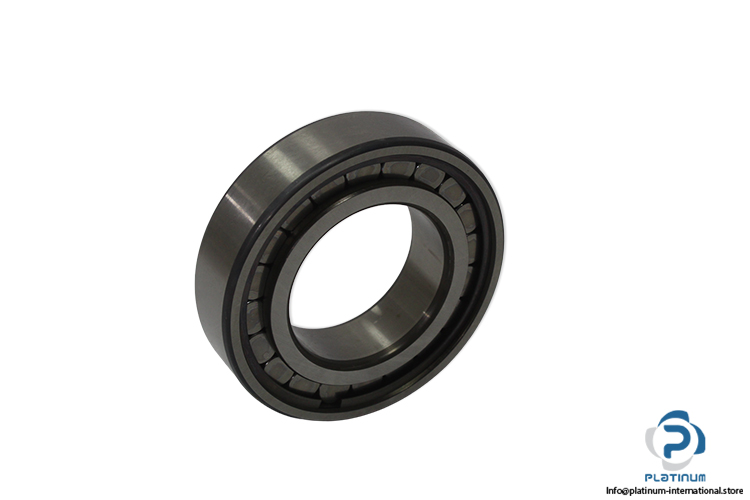

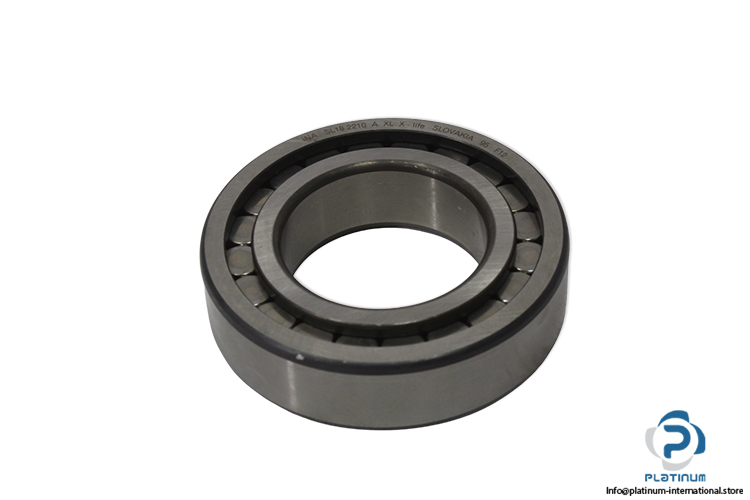

INA SL182210-A-XL Cylindrical Roller Bearing
New
In stock1 unitReady to ship
Cylindrical Roller Bearing The INA Schaeffler SL 182210-A-XL is a cylindrical roller bearing with a 50 mm bore and high radial load capacity for demanding industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

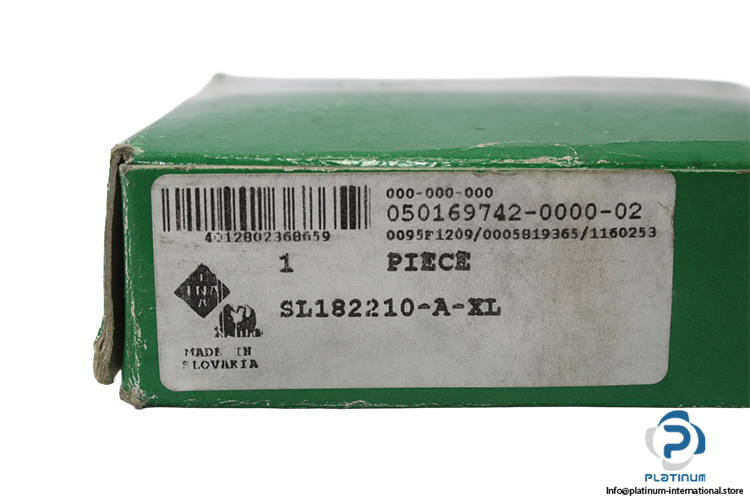

| Code | 050169742-0000-02,4012802368659,0095F1209/0005819365/1160253 |
| Bore diameter d | 50 mm |
| Outer diameter D | 90 mm |
| Width B | 23 mm |
| Minimum chamfer dimension | 1.1 mm |
| Dynamic Load Capacity C | 109,000 N |
| Static Load Capacity C0 | 111,000 N |
| Fatigue load limit, radial | 18,500 N |
| Limiting speed | 5,500 1/min |
| Reference speed | 3,000 1/min |
| Design | Internal Variant A |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101199 |
| Weight | 0,65 |
