INA TFE40-XL Flanged Housing Unit
New
In stock2 unitsReady to ship

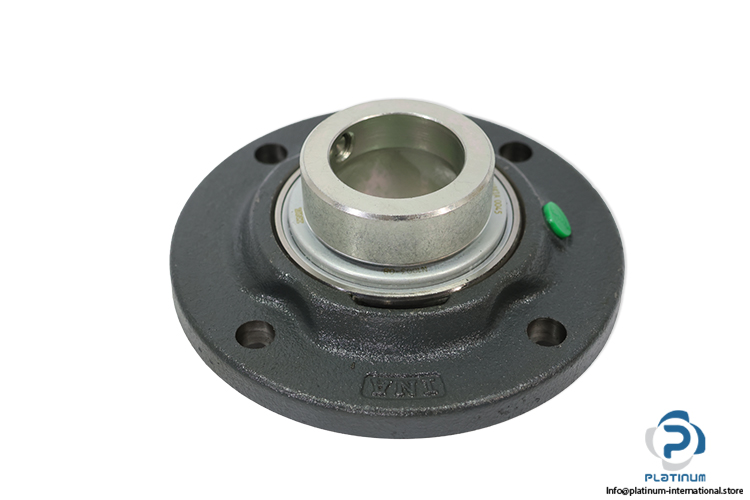

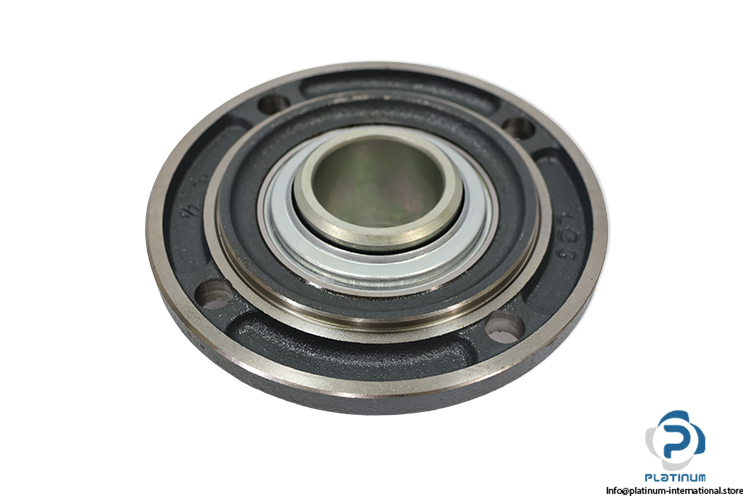

Flanged housing unit INA Schaeffler TFE 40-XL Flanged housing unit with a 40mm bore, GE40-XL-KTT-B bearing and durable grey cast iron housing.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Bearing No. | GE40-XL-KTT-B |

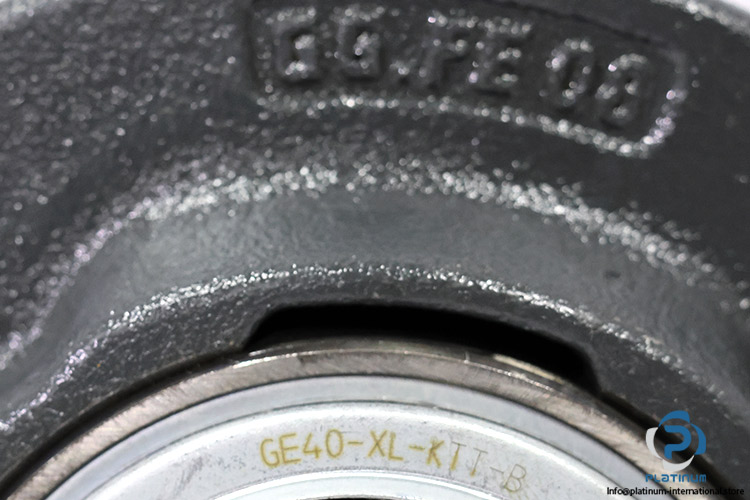

| Housing No. | GG FE08 |
| Bore diameter, d | 40 mm |
| Height flange, H | 145 mm |
| Flange width, H | 145 mm |
| Total height unit, U | 46.6 mm |
| Basic dynamic load rating, radial, Cr | 34,500 N |
| Basic static load rating, radial, C0r | 19,800 N |
| Fatigue load limit, radial , Cur | 840 N |
| Height housing, A | 28 mm |
| Thickness of flange, A1 | 11.5 mm |
| Material | GG, Grey cast iron |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101277 |
| Weight | 1,80 |
