INA RASEY40-XL-N Plummer Block Housing Unit

Manufacturer: Schaeffler INA
Type: Plummer block housing unit
Model: RASEY40 XL N
Housing: GG. ASE08
Bearing designation: GYE40-XL-KRR-B

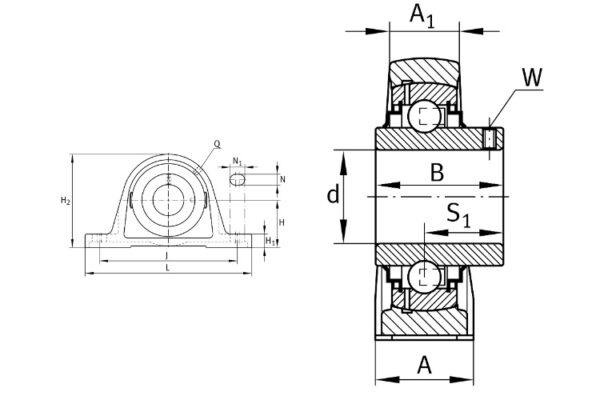

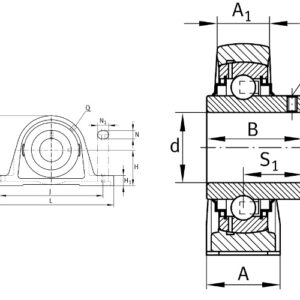

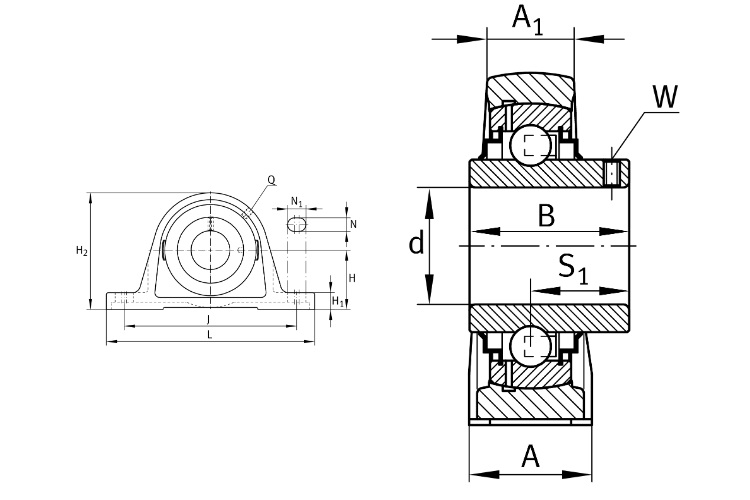

Dimensions
Bore Diameter d: 40 mm
Overall length L: 179 mm
Hight H2: 99 mm
Distance fixing bore J: 138.25 mm
Distance shaft axis H: 42.9 mm
width (Slot) N: 14 mm
Length (slot ) N1: 26 mm
Width (base) A: 48 mm
Connection thread for lubrication: M6
Groove: N, Cast iron housing with undercut slot for end caps
Locking device: eccentric locking collar
Material: GG, Grey cast iron
Protecting cap: KASK08
