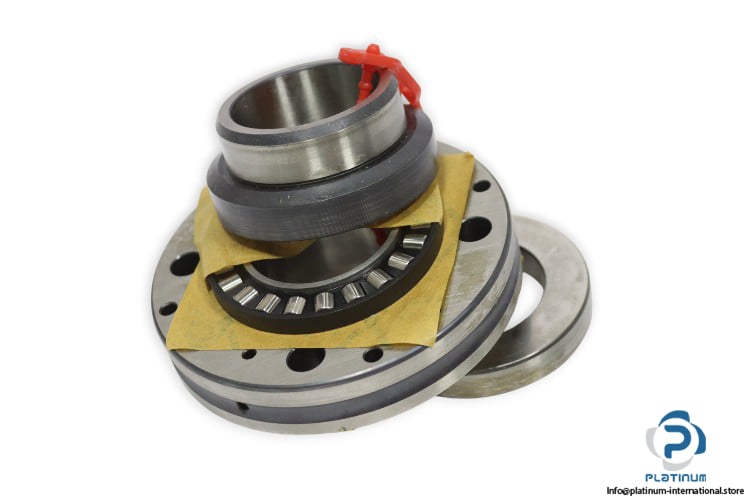

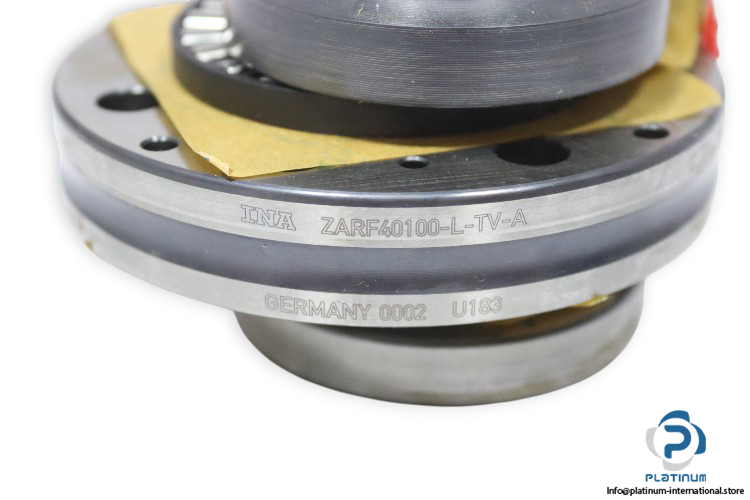

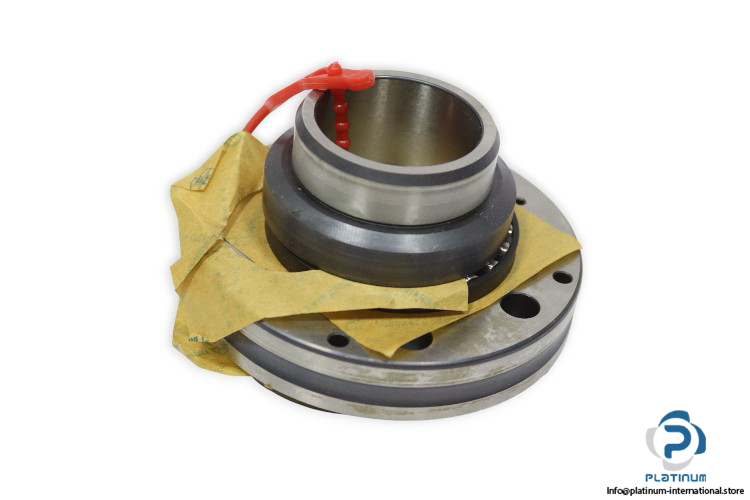

INA ZARF40100-L-TV-A Needle Roller/Axial Cylindrical Roller Bearing
New
In stock1 unitReady to ship
Needle Roller / Axial Cylindrical Roller Bearing
INA ZARF40100-L-TV-A bearing with 40 mm bore, combined radial and axial load capacity, PA66 plastic cage, and high load ratings for demanding industrial applications.AxialbearingCombinedCylindricalInaIndustrialLoadMachineNeedlePrecisionRollerSchaefflerToolZARF40100-L-TV-A
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
INA ZARF40100-L-TV-A Needle Roller / Axial Cylindrical Roller Bearing
The INA ZARF40100-L-TV-A is a precision needle roller and axial cylindrical roller bearing engineered for applications requiring high radial and axial load capacity. Its advanced internal design and plastic cage ensure reliable operation, dimensional stability, and consistent performance under demanding industrial conditions.
Manufacturer: INA / Schaeffler
Type: Needle Roller / Axial Cylindrical Roller Bearing
Model: ZARF40100-L-TV-A
| Bore Diameter (d) | 40 mm |
| Outer Diameter (D) | 100 mm |
| Height (H) | 70 mm |
| Radial Dynamic Load Rating (Cr) | 27,500 N |
| Radial Static Load Rating (C0r) | 53,000 N |
| Axial Dynamic Load Rating (Ca) | 59,000 N |
| Axial Static Load Rating (C0a) | 163,000 N |
| Axial Fatigue Load Rating (Pu) | 14,200 N |
| Radial Fatigue Load Rating (Pu) | 7,600 N |
| Limiting Speed (Oil Lubrication) | 4,400 1/min |
| Limiting Speed (Grease Lubrication) | 1,600 1/min |
| Cage | TV, Plastic Cage (PA66) |
| Locating Feature (Outer Ring) | L, stepped shaft locating washer extended on one side |
| Design | A, internal variant cage |
| Operating Temperature Range | -30 to +120 °C |
