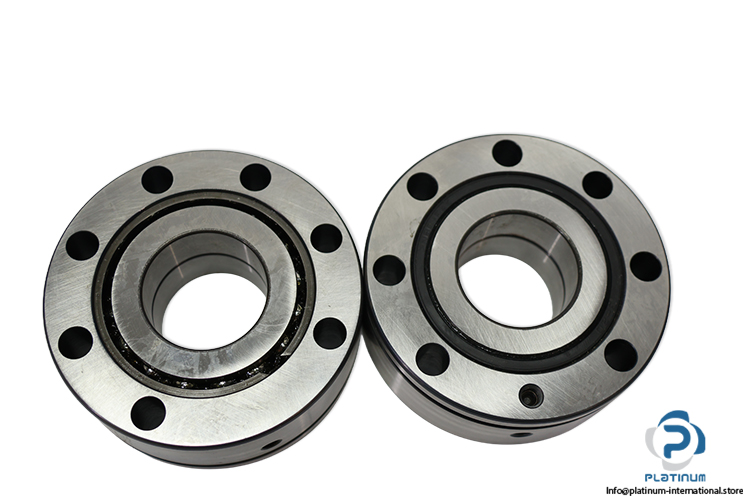

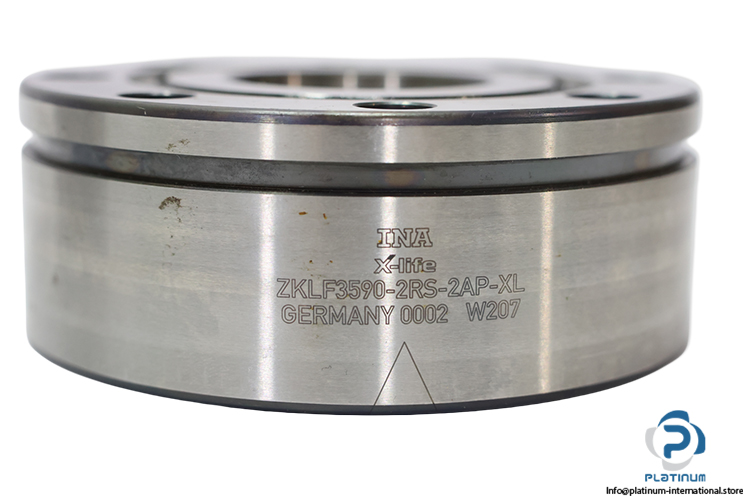

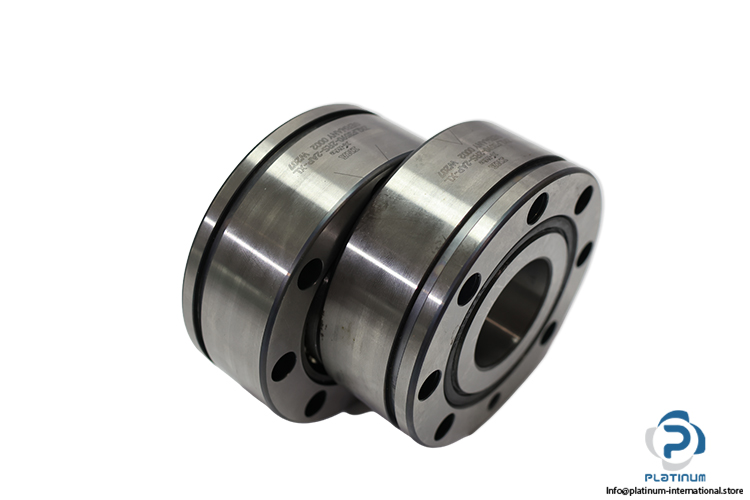

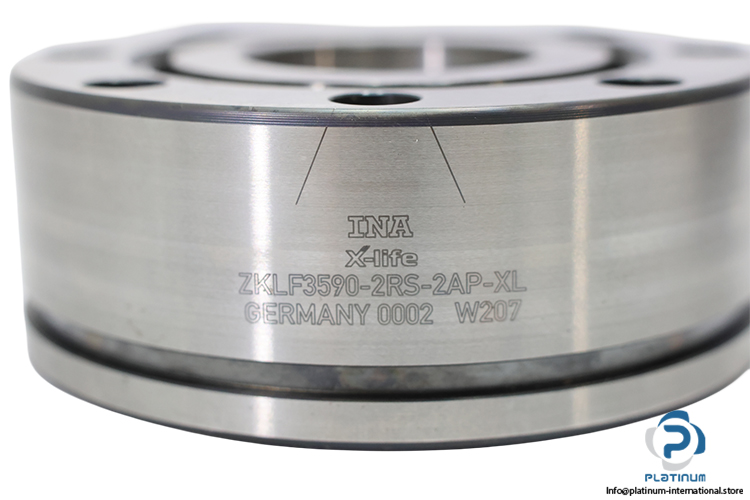

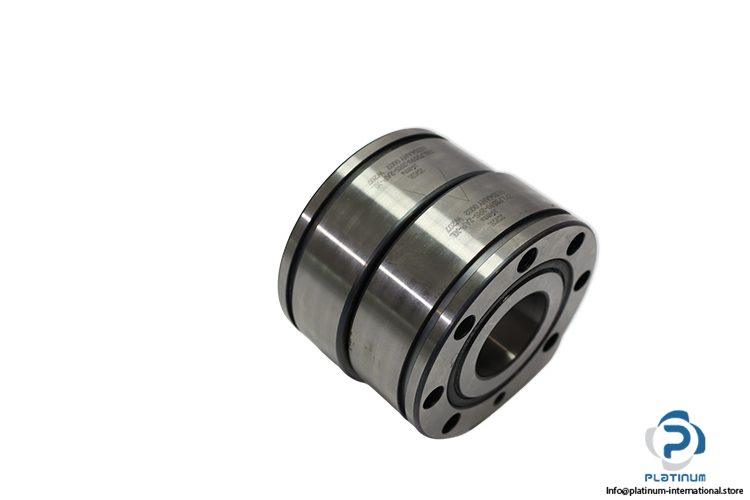

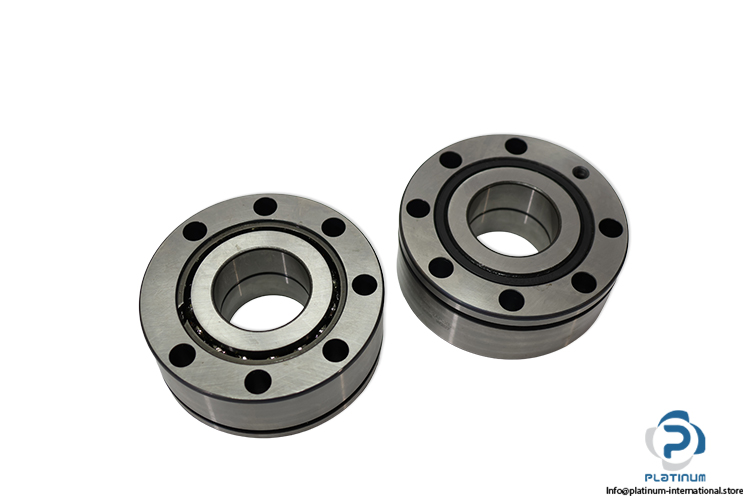

INA ZKLF3590-2RS-2AP-XL Axial Angular Contact Ball Bearing
New
In stock1 unitReady to ship
Axial Angular Contact Ball Bearing The INA Schaeffler ZKLF3590-2RS-2AP-XL is a matched pair axial angular contact ball bearing with 35 mm bore, high load capacity, and 2RS seals.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

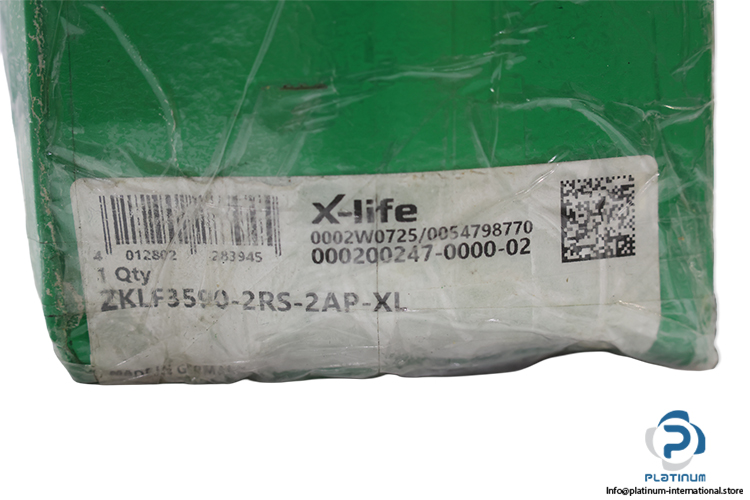

| Code | 0002W0725/0054798770/000200247-0000-02 |
| Bore diameter d | 35 mm |
| Outer diameter D | 90 mm |
| Width B | 68 mm |
| Dynamic Load Capacity C | 73,000 N |
| Static Load Capacity C0 | 177,000 N |
| Fatigue load limit, axial | 10,800 N |
| Limiting speed for grease lubrication | 4,400 1/min |
| Thermally safe operating speed | 2,000 1/min |
| Bearing frictional torque | 0.9 Nm |
| Maximum diameter of housing | 62 mm |
| Minimum diameter shaft | 45 mm |
| Position tolerance of bore in the housing | 0.2 mm |
| Size of fixing screws | M8X80 |
| Number of holes in adjacent construction | 7 |
| Pitch separation angle of holes in adjacent construction | 45 ° |

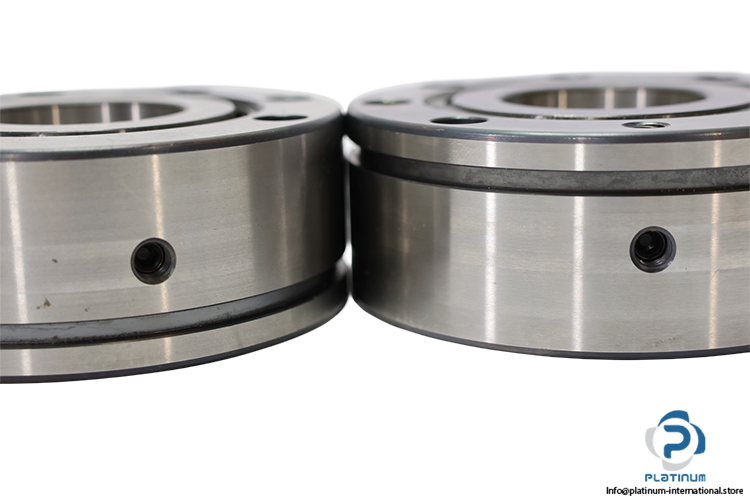

| Connection thread for lubrication | M6 |
| Number of bearings | 2AP Axial angular contact ball bearings, matched pair |
| Sealing | 2RS Contact lip seals on both sides |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101203 |
| Weight | 2,30 |
