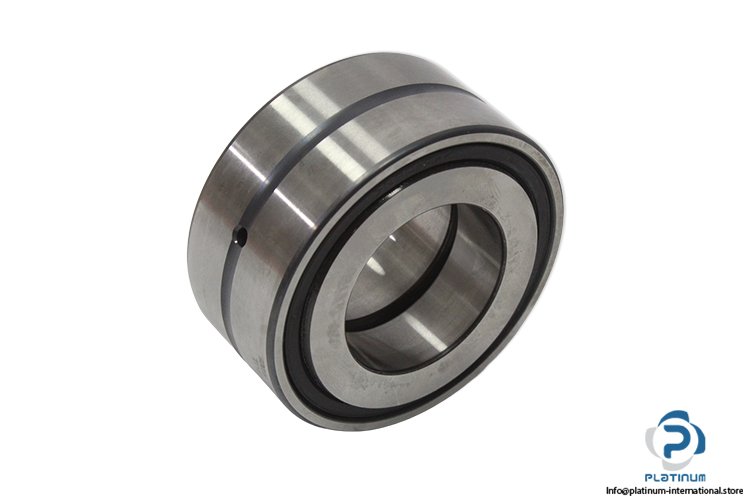

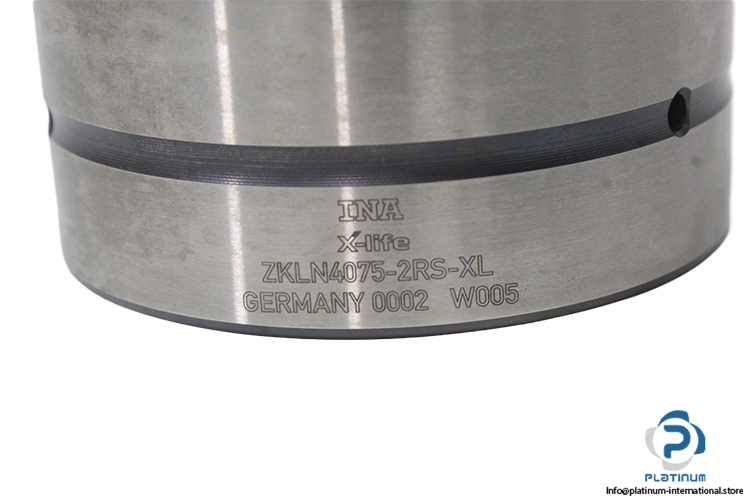

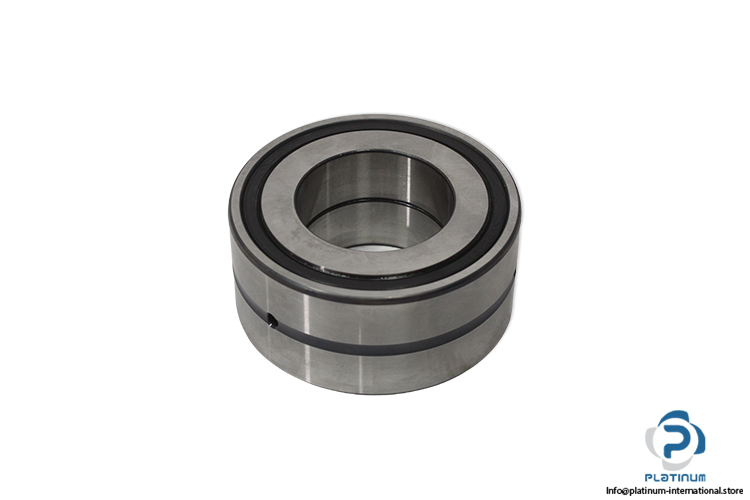

INA ZKLN4075-2RS-XL Axial Angular Contact Ball Bearing
New
In stock1 unitReady to ship
399,99$
Axial Angular Contact Ball Bearing The INA Schaeffler ZKLN 4075-2RS-XL is a matched pair axial angular contact ball bearing with 35 mm bore, high load capacity, and 2RS seals.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Series | ZKLN |
| Code | 6741816, W005 |
| Bore diameter d | 40 mm |
| Outer diameter D | 75 mm |
| Width B | 34 mm |
| Dynamic Load Capacity C | 47.500 N |
| Static Load Capacity C0 | 101.000 N |
| Fatigue load limit, axial | 6.100 N |
| Limiting speed for grease lubrication | 4,000 1/min |
| Thermally safe operating speed | 1800 1/min |
| Bearing frictional torque | 0.7 Nm |
| Maximum diameter of housing | 67 mm |
| Minimum diameter shaft | 50 mm |
| Rigidity axial | 1.000 N/µm |
| Tilting rigidity | 550 Nm/mrad |
| Mass moment of inertia | 2,26 kg*cm2 |
| Axial runout | 2,5 µm |
| Recommended INA precision locknut for radial locking | ZM40 |
| Recommended INA precision locknut for axial locking | AM40 |
| Tightening torque for the recommended INA precision locknut | 55 Nm |
| Required locknut force axial | 13.412 N |
| Sealing | 2RS Contact lip seals on both sides |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101204 |
| Weight | 0,65 |
