Ipiranga 16.3220 Rolled Ball Screw
New
In stock1 unitReady to ship
199,99$
Flanged Rolled Ball Screw
The IPIRANGA 16.3220 ball screw ensures high precision and durability in linear motion systems. With a 32 mm diameter and 20 mm lead, it provides smooth and efficient performance for CNC and automation applications.16.3220ActuationAutomationBallCNCComponentEquipmentflangedIndustrialIpirangaLinearMachineryMotionPrecisionRight-HandRolledscrewThread
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
IPIRANGA 16.3220 Flanged Rolled Ball Screw
The IPIRANGA 16.3220 Flanged Rolled Ball Screw is a high-precision linear motion component engineered for superior load capacity and efficiency. Designed with a 32 mm screw diameter and 20 mm lead, it provides smooth, accurate motion transmission for CNC machines, automation systems, and heavy-duty positioning applications.
Manufacturer: IPIRANGA
Type: Flanged Rolled Ball Screw
Model: 16.3220
Size: 32 x 20 R
Inputs: 4
| Screw Shaft Outer Diameter (d) | 32 mm |
| Lead | 20 mm |
| Direction of Lead | Right-Hand Thread |
| Dynamic Rating Load (C) | 32.9 kN |
| Static Rating Load (Co) | 96.4 kN |

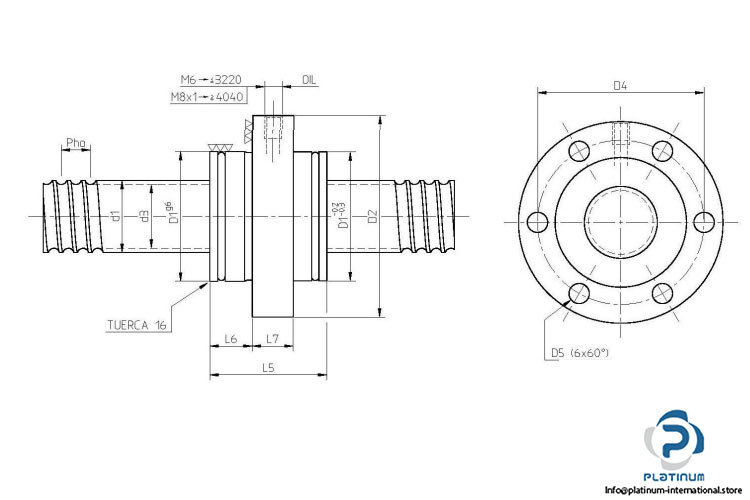

| Outer Diameter (D1) | 53 mm |
| Flange Diameter (D2) | 80 mm |
| Overall Length (L5) | 55 mm |
| L7 | 16 mm |
| D4 | 68 mm |
