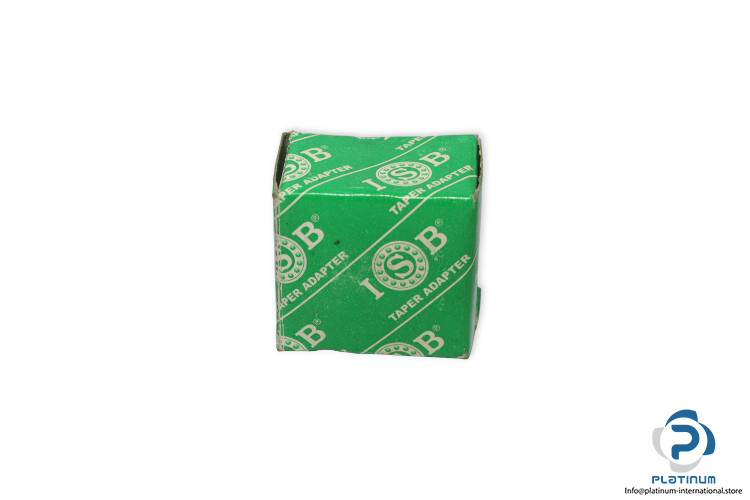

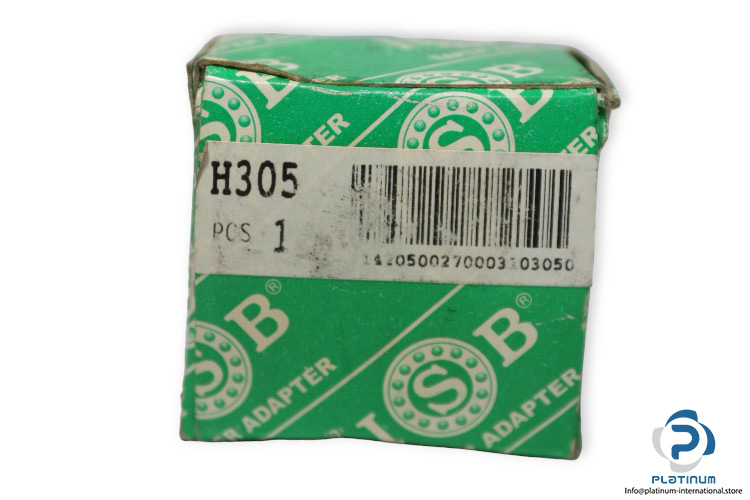

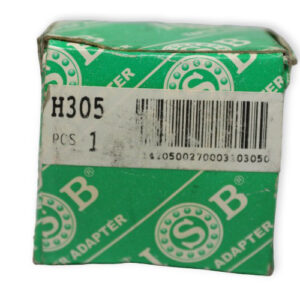

ISB H305 Adapter Sleeve
Manufacturer: ISB
Type: Adapter sleeves with lock nut and washer
Model: H 305

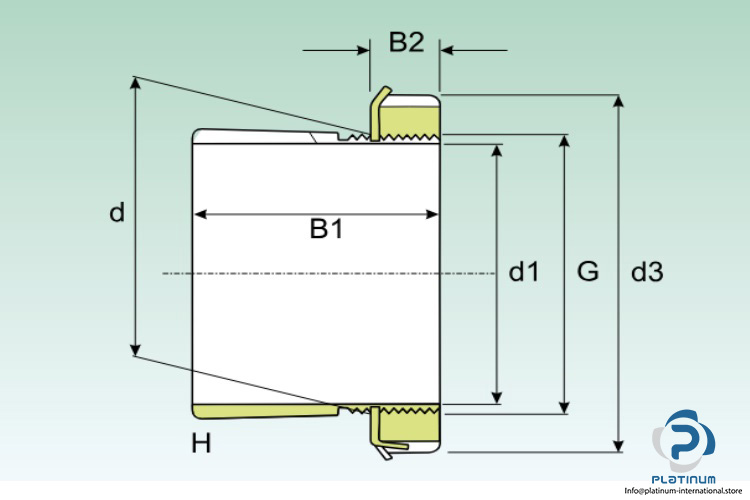

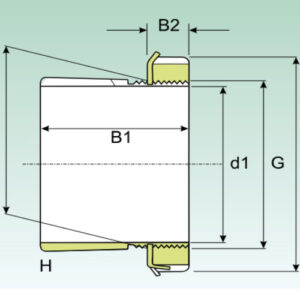

Dimensions:
Bore Diameter d1: 20 mm
Outside diameter small taper d: 25 mm
Outer diameter lock nut d3: 38 mm
Width B1: 29 mm
Width lock nut including lock washer B2: 9 mm
Thread G: M25x1.5
Designation:
Lock nut: KM 5
Washer: MB 5
