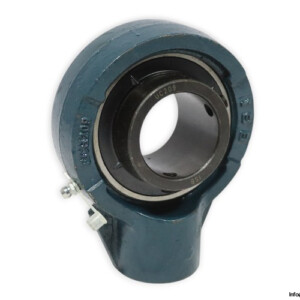

ISB Ucech 209 Hanger Bearing Unit
New
In stock1 unitReady to ship
ISB Hanger Bearing Unit UCECH209, featuring a 45 mm bore diameter, load capacity of up to 18,210 N, and working temperature range from -35°C to +102°C, ensures durability and precision for industrial use.
1821045bearingborediameterdurableECH209HangerHousingIndustrialISBLoadmmNPBTRatingsolutionUC209UCECH209Unit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

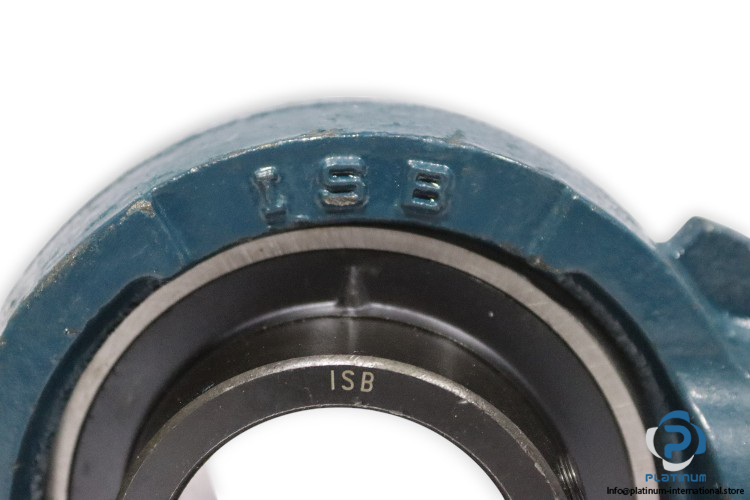

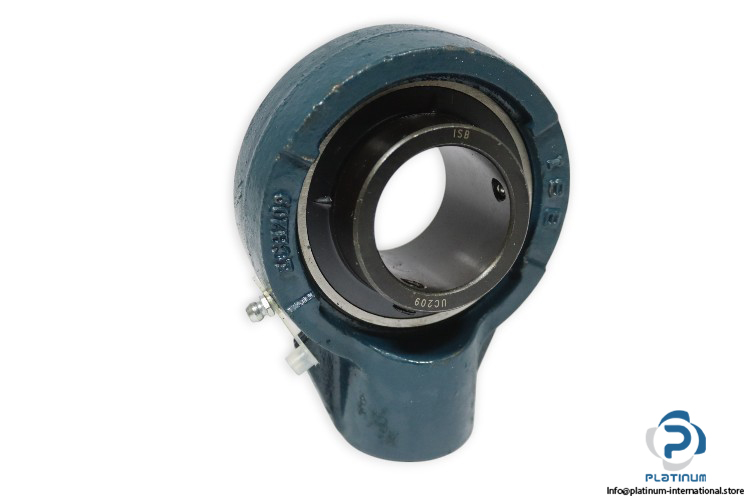

ISB Hanger Bearing Unit UCECH209
The ISB Hanger Bearing Unit UCECH209 is a durable and versatile bearing solution designed for industrial applications. With high load capacity, precise dimensions, and robust material, it ensures reliable performance under various conditions. The unit includes bearing number UC209 and housing number ECH209.
🔧 Technical Specifications:
- Manufacturer: ISB
- Type: Hanger Bearing Unit
- Model: UCECH209

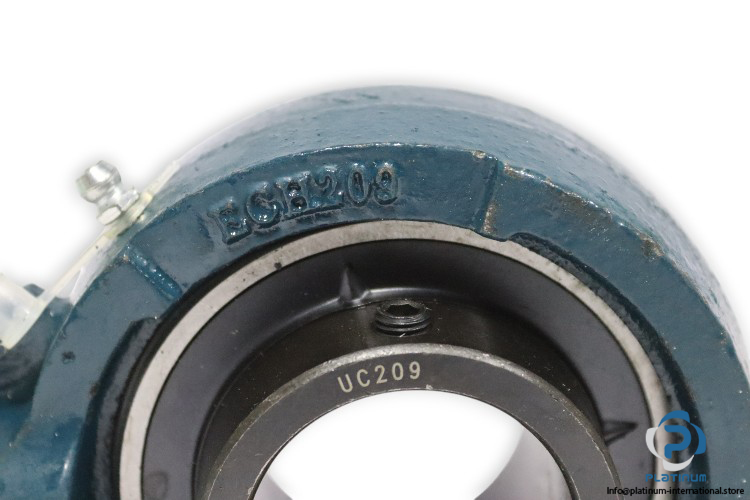

- Bearing Number: UC209
- Housing Number: ECH209

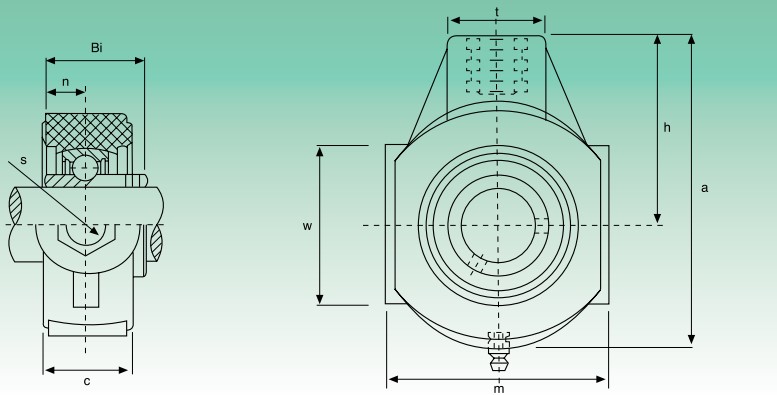

📠Dimensions:
- Bore Diameter (d): 45 mm
- Overall Height (a): 149 mm
- Overall Length (m): 110 mm
- Center Height (h): 90 mm
- Width of Inner Ring (Bi): 49.2 mm
- Other Dimensions: w = 85 mm, j = 40 mm, g = 19 mm
š™ï¸ Additional Information:
- Material: PBT (white, black, and green colors available)
- Bolt Size: M20
- Working Temperature: -35°C to +102°C
- Load Rating: From Top/Bottom = 18,210 N, From Sides = 8,710 N
Designed for durability and adaptability, the ISB UCECH209 hanger bearing unit is ideal for demanding industrial environments.
