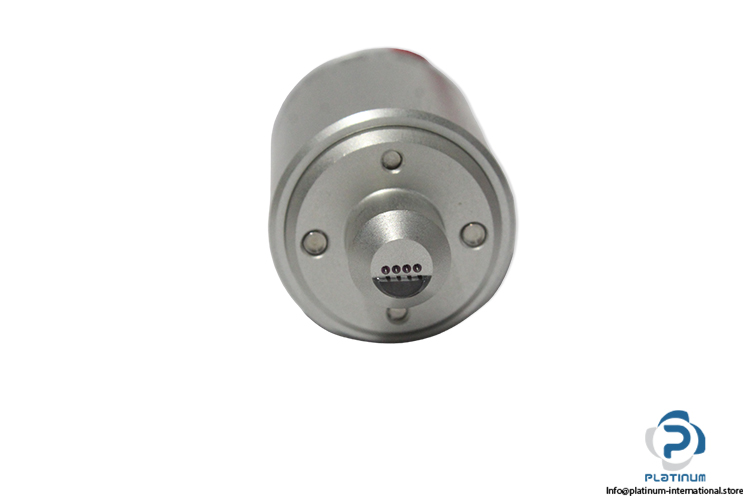

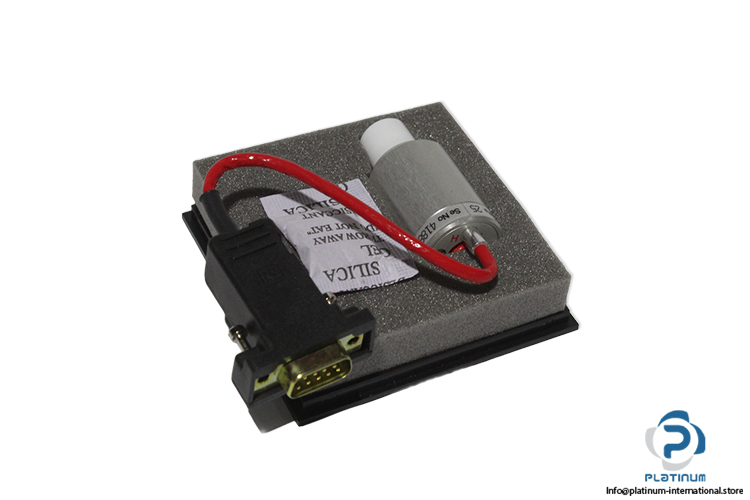

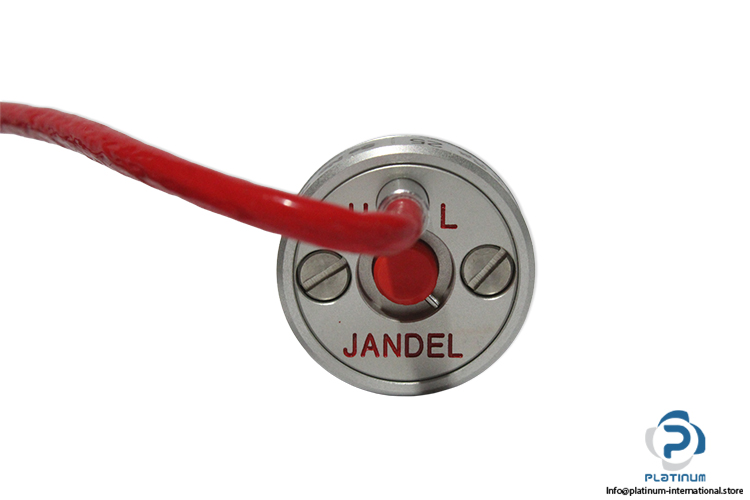

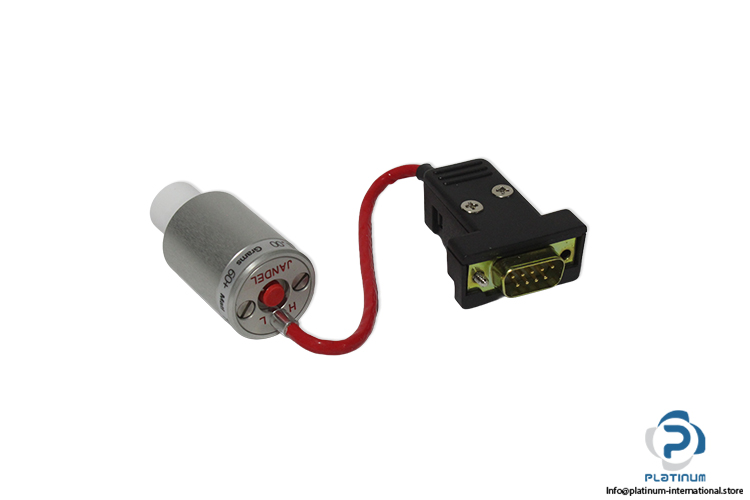

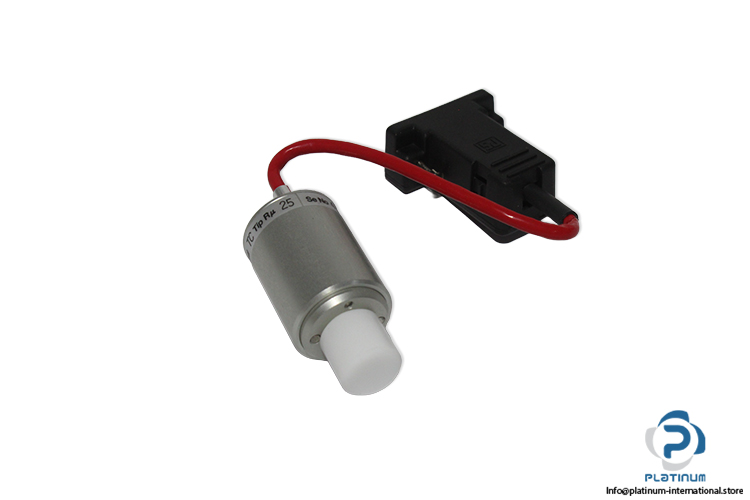

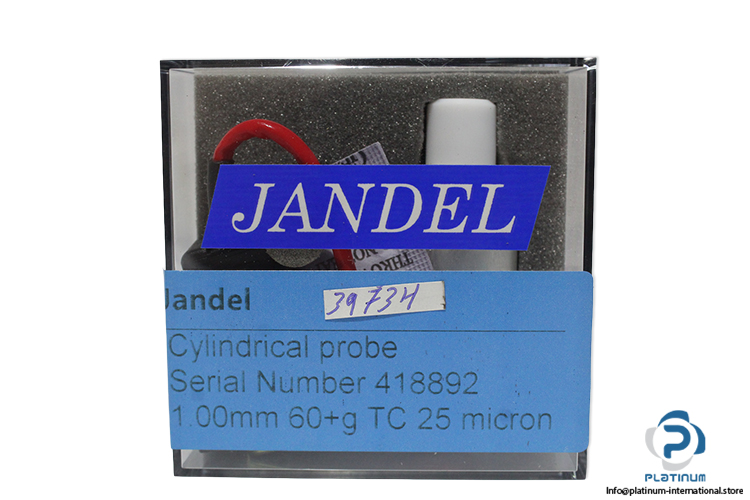

JANDEL TC TIP Rµ 25 CYLINDRICAL FOUR-POINT PROBE HEAD
New
In stock4 unitsReady to ship
Cylindrical Four-Point Probe Head JANDEL TC Tip Rµ 25 four-point probe head with tungsten carbide needles, multiple probe spacing options, and precision probe loads for electrical measurement and material testing applications
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Serial Number | 418892 |
| Probe spacing | 0.500mm, 0.635mm, 1.00mm, 1.27mm, 1.591mm (needle to needle) |
| Tolerance | +/- 10 microns |
| Arrangement | Linear or square array |
| Needles | Tungsten carbide 0.4mm diameter (0.3mm diameter for close spacing) |
| Needle option | 50% Osmium alloy tips are available |
| Radii | 12.5, 25, 40, 100, 150, 200, 300, 500 microns |
| Retraction to pad | 0.5 mm |
| Planarity | +/- 0.025mm or better |
| Loads | (Low: 10-30g Medium: 30-60g High: 60-150g) |

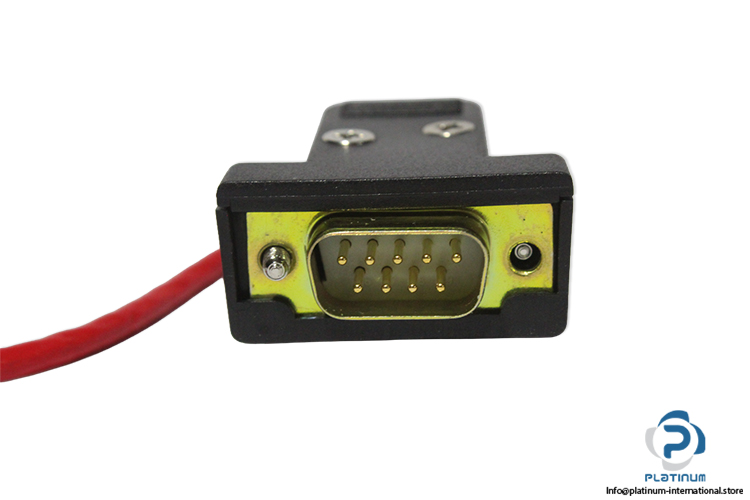

| Leads | 4-way screened cable, teflon insulated |
| Electrical leakage | 1013 ohms resistance between needles at 500 volts |
| Condition | New |
| Stock key | CON003 |
| SKU | 1093996 |
| Weight | 0,12 |
