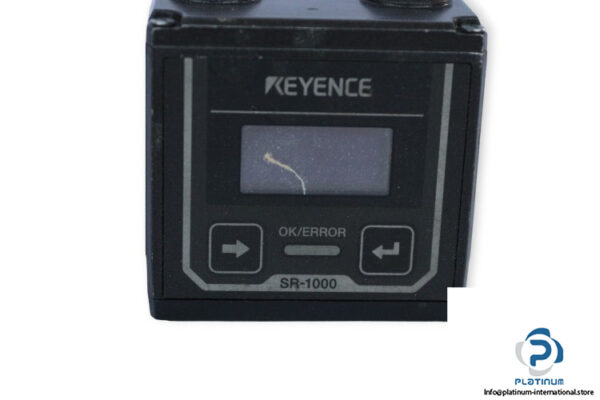

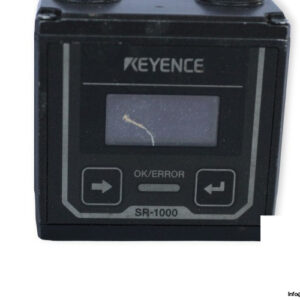

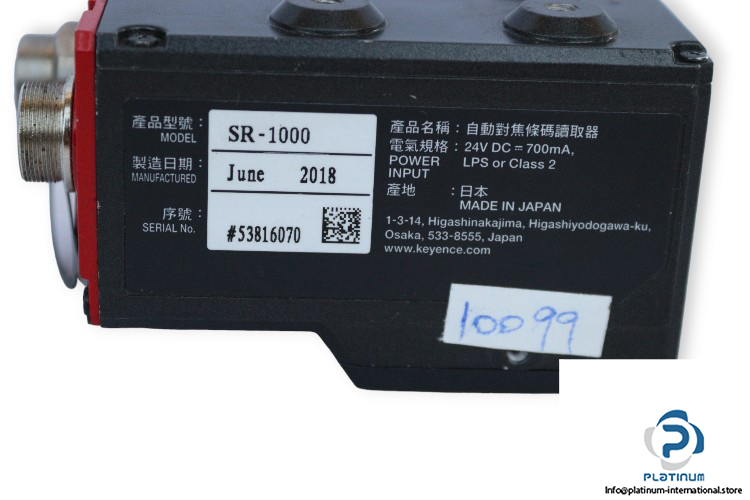

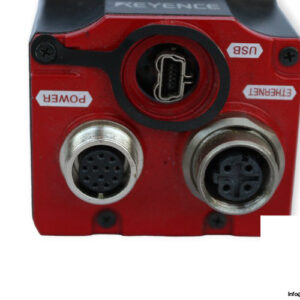

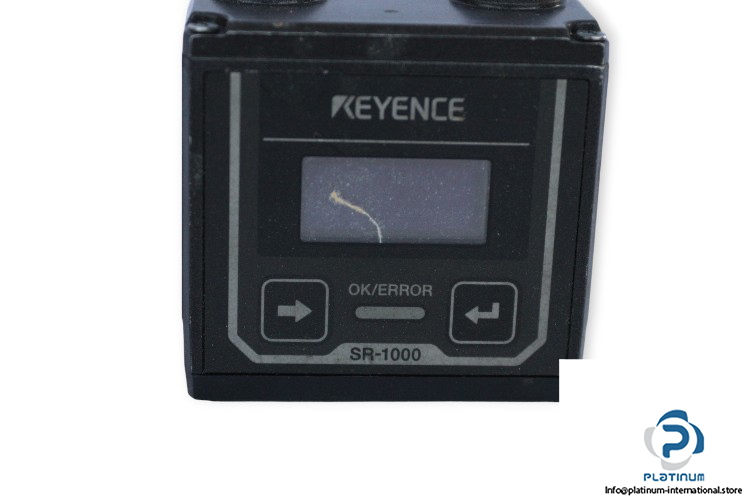

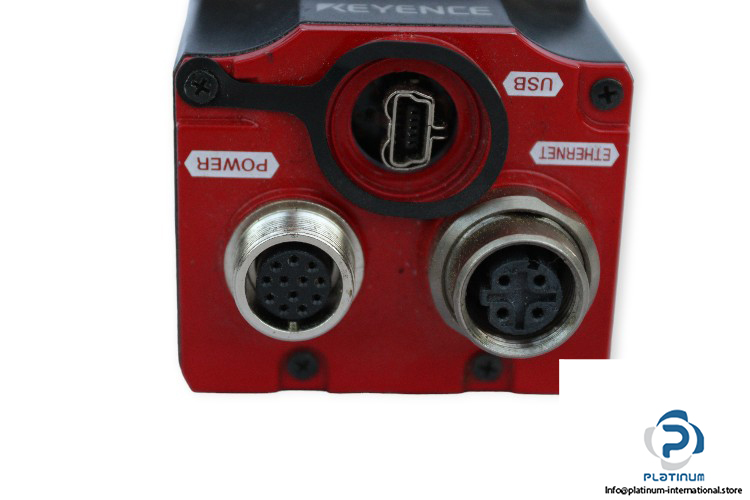

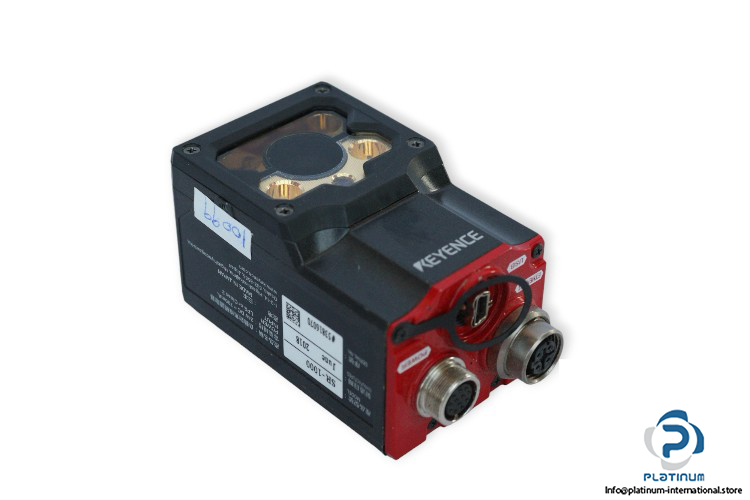

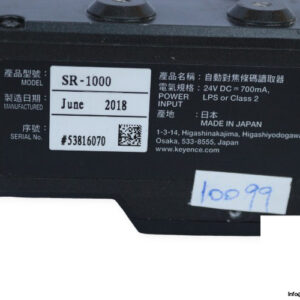

Keyence SR-1000 Code Reader

Manufacturer: Keyence
Type: Code Reader
Model: SR-1000/ SR1000/ SR 1000

Supply Voltage: 24 V DC
Current Consumption: 700 mA
Receiver Sensor: CMOS Image Sensor
Receiver No. of Pixels: 1280 × 1024 pixels
Focus adjustment: Autofocus
Minimum resolution: 2D: 0.063 mm, Barcode: 0.082 mm
Reading distance: 110 mm to 1000 mm
Number of inputs: 2
Input type: Bidirectional voltage input
Maximum rating: 26.4 VDC
Minimum ON voltage: 15 VDC
Maximum OFF current: 0.2 mA
Number of outputs: 3
Output type: Photo MOS relay output
Maximum rating: 30 VDC
Communication standard: RS-232C compliant
Operating Temperature: 0 … 45 °C
Degree of protection: IP65
Dimensions: 74 X 47 X 47.6 mm
