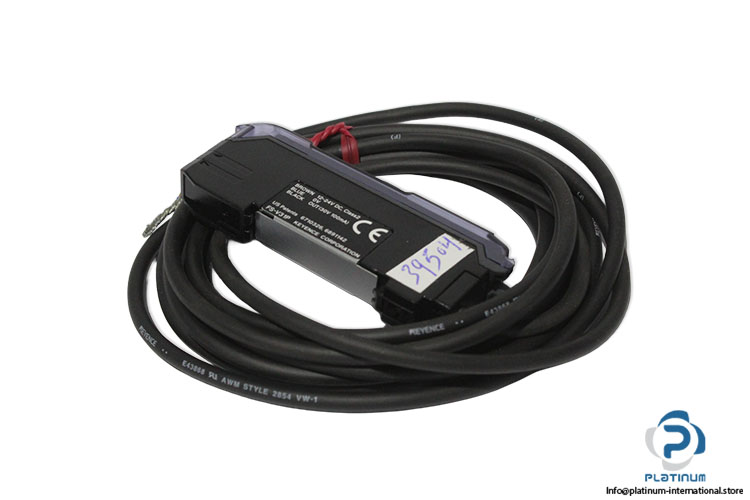

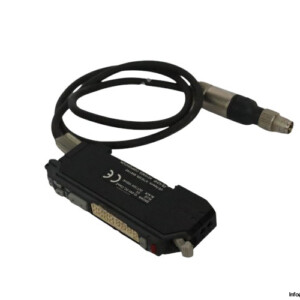

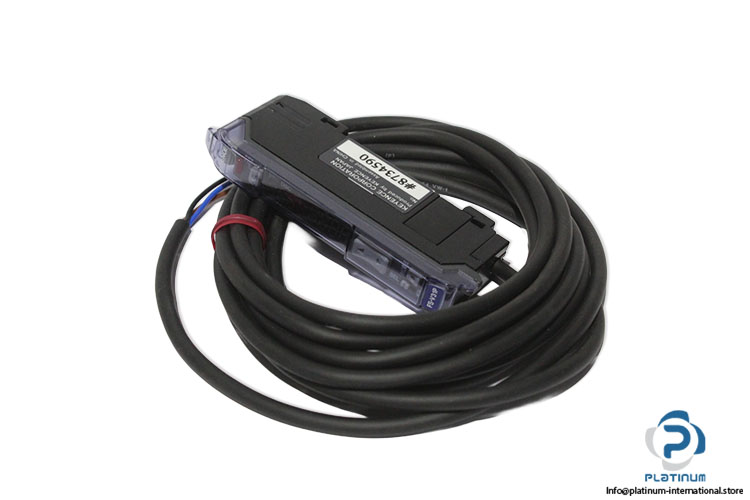

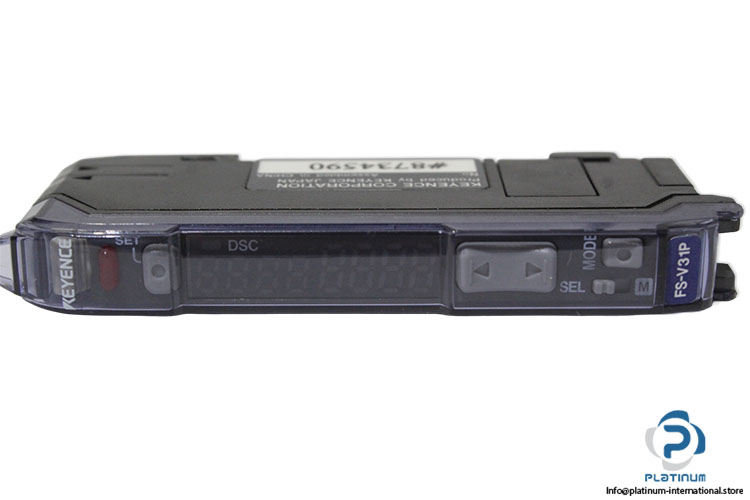

Keyence FS-V31P Fiber Amplifier
New
In stock2 unitsReady to ship
Fiber amplifier Keyence fiber amplifier with PNP output, fast response modes, red LED light source, and M8 connector for industrial sensing and automation applications.
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Class | 2 |
| Part No. | 6710326, 6891142 |

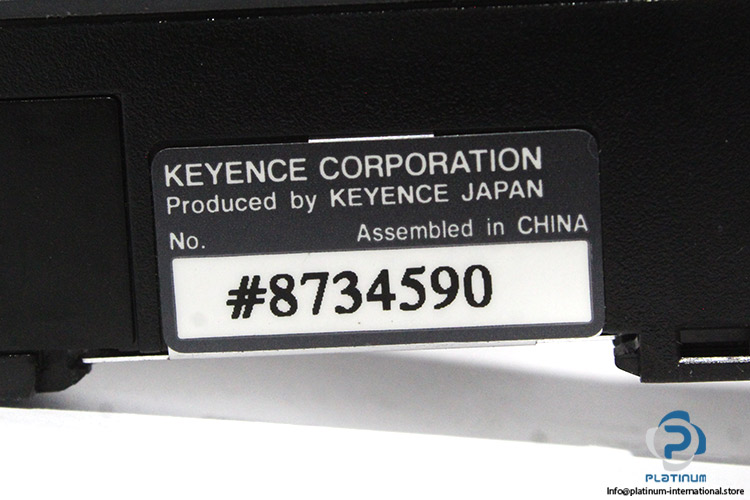

| Ref No | 8734590, 2063724, 33569, 080105-23-001, 208653 |

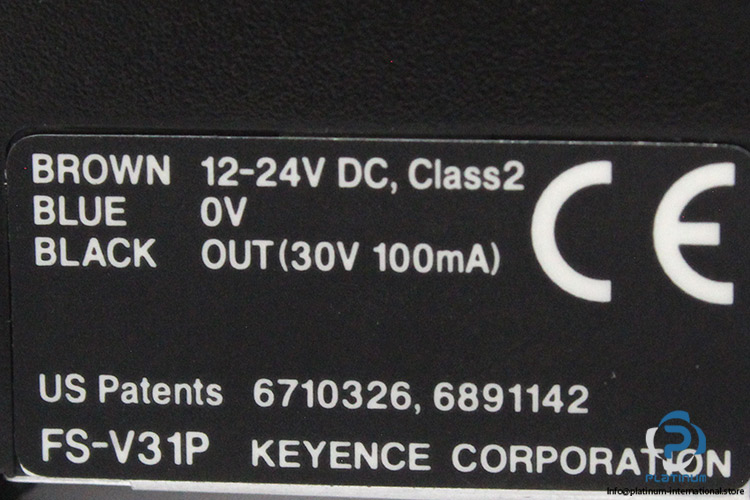

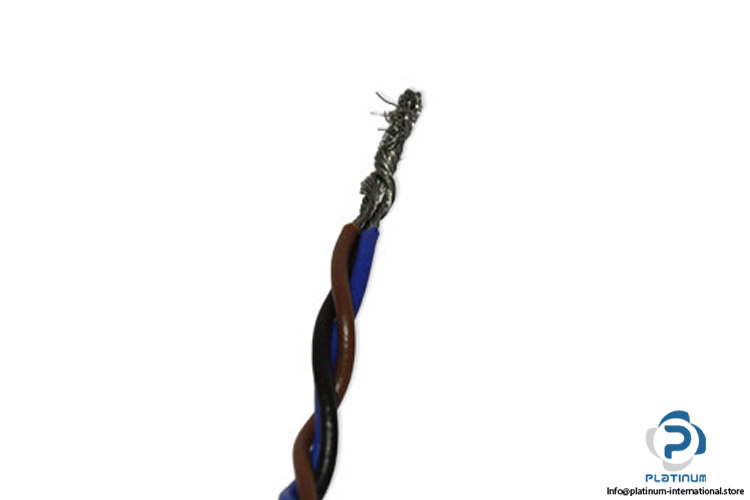

| Power Voltage | 12 to 24 V DC at brown, 0V at blue, 30 V at black |
| Output Current | 100 mA at black |
| Power Consumption (Normal) | 750 mW max |
| Control Output | PNP open-collector 24 V, 100 mA max. |
| Light Source (LED) | Red, 4-element LED (Wavelength: 640 nm) |
| Response Time | 33 µs (HIGH SPEED), 250 µs (FINE), 500 µs (TURBO), 1 ms (SUPER TURBO), 4 ms (ULTRA TURBO), 16 ms (MEGA TURBO) |
| Output Selection | LIGHT-ON/DARK-ON (switch-selectable) |
| External Input | Input time: 2 ms (ON), 20 ms (OFF) min |
| Case Material | Polycarbonate |
| Connector | M8 |
| Ambient Temperature | -10 to +55°C |
| Dimensions | 30.3 x 9.8 x 71.8 mm |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100925 |
| Weight | 0,11 |
