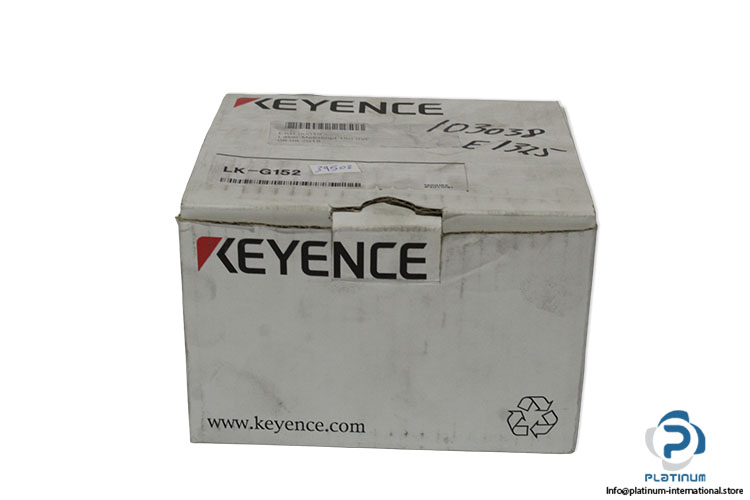

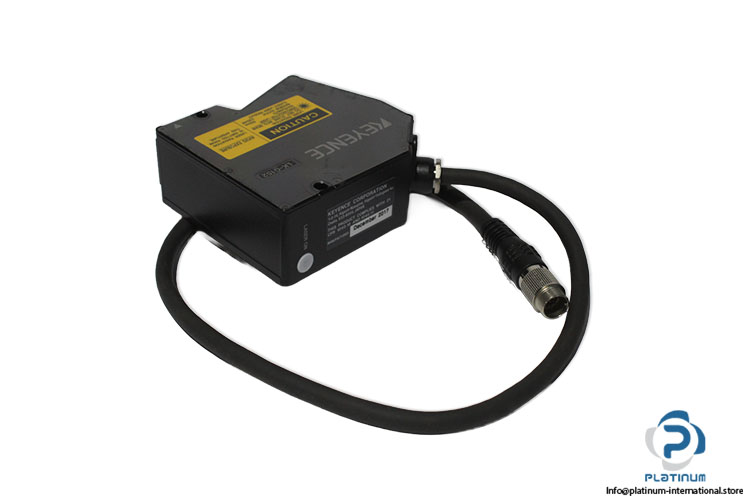

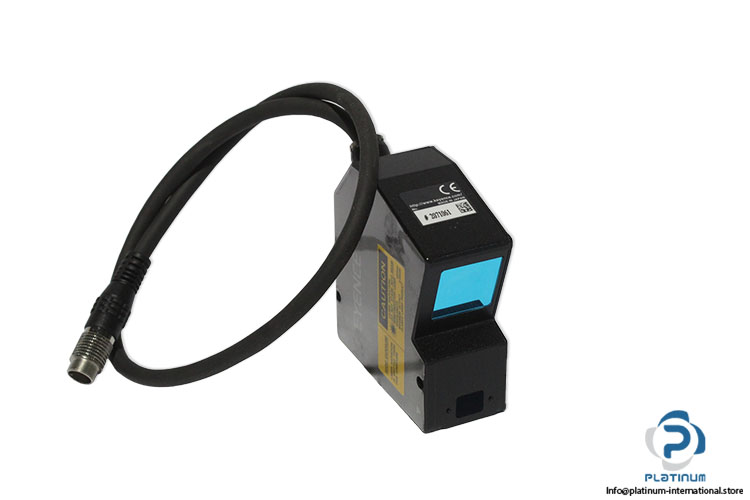

KEYENCE LK-G152 Small-Spot Sensor Head
New
In stock1 unitReady to ship
Laser Sensor Head KEYENCE LK-G152 long-distance small-spot sensor head for precise non-contact measurement, featuring 0.5 µm repeatability, high-speed sampling, and IP67 protection.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

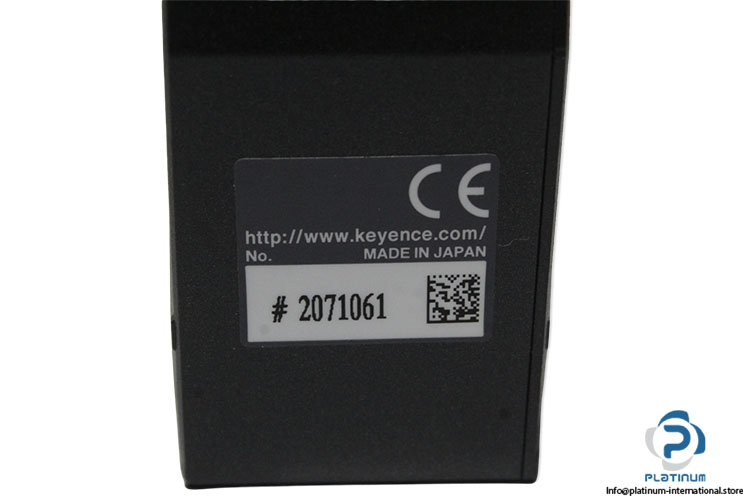

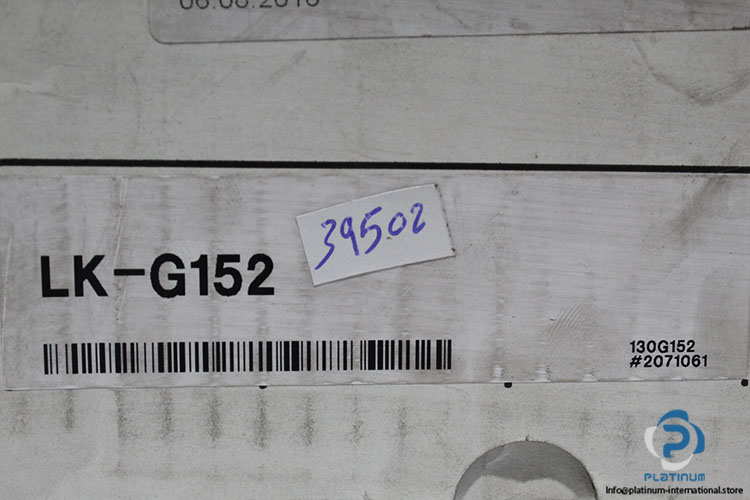

| Ref No | 2071061, 130G152,2071061 |
| Reference distance | Diffused reflection: 150 mm 5.91", Specular reflection: 147.5 mm 5.81" (Specular reflection) |
| Measuring range | Diffused reflection: ±40 mm ±1.57", Specular reflection: ±39 mm ±1.54"*1*2 |
| Light source Type | Red semiconductor laser |
| Wavelength | 655 nm (visible light) |
| Laser Class | Class II (FDA CDRH 21CFR PART1040.10) |
| Output | 0.95 mW |
| Spot diameter (at reference distance) | Approx. :120 microm |
| Linearity | ±0.05 % of F.S. |
| Repeatability | 0.5 µm |
| Sampling frequency | 20 / 50 / 100 / 200 / 500 / 1,000 µs (Selectable from 6 levels) |
| LED display | Near the center of the measurement: Green lights |
| ,Within the measurement area | Orange lights,Outside the measurement area: Orange flashing,Temperature characteristics:0.01 % of F.S./°C (F.S.= ±40 mm ±1.57") |
| Enclosure rating | IP67 (IEC60529) |
| Ambient light | Incandescent lamp or Fluorescent lamp: 5,000 lux max. |
| Ambient temperature | 0 to +50 °C |
| Relative humidity | 35 to 85 % RH (No condensation) |
| Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions |
| Material | Aluminum die-cast |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100923 |
| Weight | 0,40 |
