Keyence SZ-VU32N Network Type Display Unit
New
In stock1 unitReady to ship
Network Type Display Unit The Keyence SZ-VU32N is a network type display unit designed for Keyence safety laser scanners, featuring a 24 V DC supply, LCD display with navigation keys, IP65 protection, adjustable response time, and compliance with international functional safety standards.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

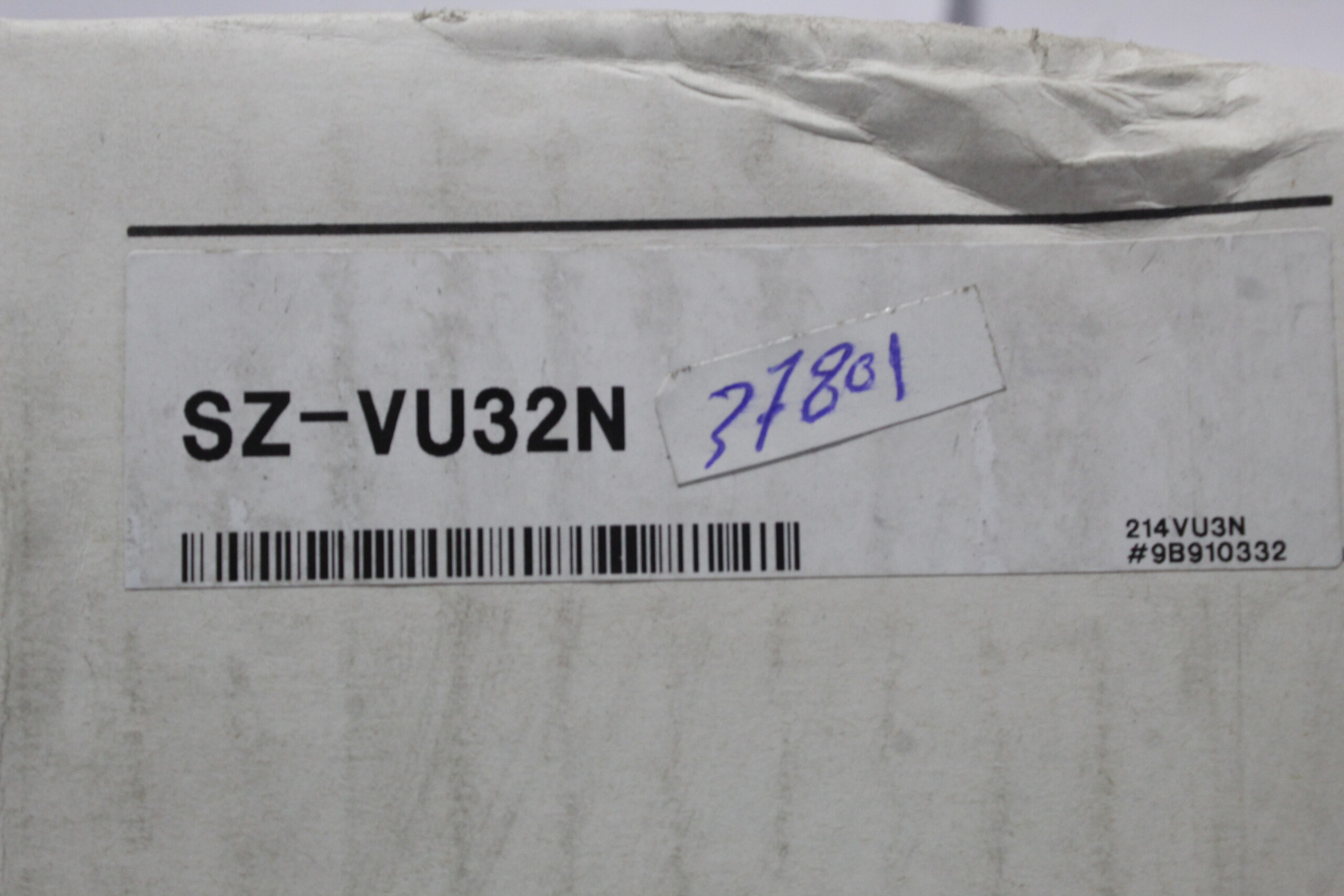

| Code | 214VU3N |
| Part No. | 9B910332 |
| Supply Voltage | 24 V DC |
| Rated Power Consumption | Max. 50.8 W (with load) |
| Response Time (Adjustable) | Min. 80 ms / 160 ms |
| Protection Distance | Max. 5.7 m / 8.4 m |
| Detectable Object Size | 20 mm through 150 mm |
| OSSD Output Current | Max. 500 mA (PNP / NPN) |
| Auxiliary Output Current | Max. 50 mA |
| Enclosure Rating | IP65 |
| Ambient Operating Temperature | -10°C to +50°C |
| Safety Standards | IEC 61496 Type 3, IEC 61508 SIL2, GB19436.3 Type 3, GB/T 20438.1 SIL2 |

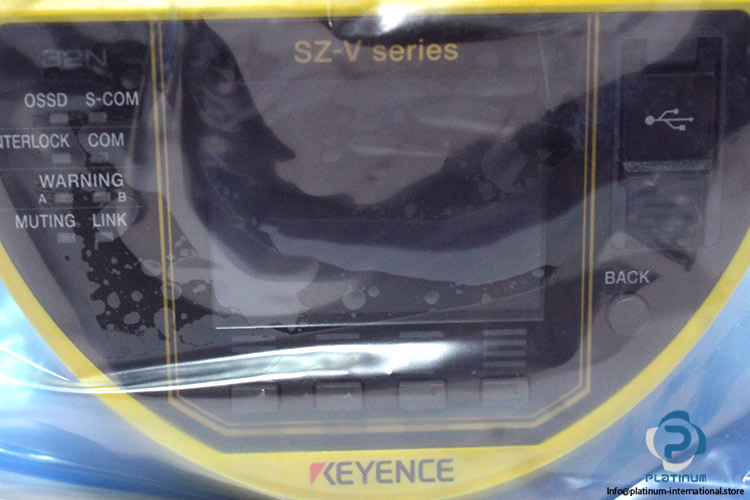

| Display | LCD Display with Navigation Keys |
| Certificate | cULus, CE, TUV |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1098184 |
| Weight | 0,84 |
