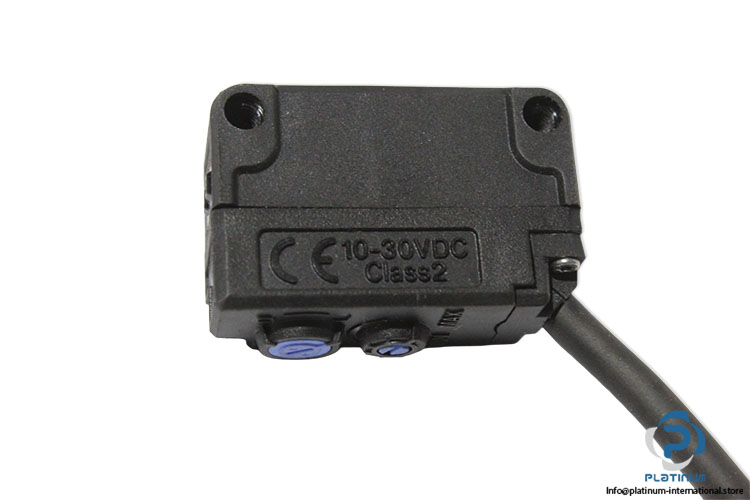

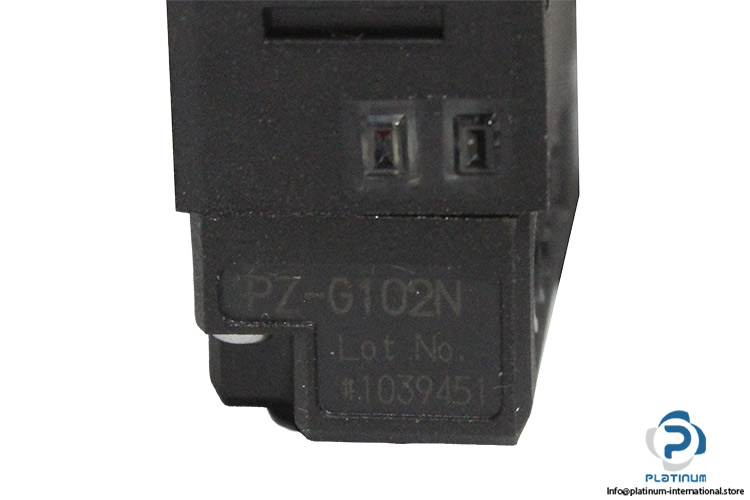

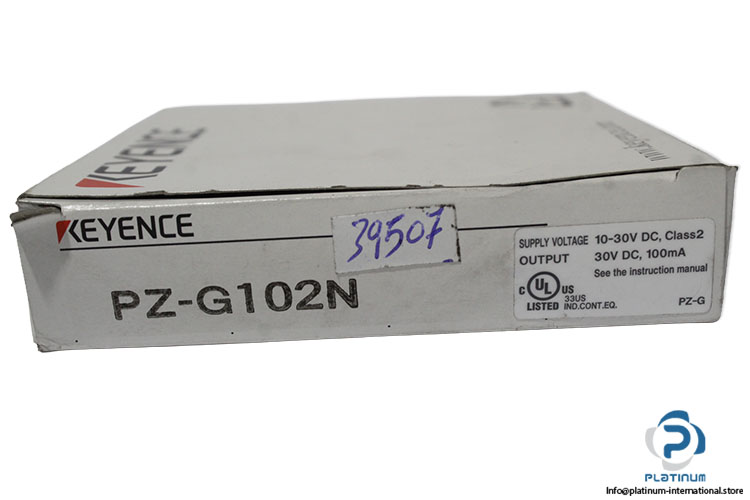

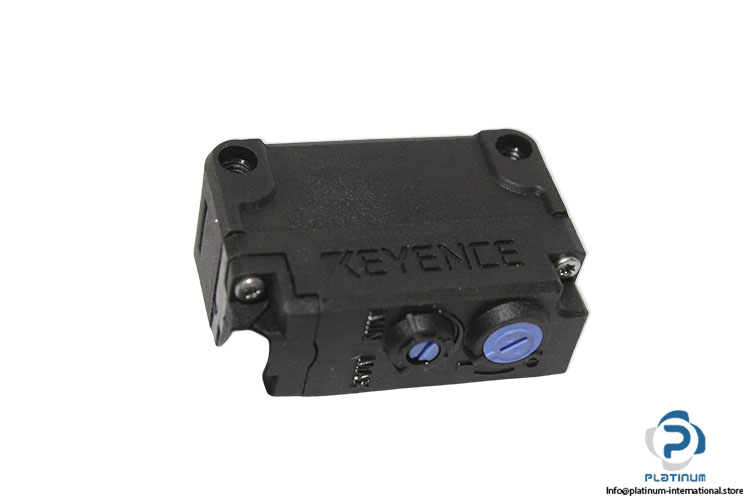

KEYENCE PZ-G102N Square Reflective Sensor
| Ref No | 1039451 |
| Definite | reflective |
| Shape | Rectangular |
| Output | NPN |

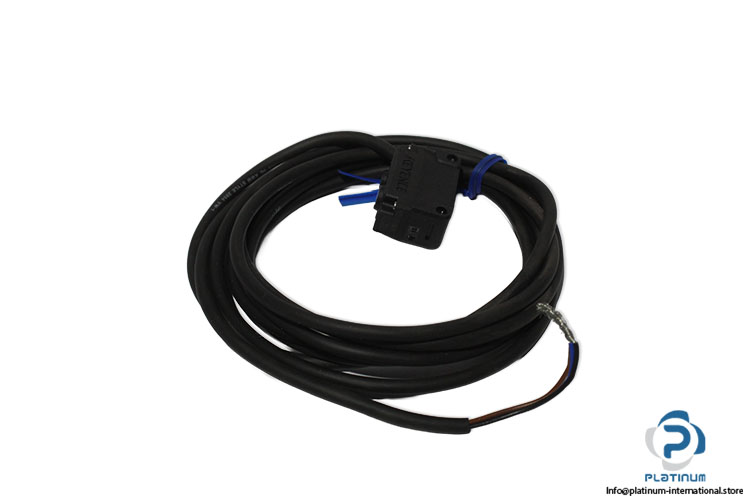

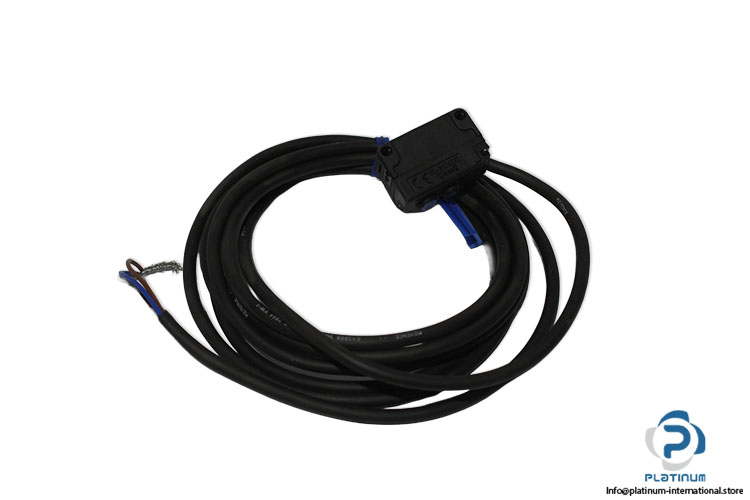

| Cable connection | Cable (2 m 78.74") |
| Detecting distance | 5 to 45 mm |
| Spot diameter | Approx. 2 mm |
| Light source | Red LED |
| Sensitivity adjustment | 1-turn trimmer (230°) |
| Response time | 500 µs |
| Operation mode | LIGHT-ON/DARK-ON (switch-selectable) |
| Indicators (LED) | Output: Orange LED,Stable operation: Green LED |
| Control output | Open collector output, 30 V max., 100 mA max., Residual voltage: 1 V max. |
| Protection circuit | Reversed polarity, overcurrent protection, surge absorber |
| Tightening torque | 0.5 N m max. |
| Power voltage | 10 to 30 VDC, including Ripple (P-P) 10 % |
| Class | 2 |
| Current consumption | 34 mA or less |
| Enclosure rating | IEC: IP67/NEMA: 4A, 6, 12/DIN: IP69K |
| Ambient light | Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max. |
| Ambient temperature | -20 to +55 °C |
| Relative humidity | 35 to 85 % RH (No condensation) |
| Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions |
| Shock resistance | 1,000 m/s2, 6 times in each of the X, Y, and Z directions |
| Material | Housing, M18 nut,Glass-fiber reinforced PBT |
| Lens cover | Polyarylate (PAR) |
| Trimmer | Glass-fiber reinforced polyamide (PA) |
| Screw | Nickel-plated iron and zinc, packing: nitrile butadiene rubber (NBR) |

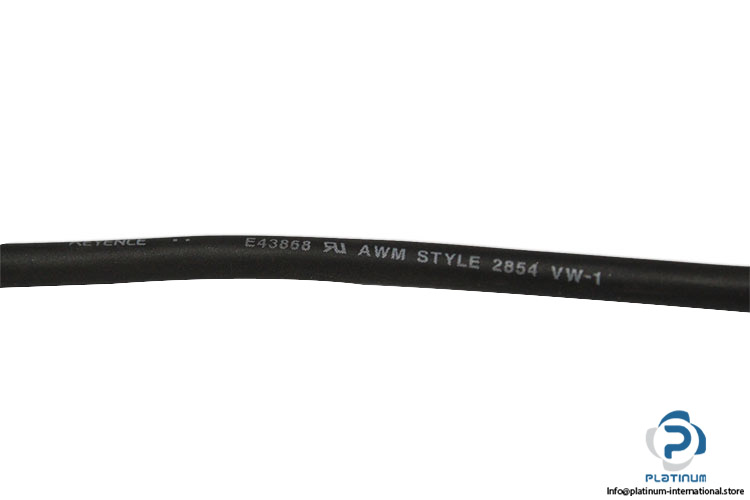

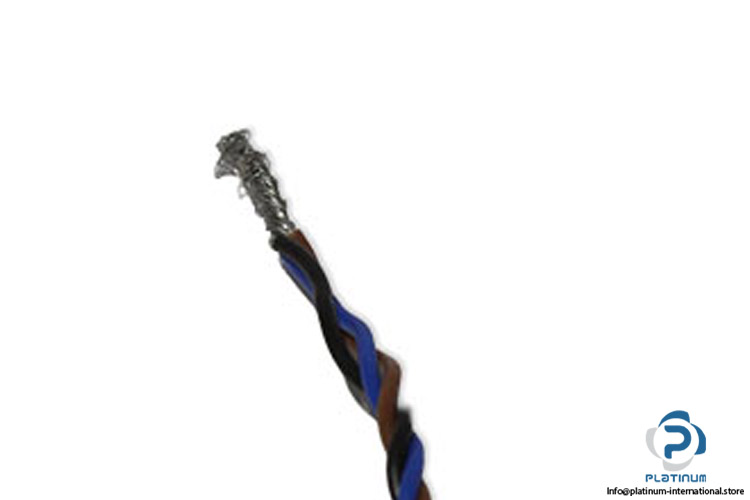

| Cable | Polyvinyl chloride (PVC) |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100928 |
| Weight | 0,08 |
