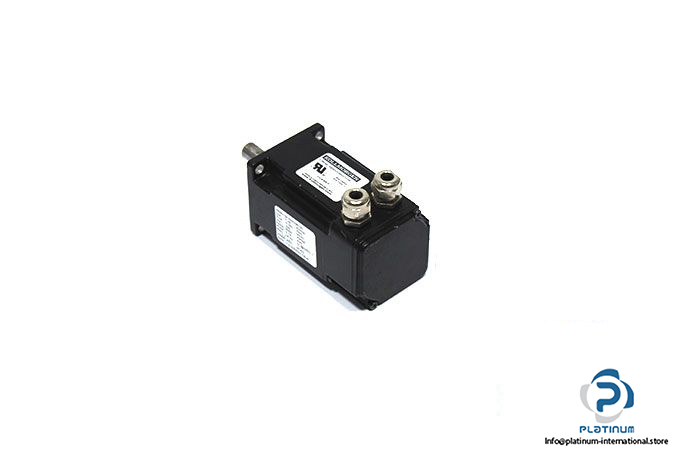

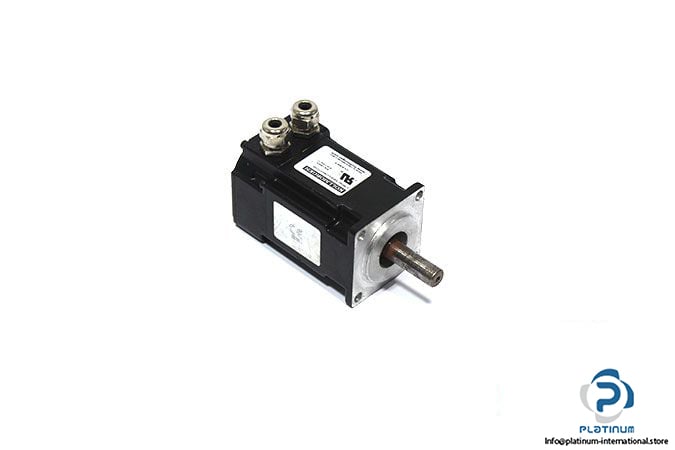

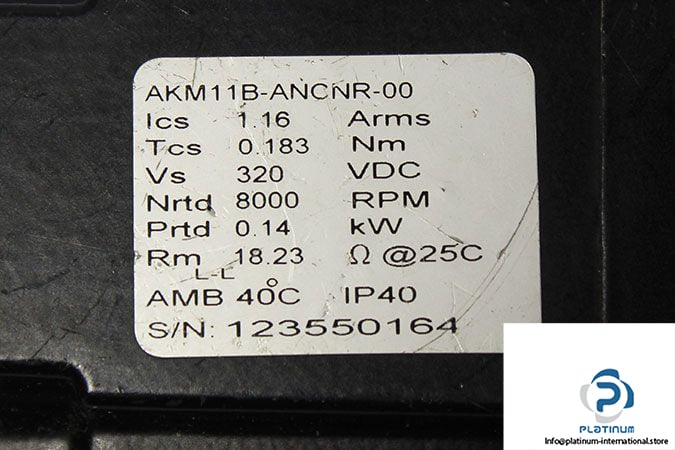

Kollmorgen AKM11B-ANCNR-00 Servo Motor

Manufacturer: Kollmorgen

Type: Servo Motors

Model: AKM11B-ANCNR-00

Rated Power [kW]: 0.14

Rated Resistance [Ω]: 18.23

Max. Rated Voltage [VDC]: 320

Continuous Stall Torque [Nm]: 0.183

Continuous Stall Current [A]: 1.16

Max Mechanical Speed [rpm]: 8000

Peak Torque [Nm]: 0.609

Peak Current [A]: 4.65

Protection Class [IP]: 40

Ambient Temperature [°C]: 40

Thermal Class: F

Weight [kg]: 0.33
