Koyo Ucfc 207 J Round Flange Ball Bearing Unit
New
In stock1 unitReady to ship
Round Flange Ball Bearing Unit
The Koyo UCFC207 J Round Flange Ball Bearing Unit, featuring the UC207 bearing and FC207 housing, ensures precision, durability, and reliability in demanding industrial applications.35AlignmentBallbearingboreCapacitydiameterFC207FlangeHighHousingIndustrialJKoyoLoadmmPrecisereliableRoundUC207UCFC207Unit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Koyo UCFC207 J Round Flange Ball Bearing Unit
The Koyo UCFC207 J Round Flange Ball Bearing Unit is a reliable and durable solution for industrial applications. Featuring the UC207 bearing and FC207 housing, this unit delivers exceptional performance, stability, and precision in demanding environments.
Manufacturer: Koyo
Type: ROUND FLANGE BALL BEARING UNIT
Model: UCFC207 J
The Koyo UCFC207 J Round Flange Ball Bearing Unit is designed for applications requiring robust construction, precise alignment, and reliable load-bearing capacity. It is ideal for industrial systems that demand high performance and efficiency.

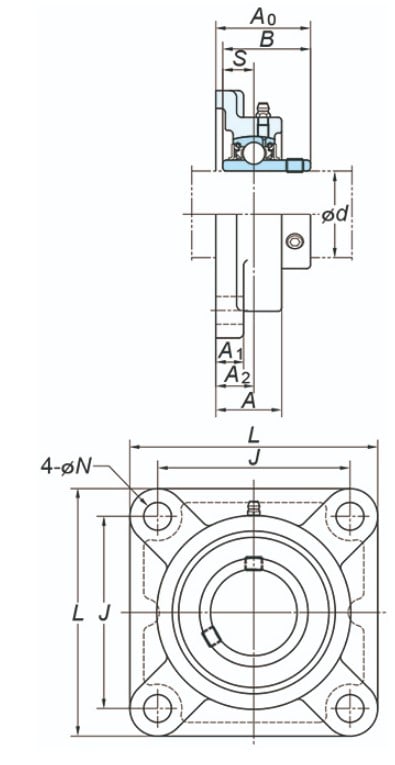

| Bearing Number | UC207 |
| Housing Number | FC207 |
| Bore Diameter (d) | 35 mm |
| Outside Diameter (L) | 117 mm |
| Distance Between Attachment Bolts (J) | 92 mm |
| Length of Attachment Bolt Hole (N) | 14 mm |
| Width of Inner Ring (B) | 42.9 mm |
| A | 34 mm |
| A1 | 15 mm |
| A0 | 44.4 mm |
| Basic Load Rating (Dynamic Cr) | 25.7 kN |
| Basic Load Rating (Static C0r) | 15.4 kN |
| Fatigue Load Limit | 0.700 kN |
