Bearings Housing Units Plummer Block Housing Units

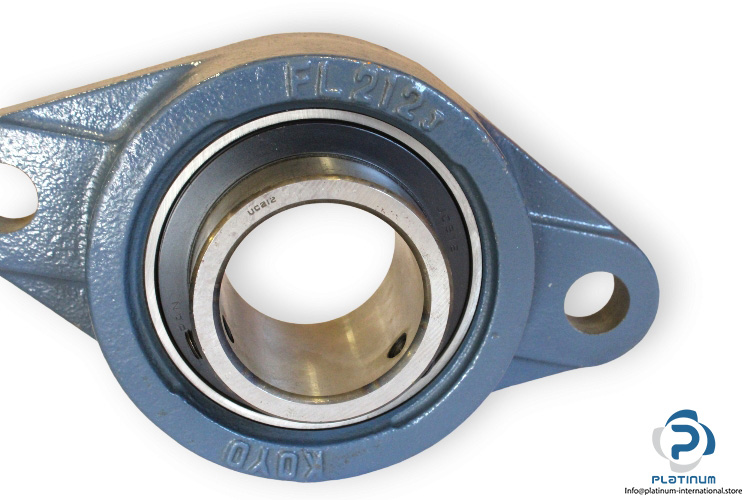

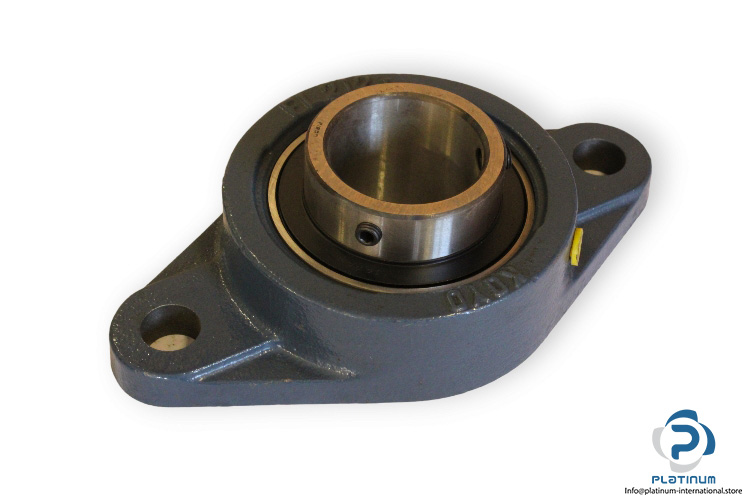

Koyo Ucfl 212 Oval Flange Ball Bearing Unit

Name: KOYO UCFL 212 OVAL FLANGE BALL BEARING UNIT
SKU: 1005260
Availability: LimitedAvailability

koyo-UCFL-212-oval-flange-ball-bearing-unit-(new)-1

koyo-UCFL-212-oval-flange-ball-bearing-unit-(new)-2

New

In stock1 unitReady to ship

Manufacturer:

Koyo

Type:

Oval flange ball bearing unit

Model:

UCFL 212

Bearing designation:

UC212

Housing:

FL212

Manufacturer

KOYO ?

SKU

1005260

Category

Plummer Block Housing Units

Condition

New

60 bearing bearings flanged Housing Koyo mm Oval Two-Bolt Unit Units Žhousing

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: Koyo
Type: Oval flange ball bearing unit
Model: UCFL 212
Bearing designation: UC212
Housing: FL212

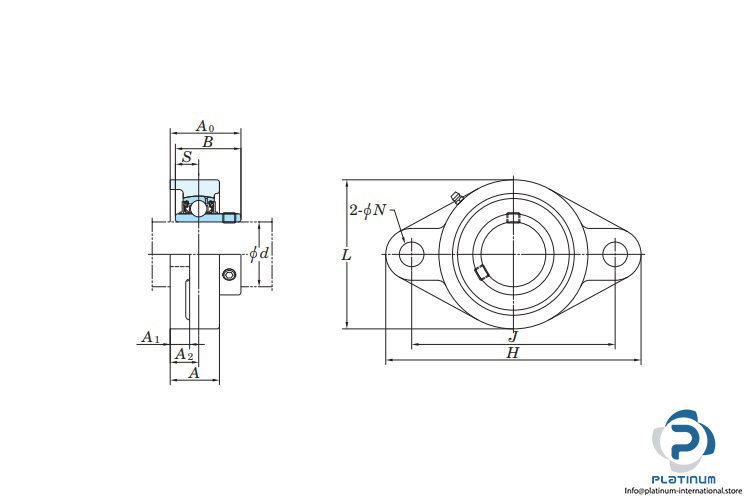

Dimensions
Bore Diameter d: 60 mm
Overall Length L: 140 mm
Width of inner ring B: 65.1 mm
Overall Height H: 250 mm
Distance Between Attachment Bolts J: 202 mm
Overall unit width A0: 68.7 mm
Basic load rating:
Dynamic Cr: 52400 N
Static C0r: 36200 N
fatigue load limit: 1650 N
Mounting: Oval Flange
Locking device: Set Screw
Bore type: Round
