Koyo UCT 203 J Take UP Ball Bearing Unit
New
In stock2 unitsReady to ship
Take-Up Ball Bearing Unit
The Koyo UCT 203 J Take-Up Ball Bearing Unit features the durable T 204 housing and UC 203 bearing, providing precise alignment, stability, and performance for industrial systems.17203204AlignmentBallbearingCapacityCastdiameterHighHousingIndustrialIronJKoyoLoadmmPrecisionrobustshaftTTake-upUCUCTUnit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

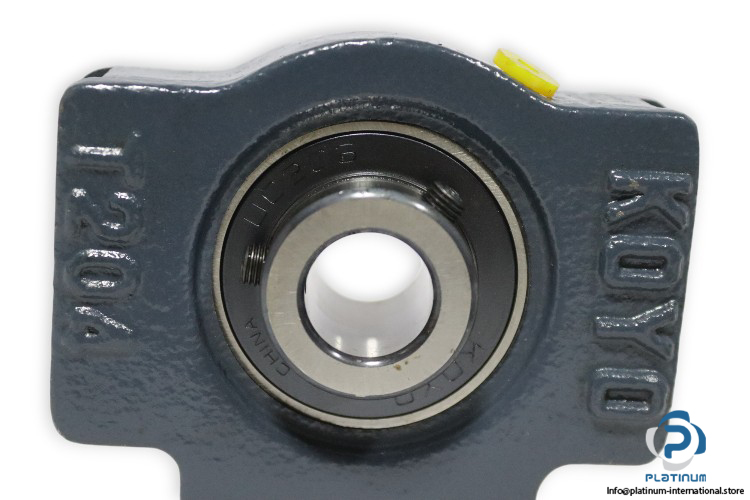

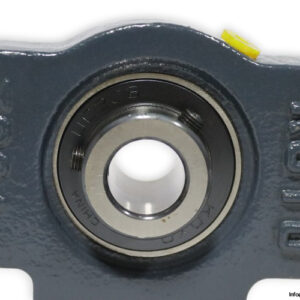

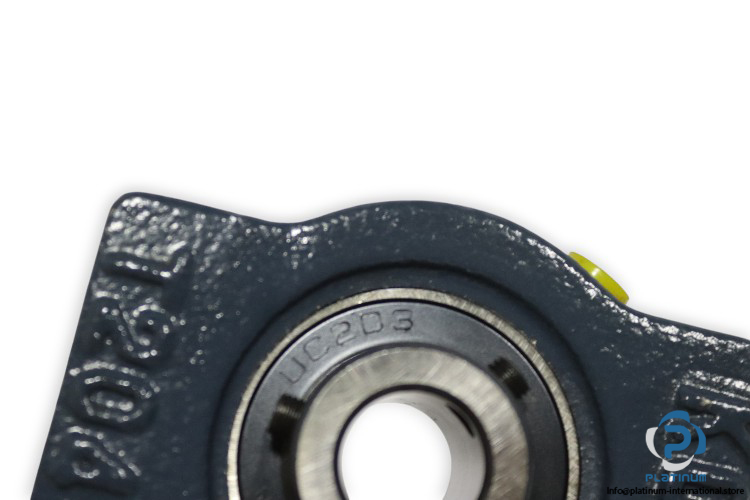

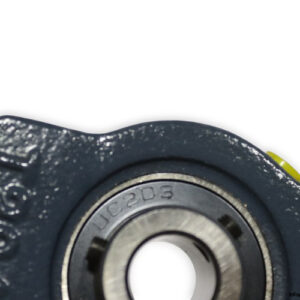

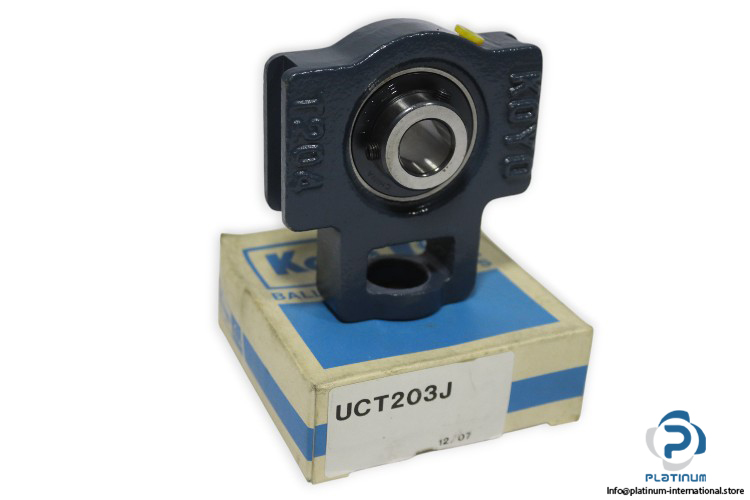

Koyo UCT 203 J Take-Up Ball Bearing Unit
The Koyo UCT 203 J Take-Up Ball Bearing Unit is a durable and precision-engineered component designed for industrial applications. Built with the robust T 204 housing and UC 203 bearing, this unit provides excellent performance, stability, and reliability in demanding environments.
Manufacturer: Koyo
Type: TAKE UP BALL BEARING UNIT
Model: UCT 203 J
Basic Load Ratings:
The Koyo UCT 203 J Take-Up Ball Bearing Unit is an ideal choice for industrial machinery requiring robust, precise, and reliable performance.
| Housing No. | T 204 |
| Bearing No. | UC 203 |
| Shaft Diameter (d) | 17 mm |
| Overall Width (A) | 32 mm |
| Width of Inner Ring (B) | 31 mm |
| Width of Piloting Groove (A1) | 12 mm |
| Overall Height (H) | 89 mm |
| Height of Attachment End (H2) | 51 mm |
| Overall Length (L) | 94 mm |
| Diameter of Attachment Bolt Hole (N) | 19 mm |
| Length of Attachment Slot (N1) | 16 mm |
| Height of Attachment Slot (N2) | 32 mm |
| Length of Piloting Groove (L3) | 51 mm |
| Dynamic | 12.8 kN |
| Static | 6.65 kN |
| Fatigue Load Limit | 0.302 kN |
| Housing Type | Take-up |
| Material, Housing | Cast Iron |
