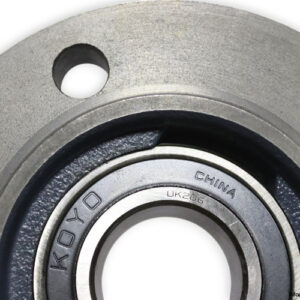

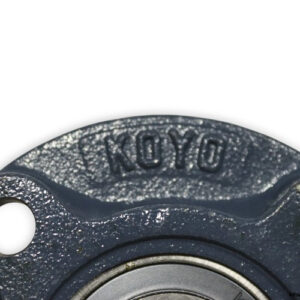

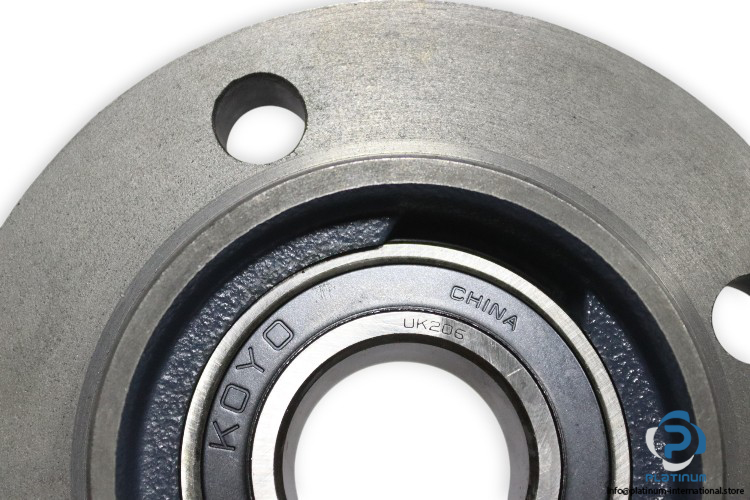

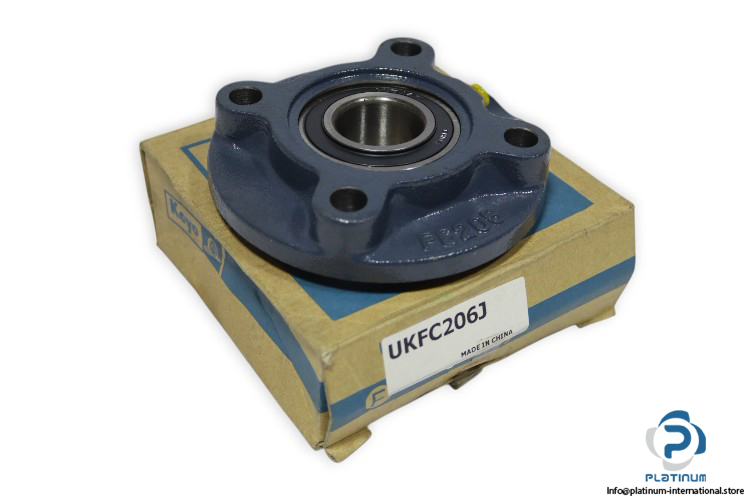

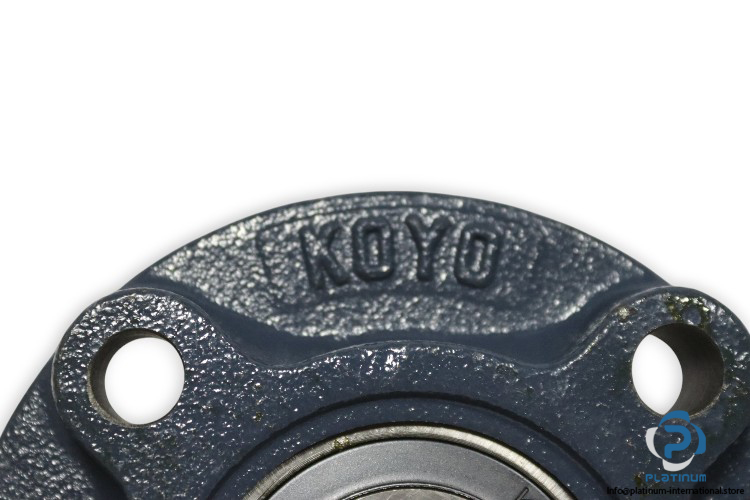

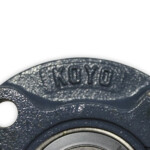

Koyo Ukfc 206 J Round Flange Ball Bearing Unit
Koyo UKFC206 J Round Flange Ball Bearing Unit, 25 mm bore, 19.5 kN dynamic load, tapered bore, cast iron housing, M10 bolt size, for industrial use.
Koyo UKFC206 J Round Flange Ball Bearing Unit
The Koyo UKFC206 J Round Flange Ball Bearing Unit is a high-quality bearing unit designed for reliable and durable performance in industrial applications. With a bore diameter of 25 mm and a housing material of cast iron, this bearing unit is built to withstand significant dynamic loads of up to 19.5 kN. It features a tapered bore type and a locking device using a set screw for secure attachment. The unit€™s compact design, with a total width of 31.5 mm, allows for easy installation in various machinery setups.
🔧 Technical Specifications:
- Manufacturer: Koyo
- Type: Round Flange Ball Bearing Unit
- Model: UKFC206 J
- Bearing Number: UK 206

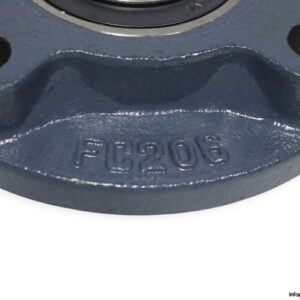

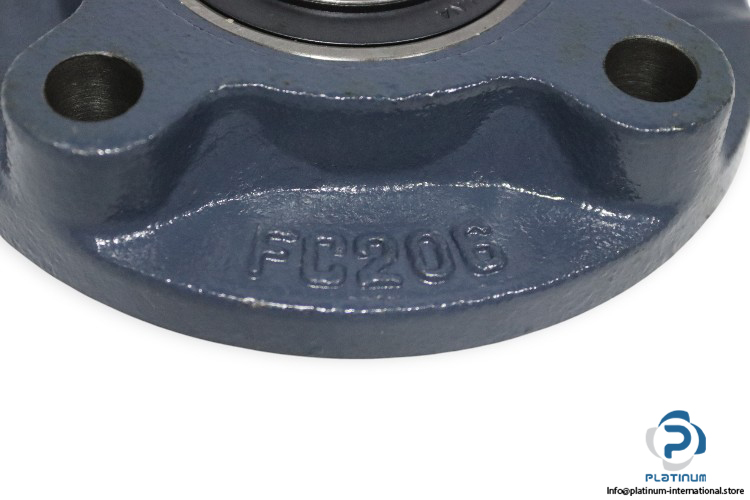

- Housing Number: FC 206
- Bore Diameter: 25 mm
- Outside Diameter: 125 mm
- Distance Between Attachment Bolts (J1): 70.7 mm
- Pitch Diameter of Attachment Bolts (J): 100 mm
- Length of Attachment Bolt Hole (N): 12 mm
- Width of Inner Ring (B): 38 mm
- Overall Width (A4): 31.5 mm
- Dynamic Load Rating (Cr): 19.5 kN
- Static Load Rating (C0r): 11.3 kN
- Fatigue Load Limit: 0.514 kN
- Locking Device: Set Screw
- Bore Type: Tapered
- Housing Material: Cast Iron
- Bolt Size: M10
Designed for high-load, long-lasting performance, the Koyo UKFC206 J bearing unit is suitable for a variety of applications, ensuring smooth and efficient machinery operation.
