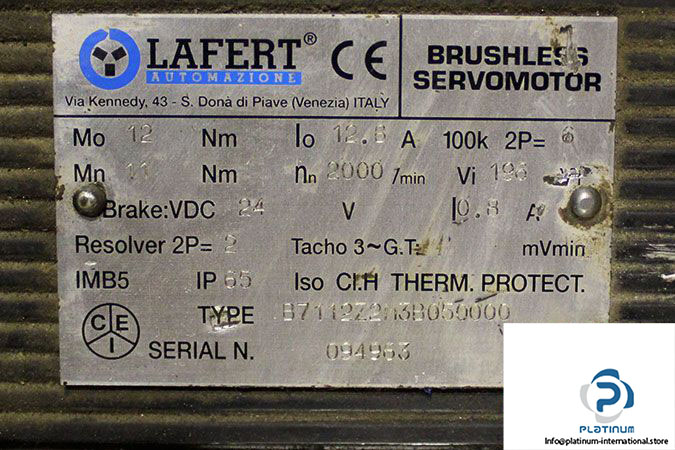

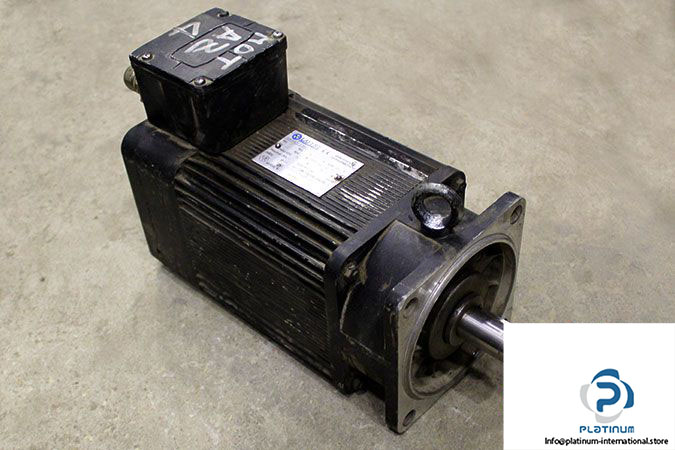

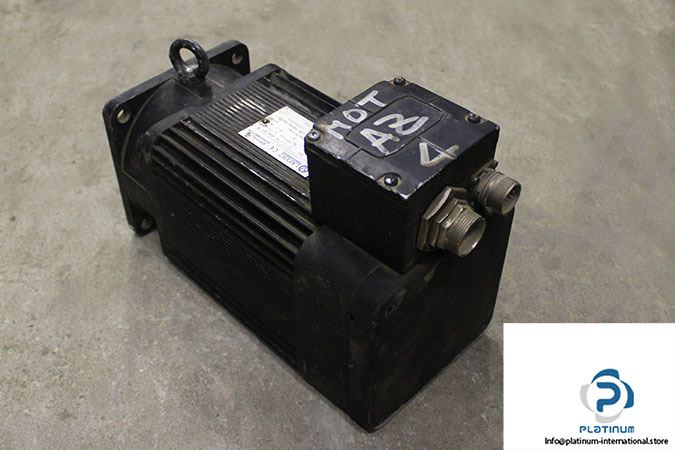

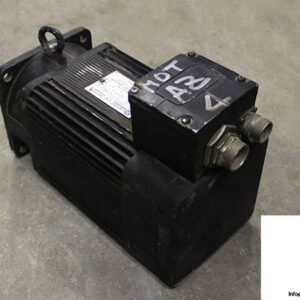

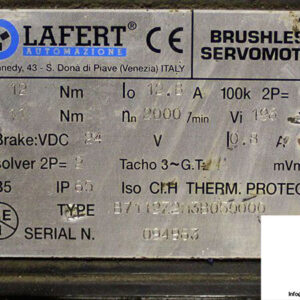

Lafert B7112Z2M3B050000 Brushless Servo Motor

Manufacturer: Lafert

Type: Brushless Servo Motor

Model: B7

Stall Torque: 12 Nm

Rated Torque: 11 Nm

Stall Current: 12.8 A

Rated Voltage: 196 V

Rated Speed: 2000 rpm

Air Gap: 0.25…0.5 mm

Brake Size: 12 MV

Brake Voltage: 24 VDC

Brake Current: 0.8 A

Degree of Protection: 65

Insulation Class: H

Mounting Position: B5

Resolver 2P: 2

Weight: 15.13 kg
