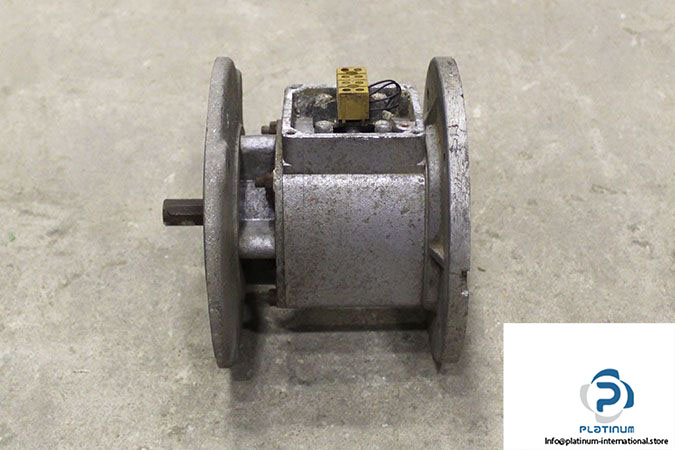

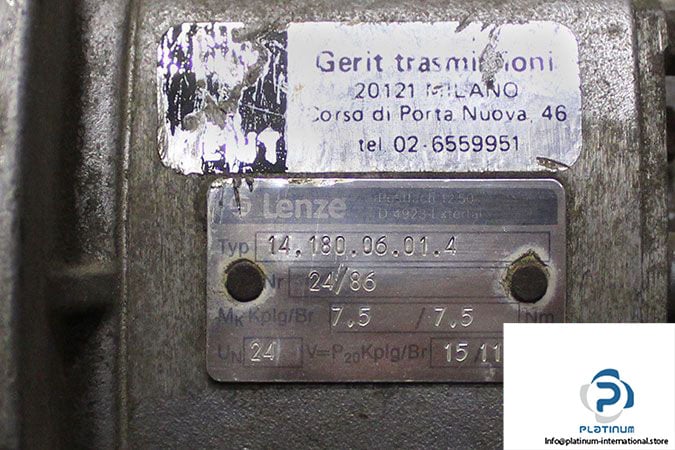

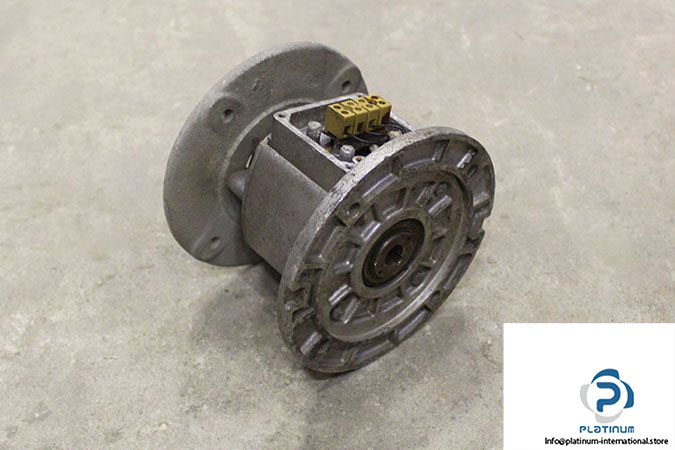

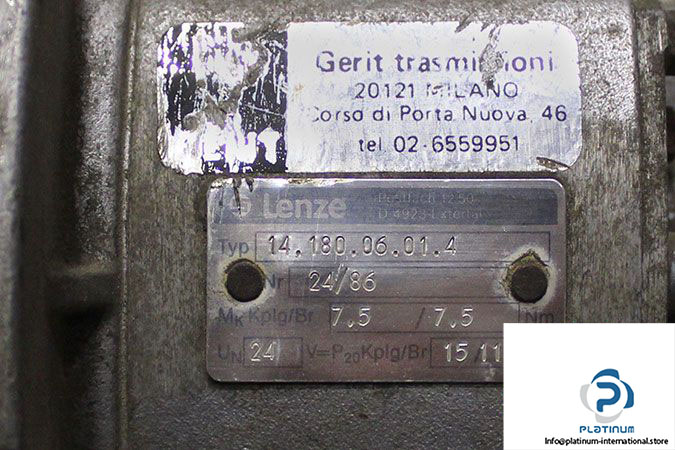

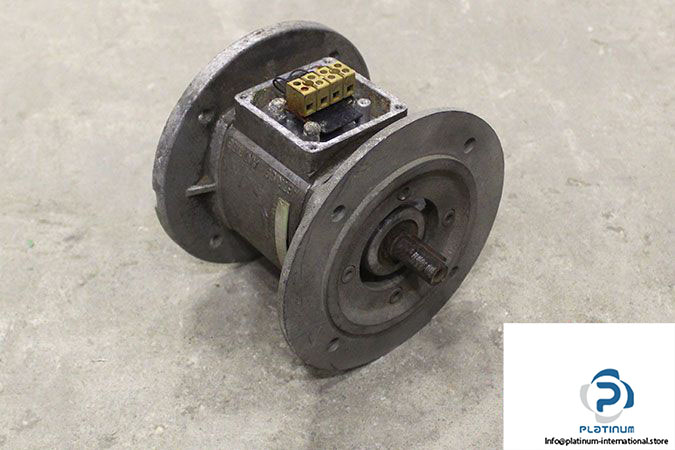

Lenze 14.180.06.01.4 Clutch Brake
Manufacturer: Lenze / Intorq
Type: Clutch Brake
Model: 1418006014
Size: 06
Output-End Version: 01
Drive-End Version: 4
Rated Voltage: 24 VDC
Torque Clutch: 7.5 Nm
Torque Brake: 7.5 Nm
Power Clutch: 15 W
Power Brake: 11.5 W
Max. Speed: 3000 rpm
Max. Permissible Switching Energy: 3.6 x 103 J
Shaft Diameter: 14 mm
Flange Diameter: 160 mm
Weight: 3.6 kg
