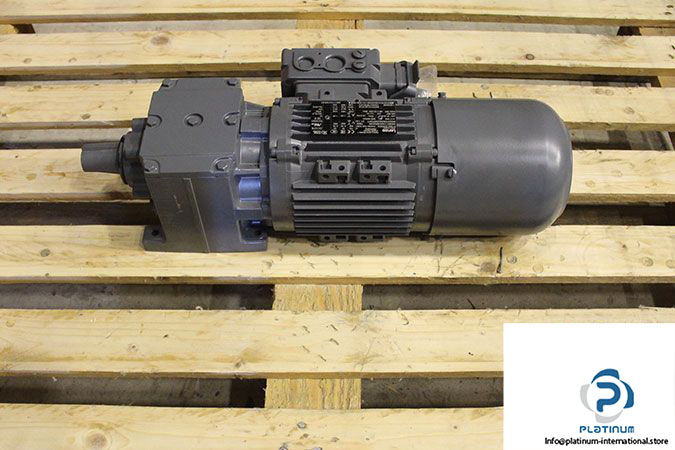

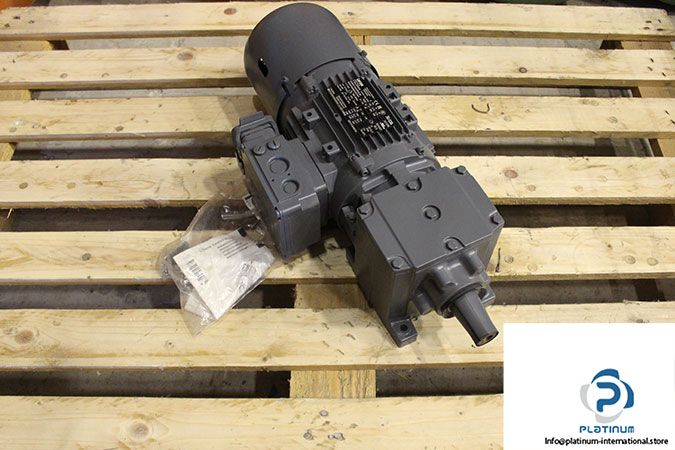

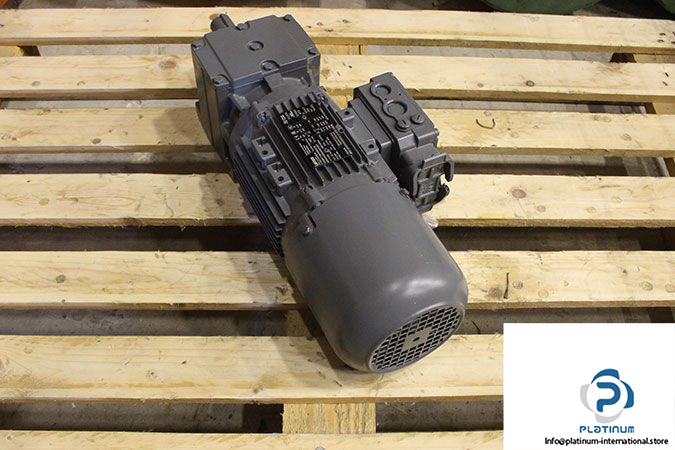

Lenze G50BH114MVBR2C00 Gear Motor

Manufacturer: Lenze

Type: Gear Motors

Model: G50BH114MVBR2C00

Total Ratio [i]: 17.802

Rated Speed [r/min]: 81.5

Rated Torque [Nm]: 85

Motor Model: M55AP080M045EF0WT

Frequency [Hz]: 50/60

Rated Power [kW]: 0.75/0.75

Motor Voltage [V] / Conn. Type: 400/460 Star

Motor Current [A]: 1.6/1.46

Rated Speed [r/min]: 1450/1758

Efficiency [ ]: 82.5/0.77

Power Factor: 0.80/0.77

Load Capacity [C]: 1.64

Brake Type: 08N

Brake Voltage [VDC]: 180

Brake Power [W]: 25

Brake Torque [Nm]: 8

Ambient Temperature [°C]: 40

Efficiency: IE3 Premium Efficiency

Duty: S1

Insulation Class: F

Protection Class [IP]: 54

Weight [kg]: 21.7
