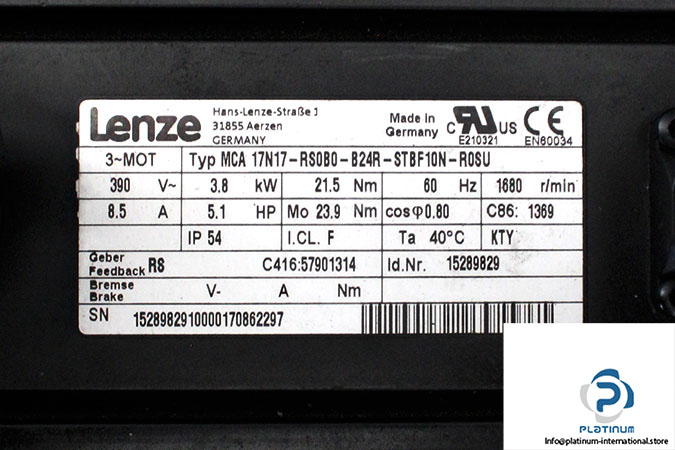

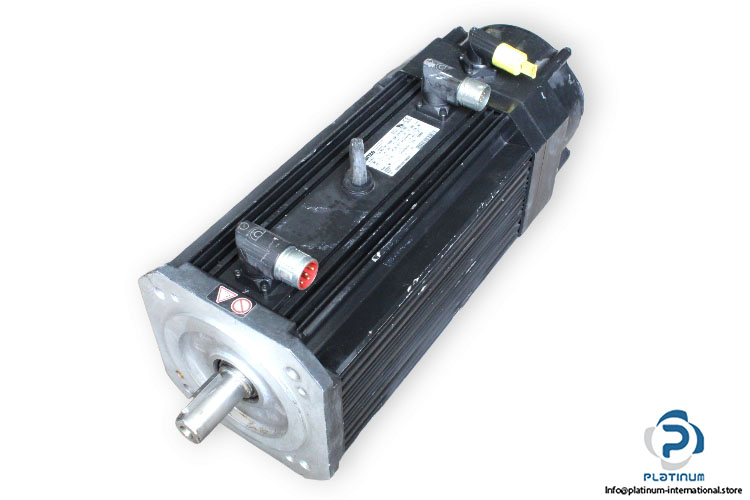

Lenze MAC 17N17-RS0B0-B24R-STBF10N-R0SU AC Servo Motor

Manufacturer: Lenze
Type: AC Servo Motor
Model: MAC17N17-RS0B0-B24R-STBF10N-R0SU

Rated Power [kW]: 3.8
Rated Voltage [V]: 390
Rated Speed [rpm]: 1680
Rated Current [A]: 8.5
Stall Torque [Nm]: 23.9
Rated Torque [Nm]: 21.5
Frequency [Hz]: 60
Power Factor: 0.80
Insulation Class: F
Protection Class [IP]: 54

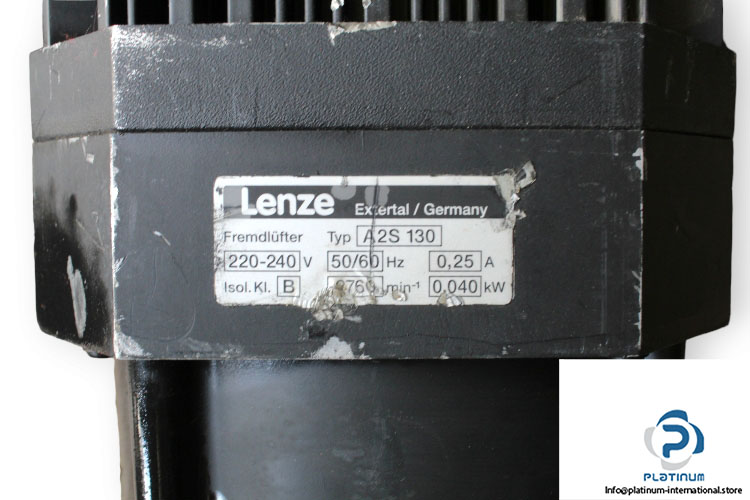

Attachment: LENZA A2S 130 FAN
Manufacturer: Lenze
Type: Fan
Model: A2S130
Rated Voltage [V]: 220-240
Rated Power [kW]: 0.040
Rated Current [A]: 0.25
Frequency [Hz]: 50/60
Rated Speed [rpm]: 2760
Insulation Class: B
Weight [kg]: 23,74
