Leuze Electronic MLD 510-R2 Light Beam Safety Device Receiver
New
In stock4 unitsReady to ship
Multiple Light Beam Safety Device Receiver
LEUZE ELECTRONIC MLD510-R2 safety device receiver from the MLD500 series with 2 beams, 24 V DC supply, PNP transistor output, IP67 protection, and operating range up to 50 m for industrial safety applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

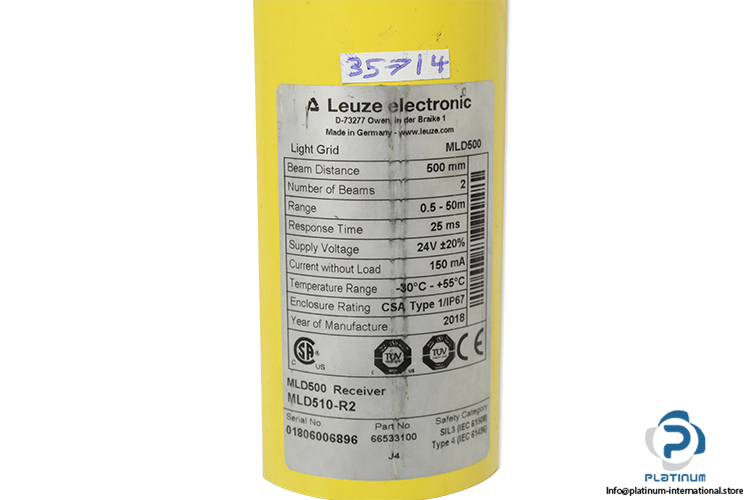

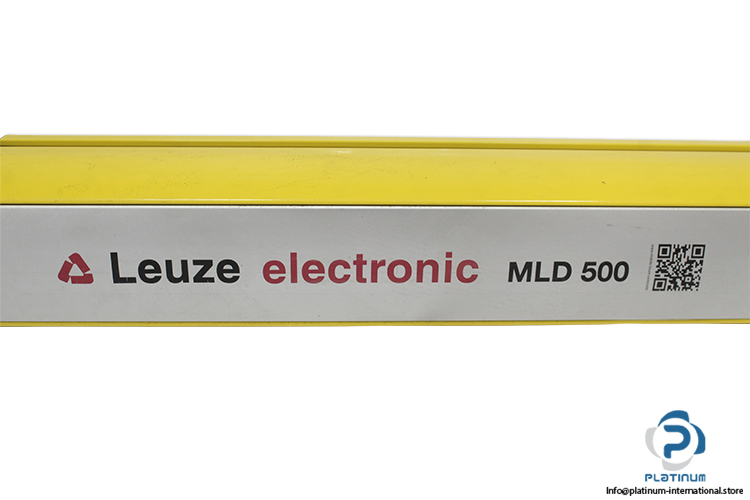

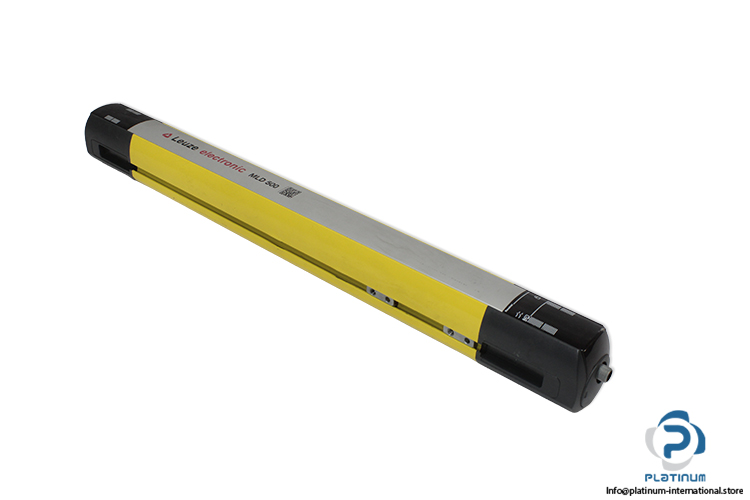

LEUZE ELECTRONIC MLD 510-R2 Multiple Light Beam Safety Device Receiver
The LEUZE ELECTRONIC MLD510R2 is a multiple light beam safety device receiver from the MLD500 series, designed for industrial safety applications. It is engineered for reliable protection beam monitoring and single-beam deflection in safety light beam systems.
Manufacturer: LEUZE ELECTRONIC
Type: Multiple Light Beam Safety Device Receiver
Model: MLD510-R2
Part No.: 66533100
Serial No.: 01806006896
| Series | MLD500 |
| Function | Deflecting Mirror For Single-Beam Deflection Of The Protection Beam Of Safety Light Beams |
| Beam Distance | 500 mm |
| Beams Number | 2 |
| Operating Range | 0.5 ... 50 m |
| Supply Voltage | 24 V DC |
| Current Consumption Max. | 150 mA |
| Switching Element | Transistor, PNP |
| Material | Aluminum |

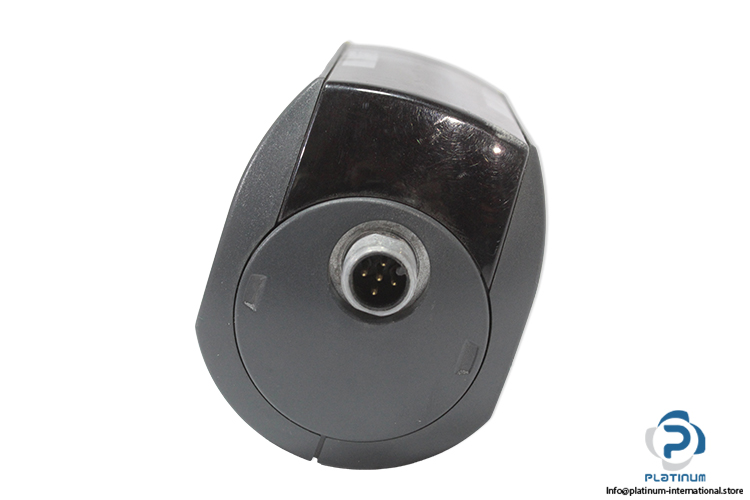

| Connection Type | Connector M12 5-Pin |
| Protection Class | IP67 |
| Ambient Temperature | -30 ... 55 °C |
| Dimensions | 52 x 600 x 64.7 mm |
