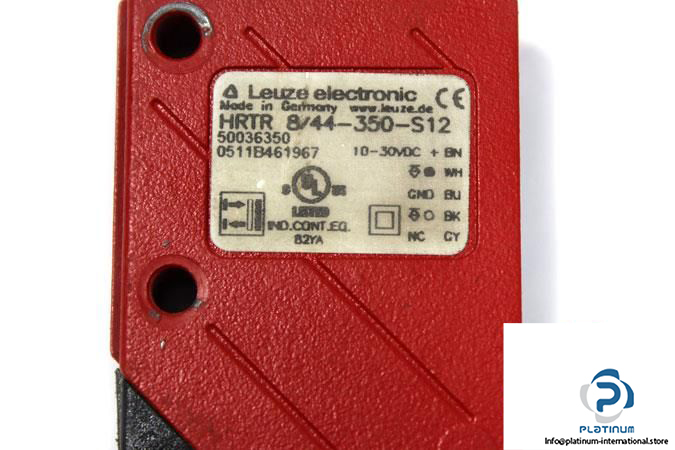

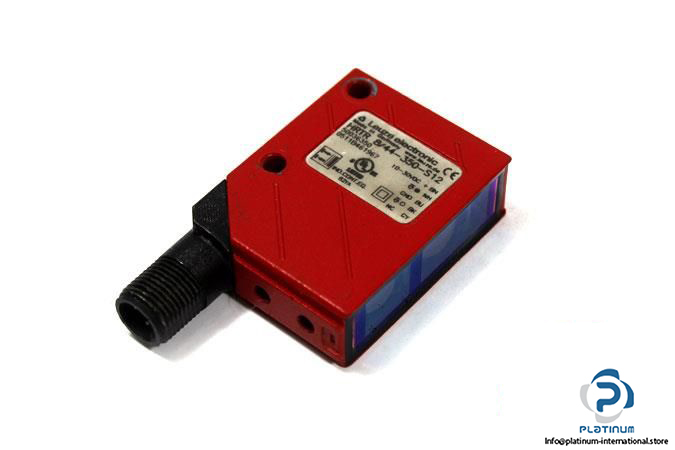

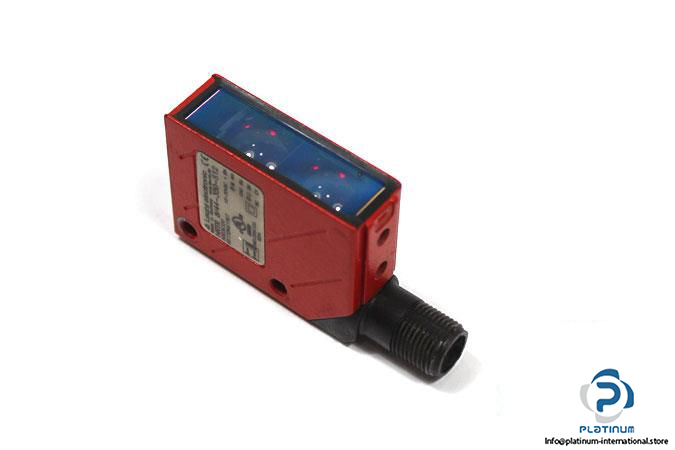

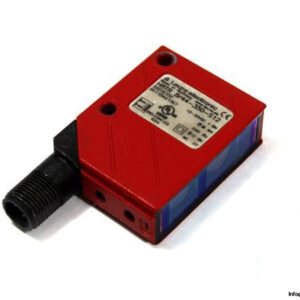

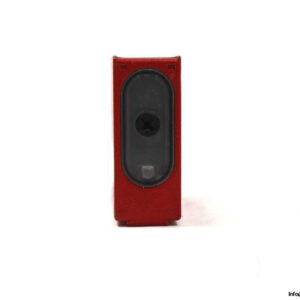

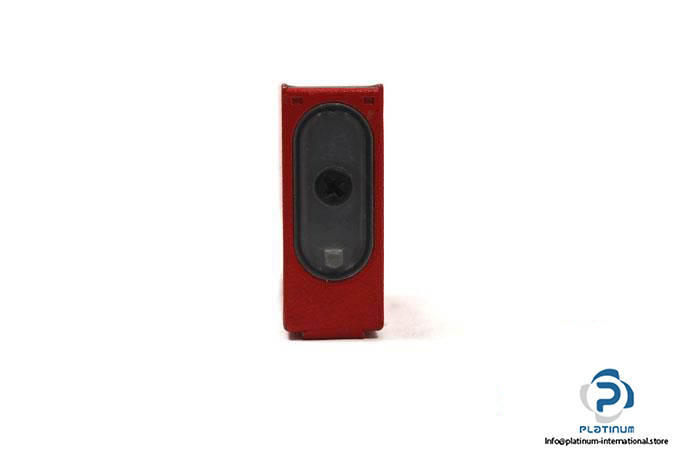

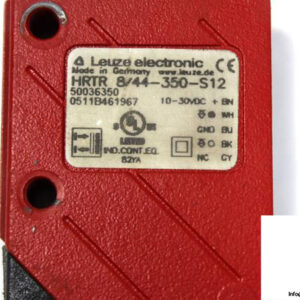

Leuze Hrtr 8/44-350-S12 Photoelectric Diffuse Sensor

Manufacturer: LEUZE

Type: PHOTOELECTRIC DIFFUSE SENSOR, BACKGROUND SUPPRESSION

Order Code: HRTR 8/44-350-S12

Part No: 50036350

Operating range: 7 … 400 mm

Delay before start up: 100 ms

Response time: 0. 33 ms

Operating Voltage: 10 … 30 V DC

Output Current: 100 mA

Switching frequency: 1000 Hz

Electrical design: PNP

Switching output: Light switching

Light source: LED

Wave length: 660 nm (visible red light)

Adjustment: Potentiometer

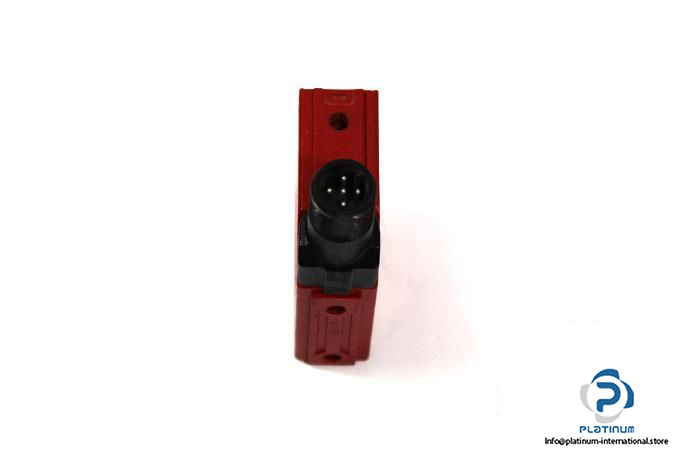

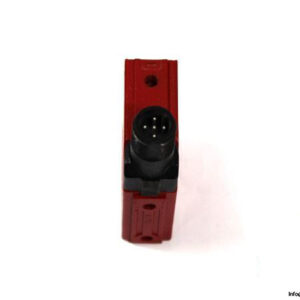

Connector type: M12 connector, 5-pin

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -40 …60°C

Dimensions: 38 x 15 x 48 mm

Housing: Rectangular

Housing material: Metal,Zinc

Lens cover material: Glass
