Leuze IVBR/4-50-750-00-S8 Light Curtain Receiver
499,99$
Light curtain receiver with 750mm monitoring height, 16 beams, 50mm resolution, and 24VDC supply voltage. Designed for parallel detection and light switching applications in industrial environments. IP54 rated and operates in temperatures between -10 to 45°C.

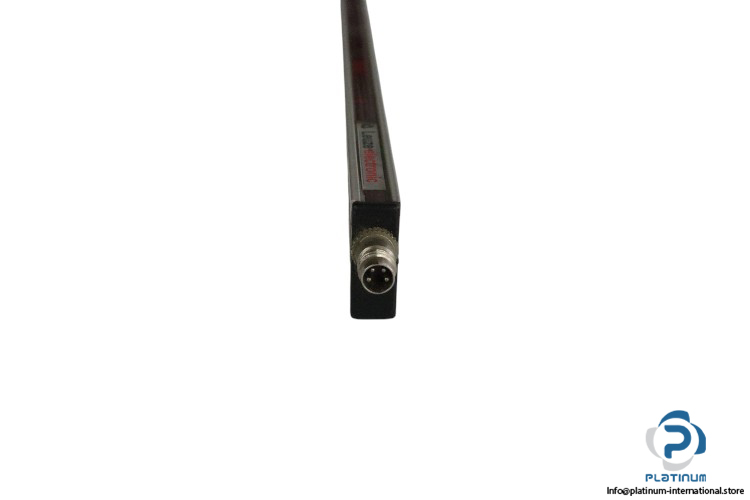

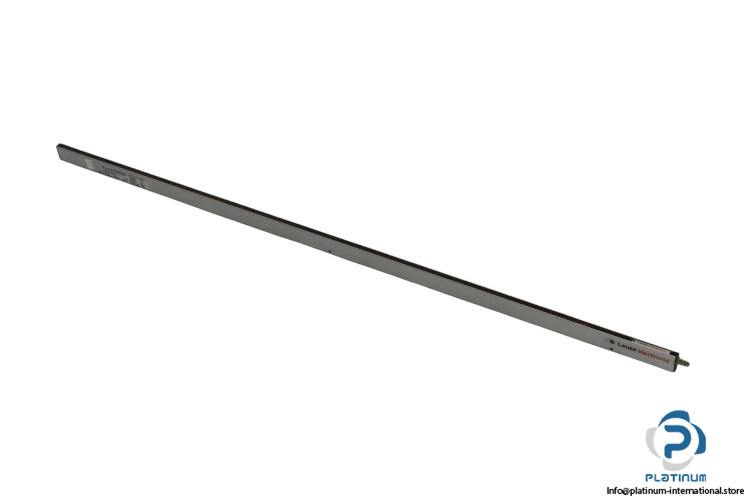

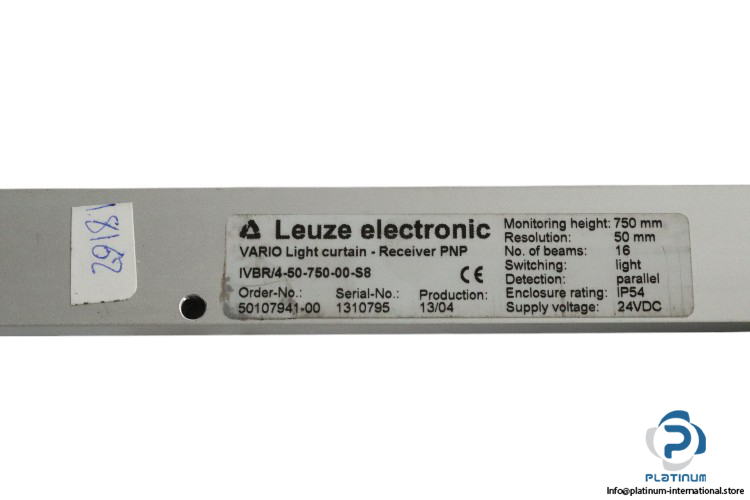

LEUZE IVBR/4-50-750-00-S8 Light Curtain Receiver
The LEUZE IVBR/4-50-750-00-S8 Light Curtain Receiver is an advanced optical sensor designed for use in industrial environments where high-precision safety and monitoring are required. This light curtain receiver operates with a supply voltage of 24VDC and uses PNP electrical design for reliable signal transmission.
With a thread size of M8 and a 4-pole connection type, this light curtain receiver provides exceptional performance with a monitoring height of 750 mm and 16 beams. The resolution of 50 mm ensures accurate detection of objects in its sensing area. This receiver is designed to work in parallel detection mode and is capable of light switching, making it ideal for safety applications.
- Manufacturer: LEUZE
- Model: IVBR/4-50-750-00-S8
- Part No.: 50107941-00
- Supply Voltage: 24VDC
- Electrical Design: PNP
- Connection Type: Round connector, M8
- Material: Metal
- Number of Poles: 4 poles
- Monitoring Height: 750 mm
- Number of Beams: 16
- Resolution: 50 mm
- Switching: Light
- Detection: Parallel
- Enclosure Rating: IP54
- Ambient Temperature: -10 / 45 °C
- Dimensions: 10 mm x 960 mm x 27 mm
This light curtain receiver is perfect for high-precision monitoring and safety applications in industrial environments, offering robust performance and a high degree of protection.
