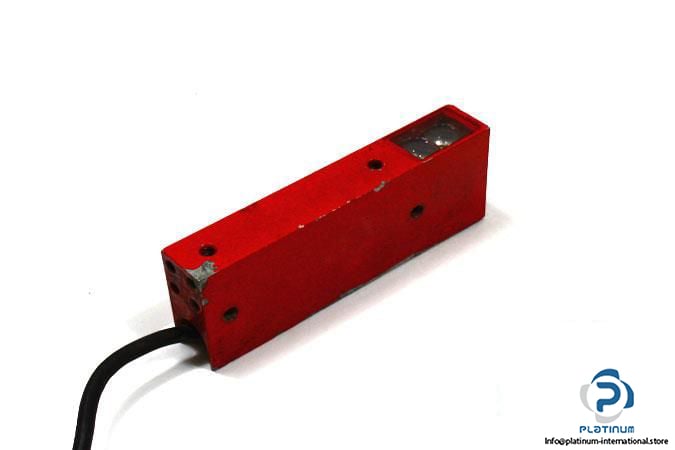

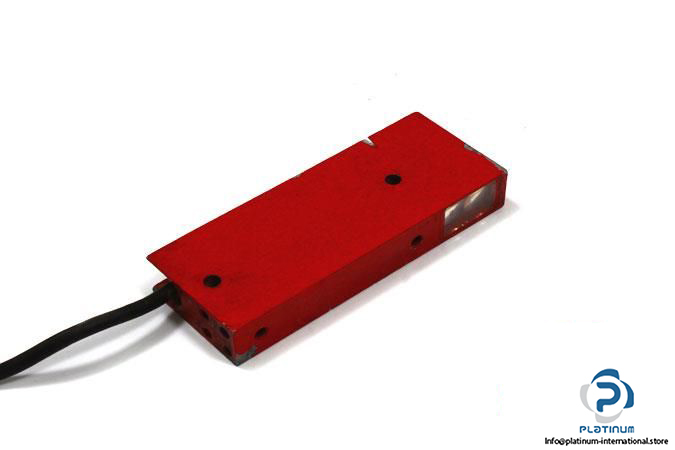

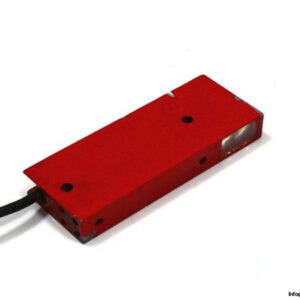

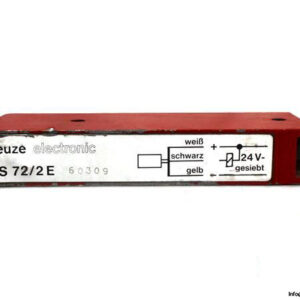

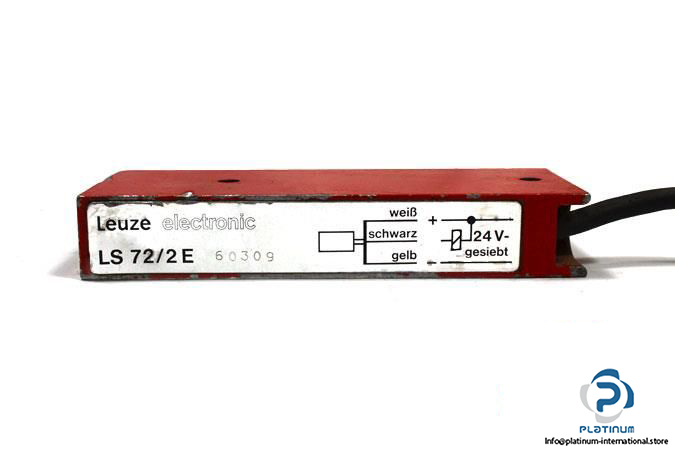

Leuze LS 72/2 E Through-Beam Photoelectric Sensor Receiver

Manufacturer: LEUZE

Type: THROUGH-BEAM PHOTOELECTRIC SENSOR – RECEIVER

Order Code: LS 72/2 E

Typical operating range: 0 … 12 m

Operating range: 0 … 8 m

Response time: 5 ms

Operating Voltage: 24 V DC

Output Current: 100 mA

Switching frequency: 100 Hz

Electrical design: NPN

Switching output: Light switching

Light source: LED

Wave length: 880 nm

Connector type: Cable

Protection class: II , III

Enclosure rating: IP67

Ambient Operating temperature: -20 … 60°C

Dimensions: 35 x 15 x 90 mm

Housing: Rectangular

Housing material: Metal

Optics material: Glass lens

Condition: Used
