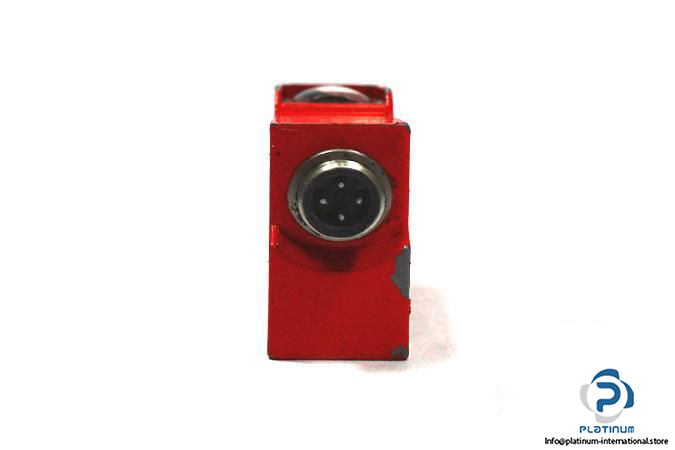

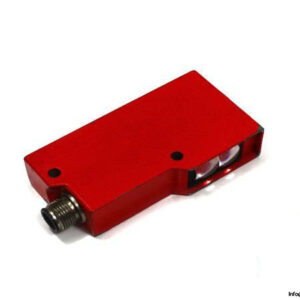

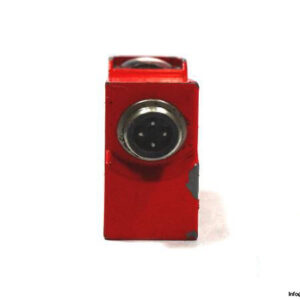

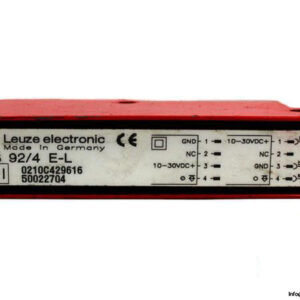

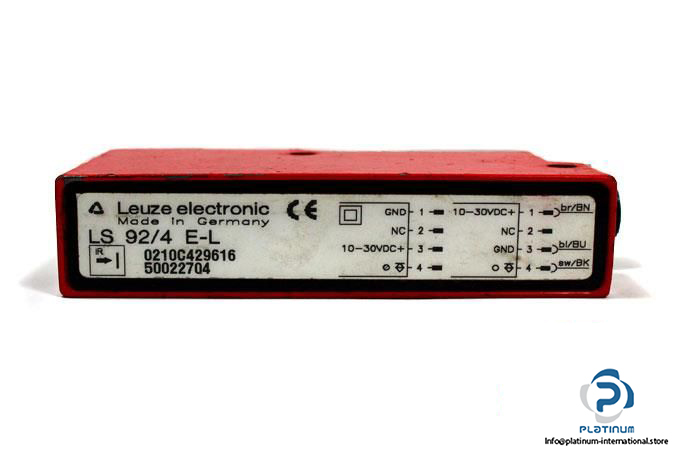

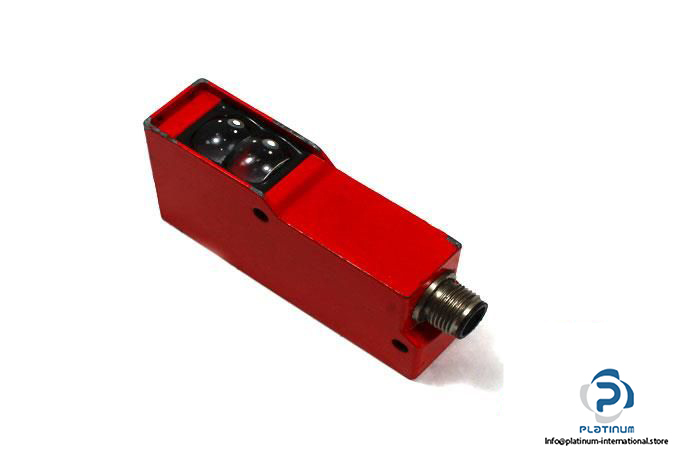

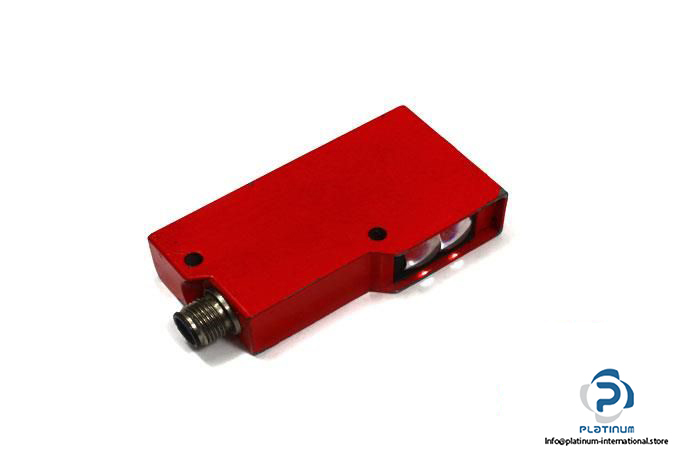

Leuze LS 92/4 E-L Through-Beam Photoelectric Sensor Receiver

Manufacturer: LEUZE

Type: THROUGH-BEAM PHOTOELECTRIC SENSOR – RECEIVER

Order Code: LS 92/4 E-L

Typical operating range: 0 … 16 m

Operating range: 0 … 12 m

Response time: 2.5 ms

Delay before start up: 100 ms

Operating Voltage: 10 … 30 V DC

Output Current max.: 100 mA

Switching frequency: 200 Hz

Electrical design: PNP

Switching output: Light/dark switching (reversible)

Wave length: 880 nm

Connector type: M12 Connector, 4-pin

Protection class: II, III

Enclosure rating: IP67

Ambient Operating temperature: -20 … 60°C

Dimensions: 42 x 20 x 80 mm

Weight: 140 g

Housing: Rectangular

Housing material: Zinc diecast

Condition: Used
