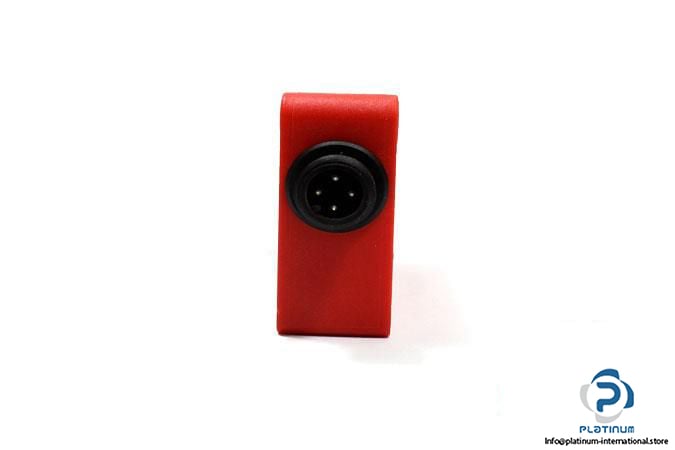

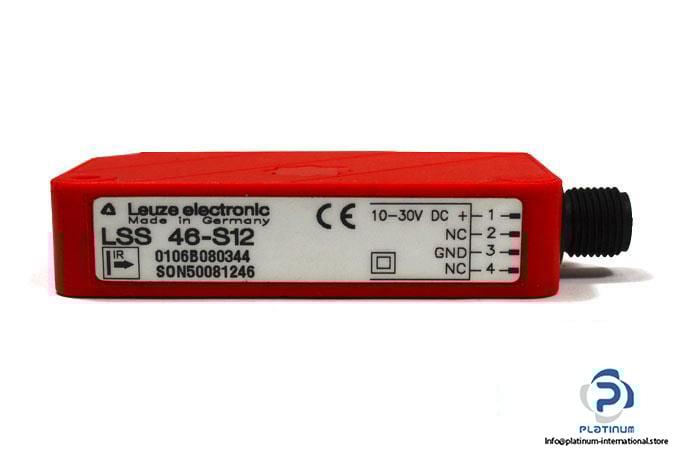

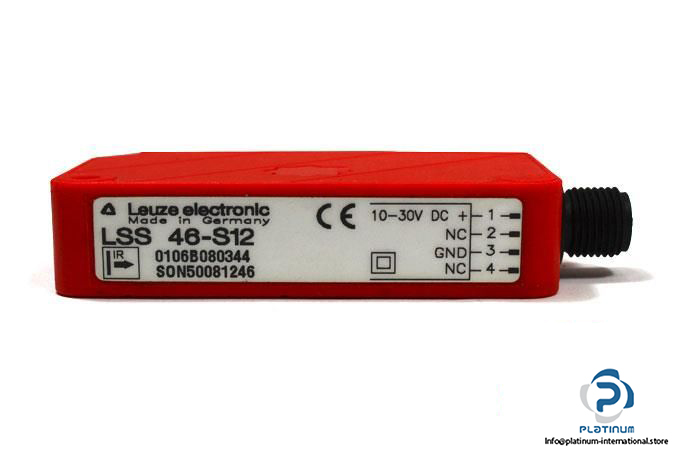

Leuze LSS 46-S12 Through-Beam Photoelectric Sensor Transmitter

Manufacturer:  LEUZE

Type: THROUGH-BEAM PHOTOELECTRIC SENSOR – TRANSMITTER

Order Code: LSS 46-S12

Part No.: 50081246

Typical operating range: 0 … 50 m

Operating range: 0 … 30 m

Response time: 2.5 ms

Operating Voltage: 10 … 30 V DC

Output Current max.: 100 mA

Switching frequency: 200 Hz

Connector type: M12 connector, 4-pin

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -20 … 60°C

Dimensions: 18 x 43 x 72 mm

Housing: Rectangular

Housing material: Plastic

Optics cover material: Plastic

Condition: Used
