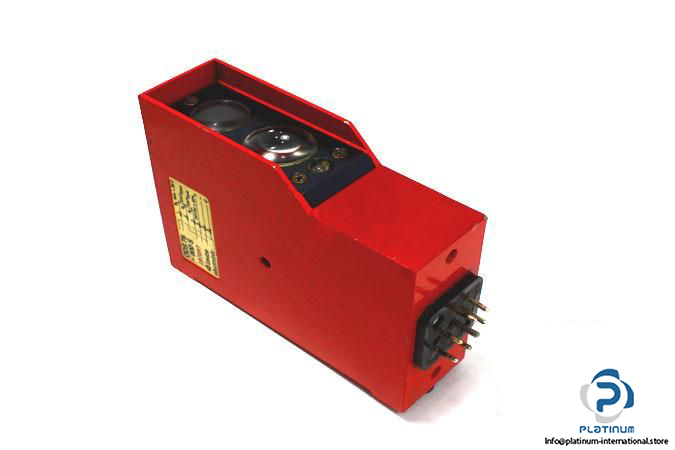

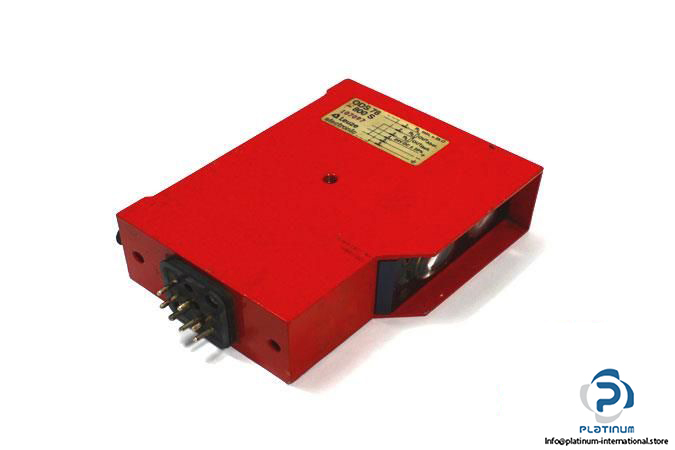

Leuze ODS 78-800S Optical Distance Sensor

Manufacturer: LEUZE

Type: OPTICAL DISTANCE SENSOR

Order Code: ODS 78-800S

Part No.: 50014599

Measurement range: 300 … 800 mm

Running in period: 15 min

Operating Voltage: 24 V DC

Switching frequency: 100 Hz

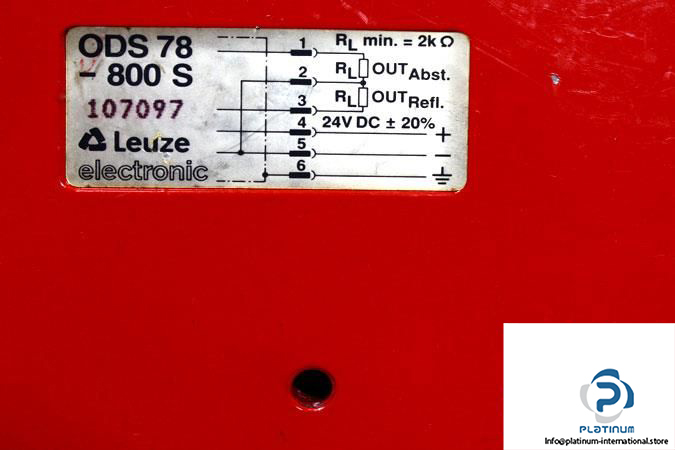

Analogue output: RL ≥ 2k? (voltage) RL ≤ 500 ? (current)

Monitoring output: 1 … 10 VDC ,RL ≥  2k,

,1 V equals a very dark measured object

,10 V equals a very light measured object

Light source: LED

Wavelength: 880 nm

Light spot diameter: 20 mm

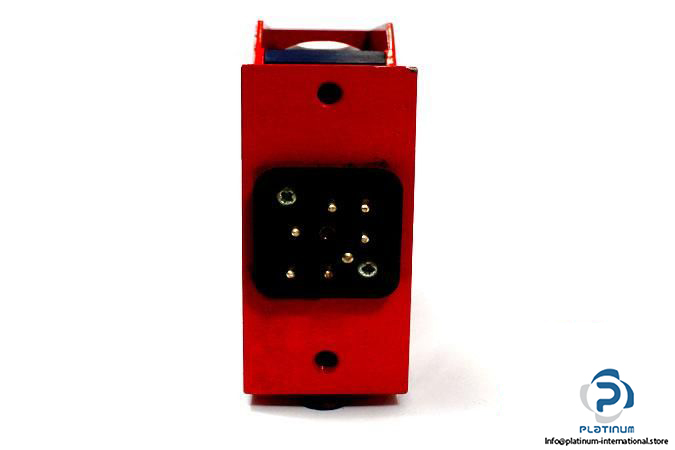

Connector type: Standard plug with screw connections

Enclosure rating: IP65

Ambient Operating temperature: +5 … 50°C

Dimensions: 98 x 38 x 127 mm

Weight: 530 g

Housing: Rectangular

Housing material: Aluminum diecast

Optics cover material: Glass

Condition: Used
