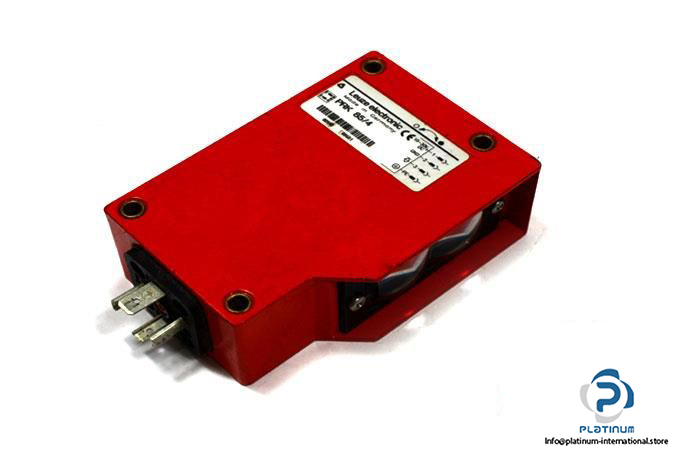

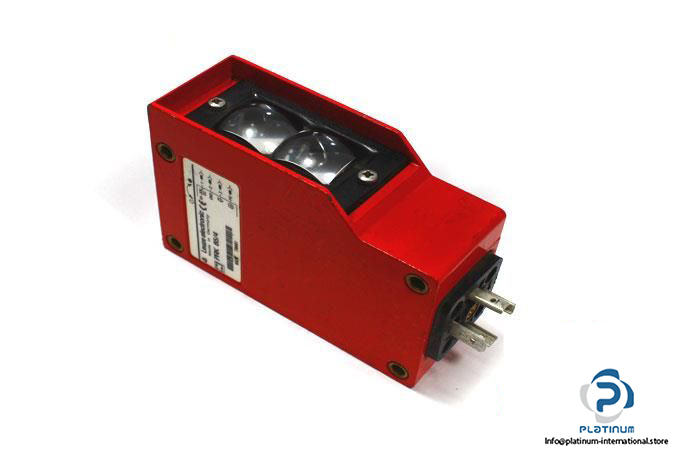

Leuze PRK 85/4 Photoelectric Retro-Reflective Sensor

Manufacturer: LEUZE

Type: PHOTOELECTRIC RETRO-REFLECTIVE SENSOR WITH POLARIZATION FILTER

Model: PRK 85/4

Typical operating range: 7.5 m

Response time: 2.5 ms

Delay before start up max.: 200 ms

Operating Voltage: 10 … 30 V DC

Output Current max.: 100 mA

Switching frequency: 200 Hz

Electrical design: PNP

Switching output: Light/dark switching

Light source: Visible red light, polarized

Wave length: 660 nm

Adjustment: Potentiometer

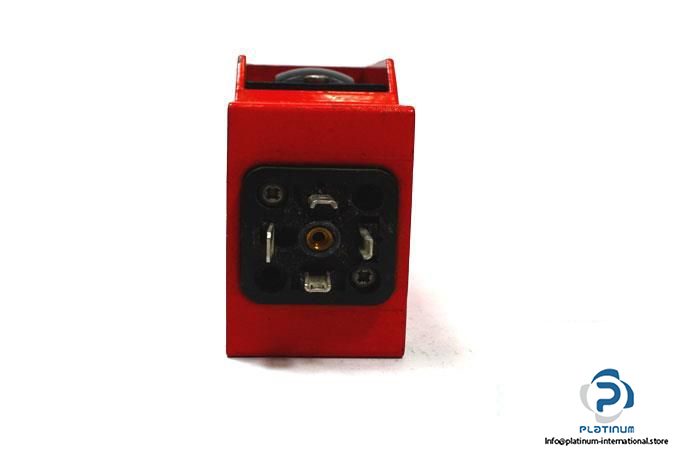

Connector type: Screw terminals

Protection class: I

Enclosure rating: IP65

Ambient Operating temperature: -20 … 55°C

Dimensions: 69 x 36 x 100 mm

Housing: Rectangular

Housing material: Aluminum diecast

Optics cover: Glass
