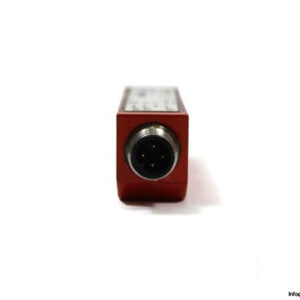

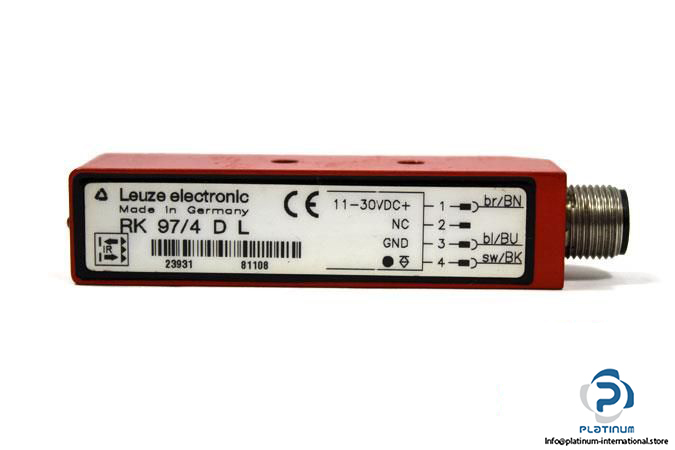

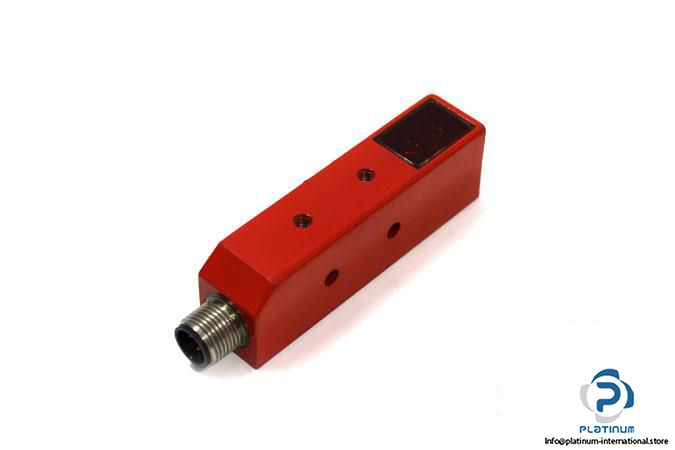

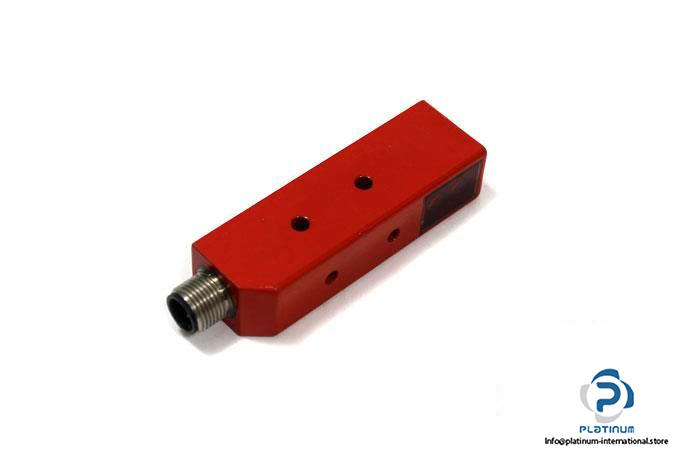

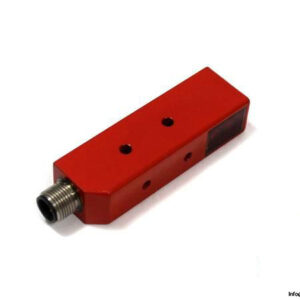

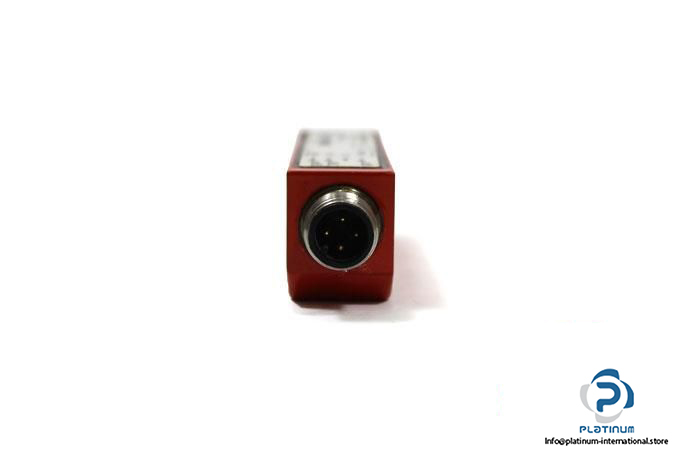

Leuze RK 97/4 D L Photoelectric Retro-Reflective Sensor

Manufacturer: LEUZE

Type: PHOTOELECTRIC RETRO-REFLECTIVE SENSOR /INFRARED LIGHT

Order Code: RK 97/4 D L

Operating range: 0.1 … 4 m

Operating range limit: 0.1 … 6 m

Response time: 2.5 ms

Delay before start up: ≤ 100ms

Operating Voltage: 10 … 30 V DC

Output Current: 100 mA

Switching frequency: 200 Hz

Electrical design: PNP

Switching output: Dark switching

Light source: Red LED

Wave length: 880 nm (Infrared)

Connector type: M12 Connector, 4-pin

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -20 … 60°C

Dimensions: 23 x 18 x 75 mm

Weight: 85 g

Housing: Rectangular

Housing material: Zinc diecast

Optics cover: Glass

Condition: Used
