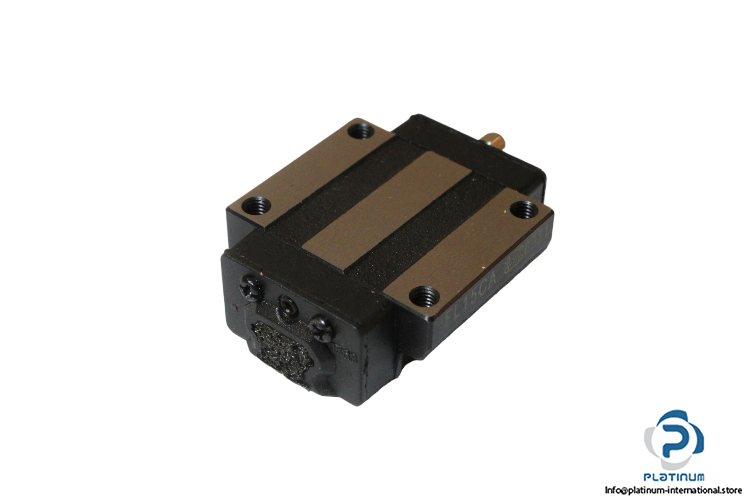

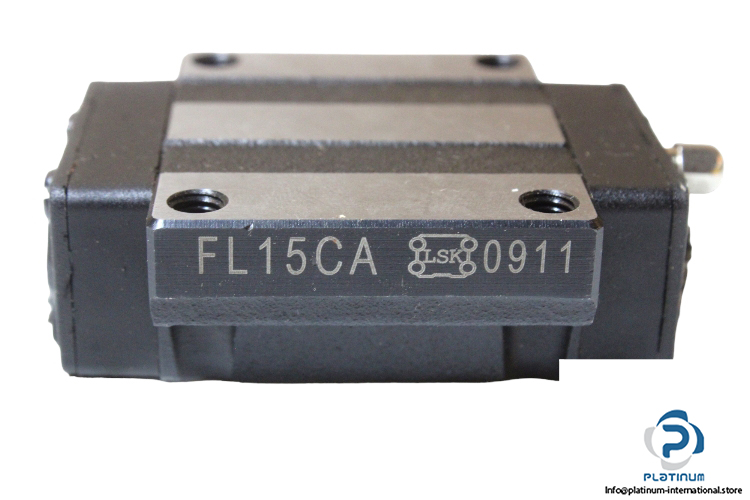

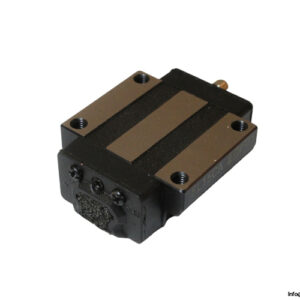

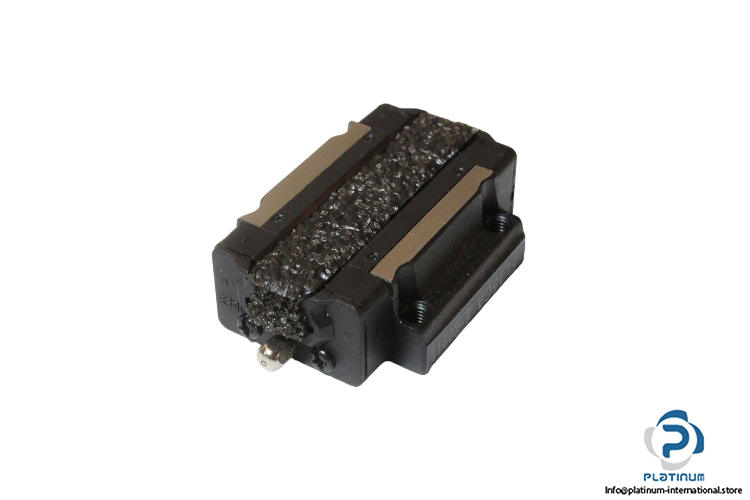

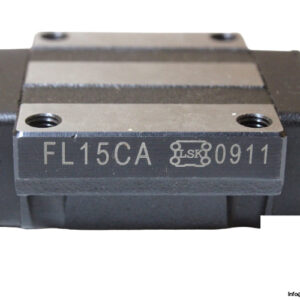

LSK FL15CA Linear Bearing Block

Manufacturer: LSK

Type: Linear Guideway Block

Model:  FL 15CA



Size: 15

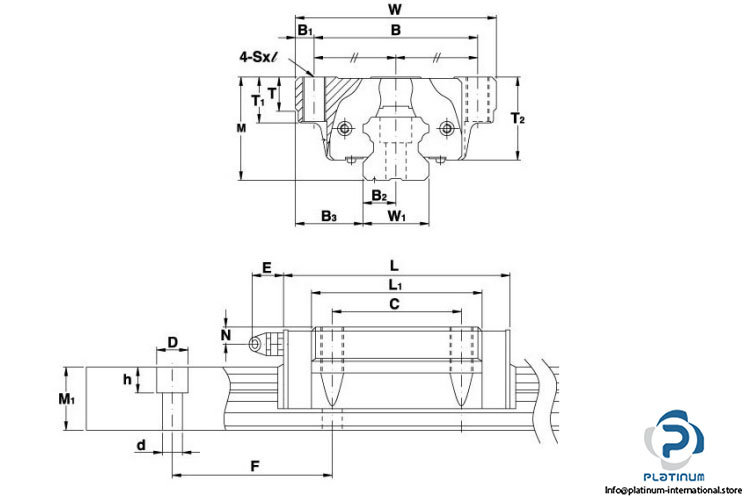

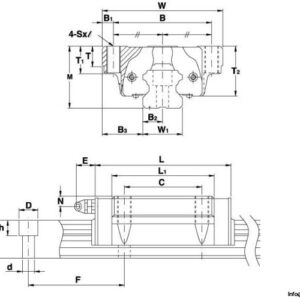

Dimensions

Total Height H: 24 mm

Block Height T₂: 19.5 mm

Width W: 47 mm

Block Length L: 56.2 mm

B: 38 mm

C: 30 mm

L₁: 38.2 mm

Block Type: Flange Type

Mounting Hole: 4 Tapped holes

Basic Load Ratings:

Dynamic C:  850 kgf

Static C₀: 1380 kgf
