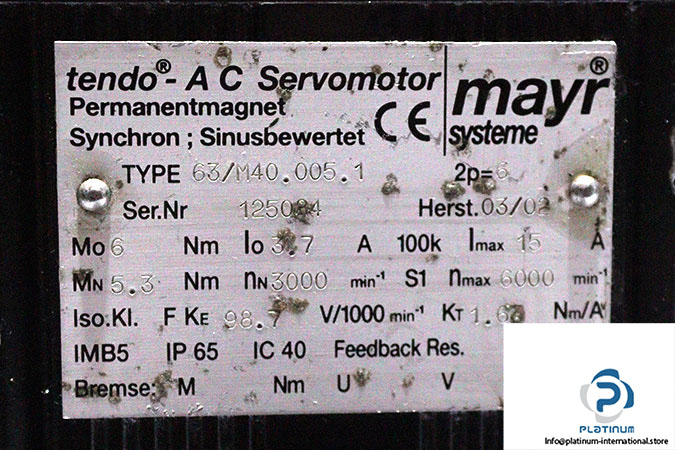

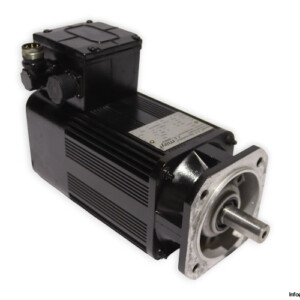

Mayr Systeme 63/M40.005.1 AC Servo Motor Permanent Magnetic Synchronous

Manufacturer: MAYR
Type: Ac Servo Motor Permanent Magnetic Synchronous
Model: 63 M40 005 1

Motor Size: 63
Max. Current: 15 A
Stall Current: 3.7 A
Voltage Constant: 98.7 V/1000 min^-1
Max. Speed: 6000 Revolution Per Minute (rpm)
Normal Speed: 3000 Revolution Per Minute (rpm)
Normal Torque: 5.3 Nm
Stall Torque: 6 Nm
Duty: S1
Constant Torque: 1.63 Nm/A
Insulation Class: F
Mounting Position: IM B5
Protection Class: IP 65
