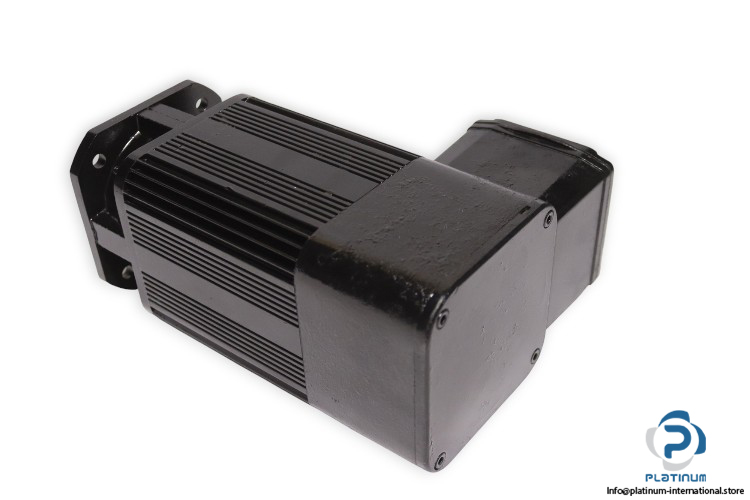

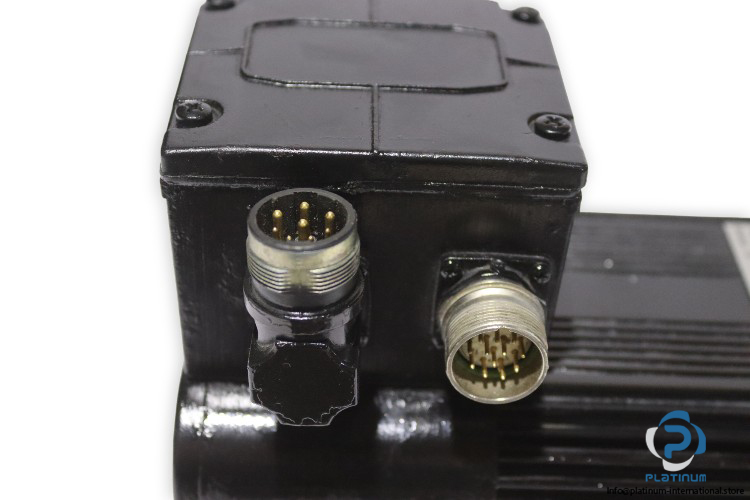

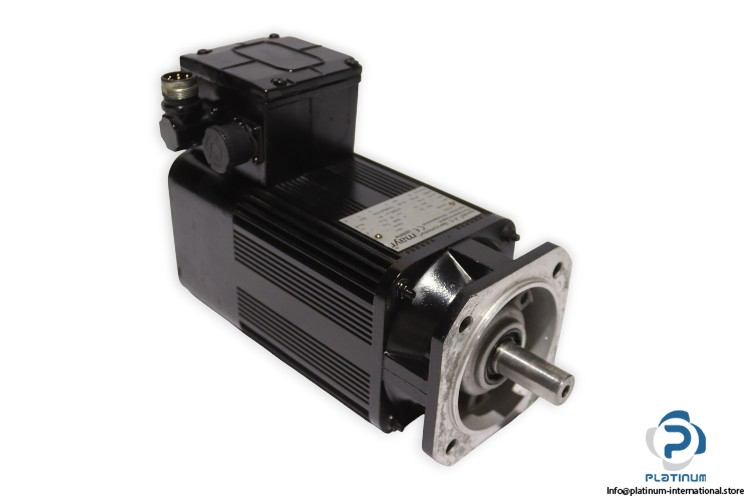

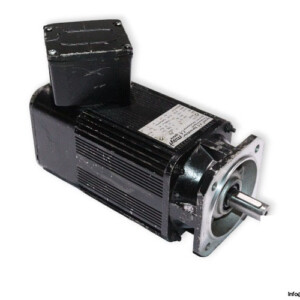

Mayr Systeme 63/M40.005.1H/3 AC Servo Motor Permanent Magnetic Synchronous

Manufacturer: CONTROL TECHNIQUES / EMERSON

Type: AC SERVO MOTOR PERMANENT MAGNETIC SYNCHRONOUS

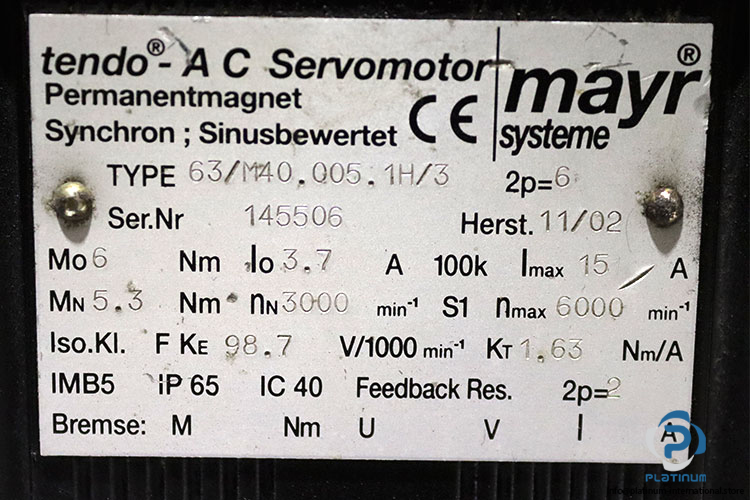

Model: 63/M40.005.1H/3

Motor Size: 63

Max. Current: 15 A

Stall Current: 3.7 A

Voltage Constant: 98.7 V/1000 min^-1

Max. Speed: 6000 Revolution Per Minute (rpm)

Normal Speed: 3000 Revolution Per Minute (rpm)

Normal Torque: 5.3 Nm

Stall Torque: 6 Nm

Constant Torque: 1.63 Nm/A

Insulation Class: F

Protection Class: IP 65

Weight: 2.20 kg
