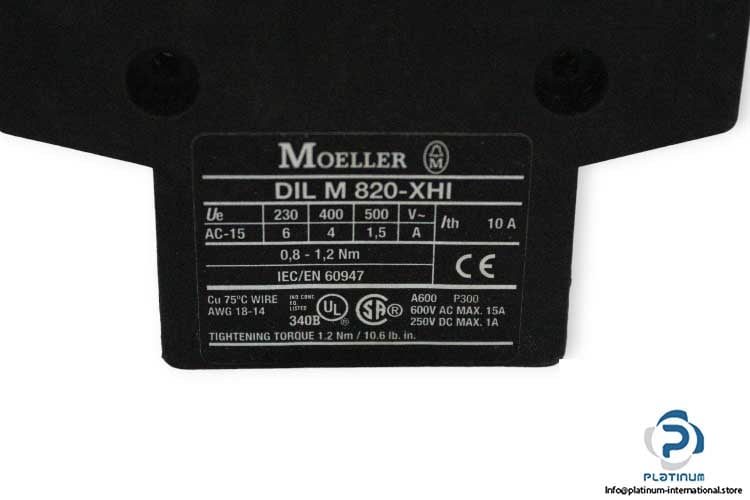

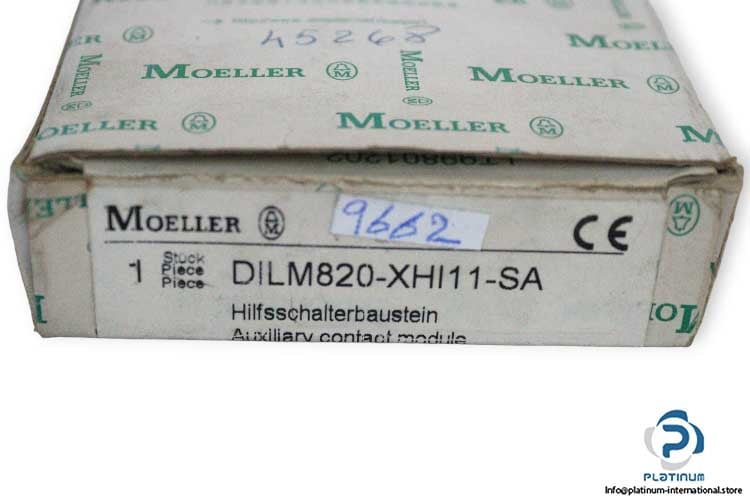

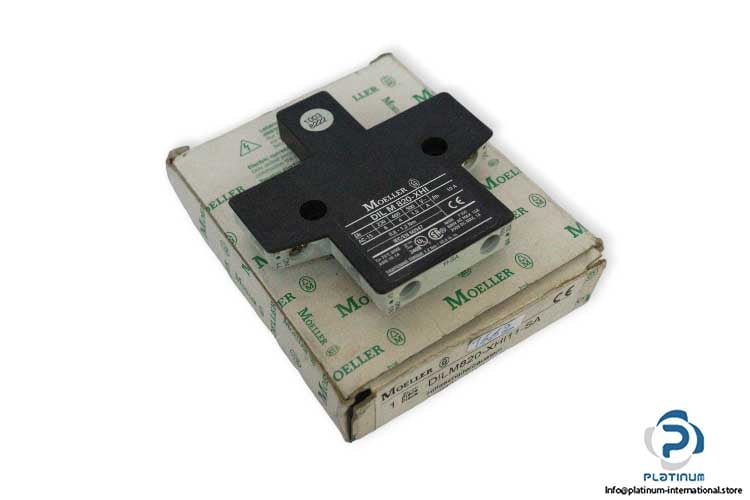

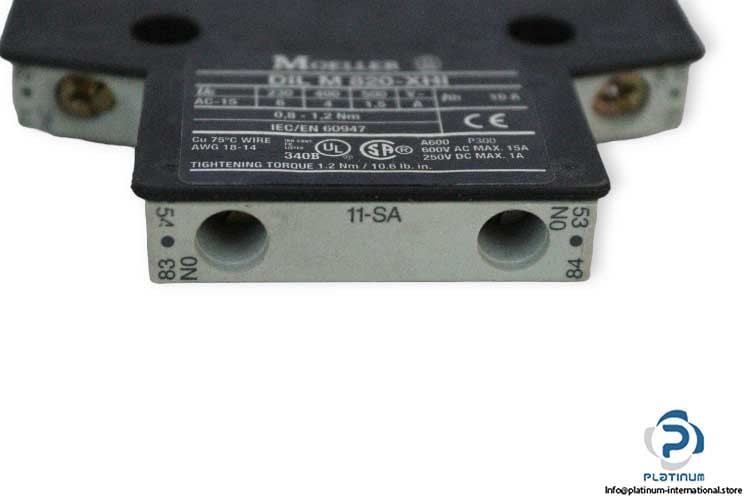

Moeller DILM820-XHI11-SA Auxiliary Contact Module

Manufacture: Moeller
Type: Auxiliary Contact Module
Model: DILM820XHI11SA

Rated operational voltage (Ue) at max.: 500 V AC
Rated operational current (Ie): 6 A (230 V AC),4 A (400 V AC),1.5 A (500 V AC)
Thermal current Ith: 10 A
Number of contacts (normally closed contacts): 1
Number of contacts (normally open contacts): 1
Rated impulse withstand voltage (Uimp): 6000 V AC
Number of poles: Two-pole
Electric connection type: Screw connection
Degree of protection: IP20
Mounting method: Side mounting
Pollution degree: 3
Screw size: M3.5, Terminal screw, Control circuit cables
Tightening torque: 0.8 … 1.2 Nm, Screw terminals
Ambient operating temperature: -40 … 60°C
Dimensions: 77 x 77 x 15 mm
