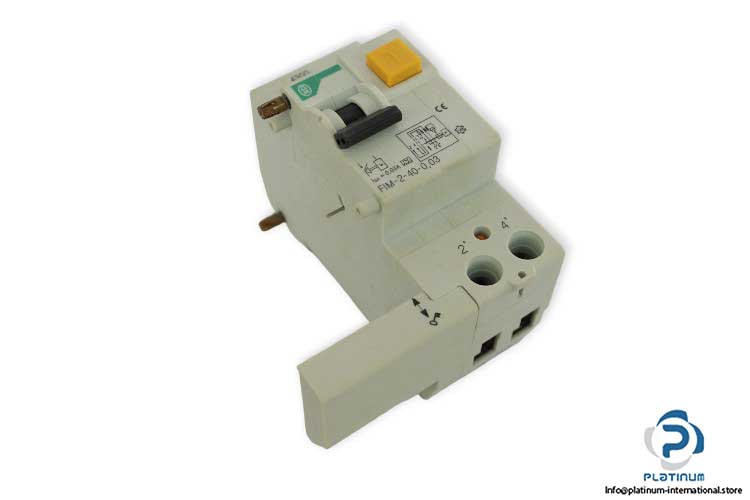

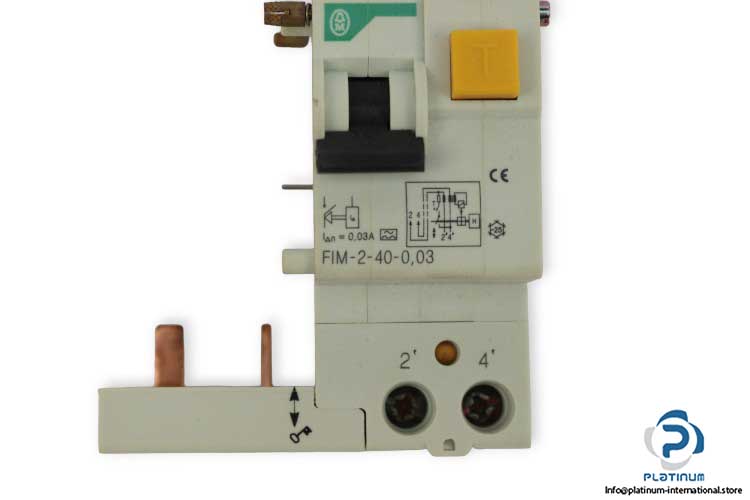

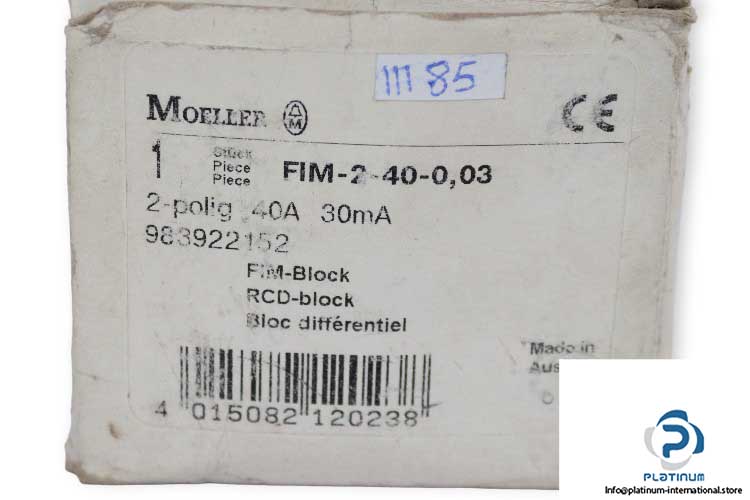

Moeller FIM-2-40-0,03 Residual Current Breaker
New
Available on request
Manufacture:
Moeller
Type:
Residual current breaker
Model:
FIM2400,03
Part No.:
983922152
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacture: Moeller
Type: Residual current breaker
Model: FIM2400,03
Part No.: 983922152
Mounting Method: Permanent screw connection with FAZ
Voltage rating: 230 … 400 V AC
No. of poles: Two-pole
Pollution degree: 2
Rated fault current: 30 Ma
Rated impulse withstand voltage (Uimp): 4 kV
Rated insulation voltage (Ui): 440 V
Surge current capacity: 0.25 kA
Current rating: 40 A
Certifications: IEC/EN 61009
Degree of protection: IP20
Equipment heat dissipation, current-dependent: 8.4 W
Ambient operating temperature: -25 … 40°C
Dimensions: 90 x 75 x 70 mm
