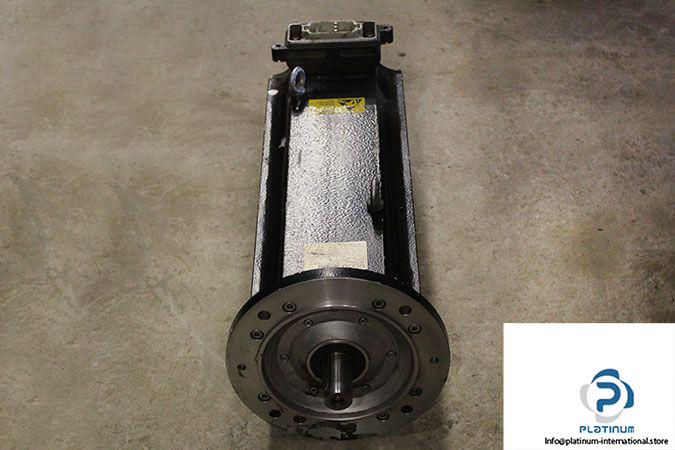

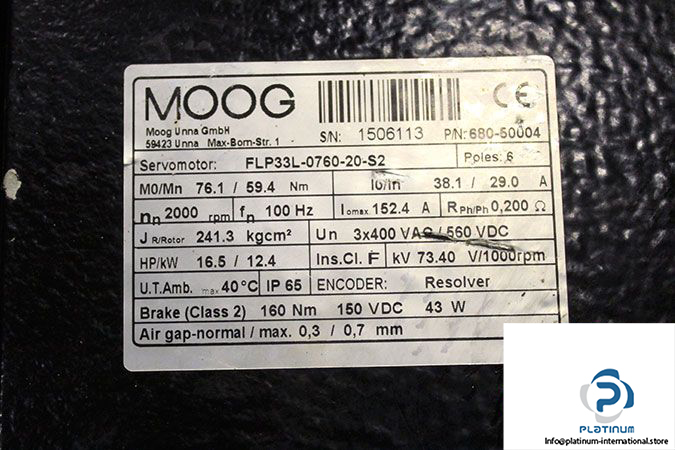

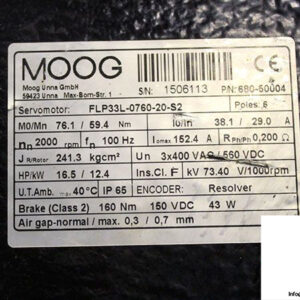

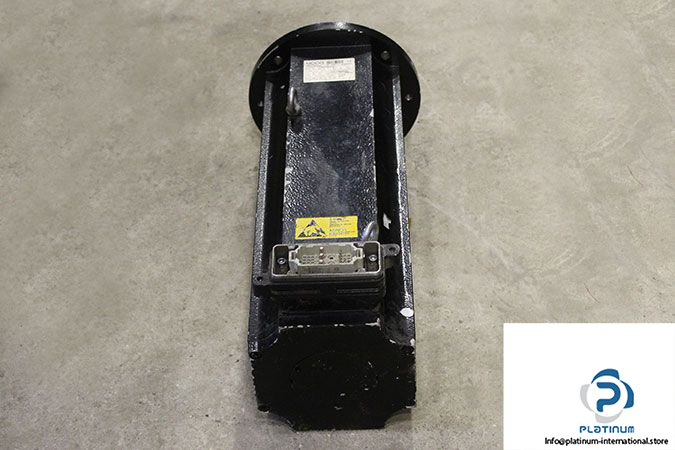

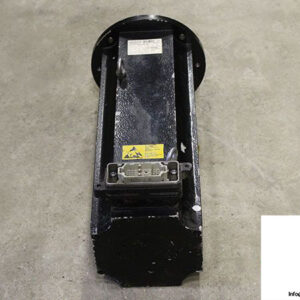

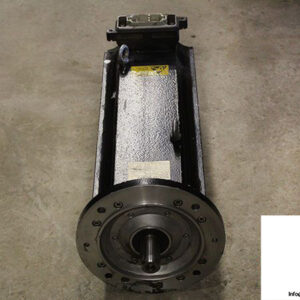

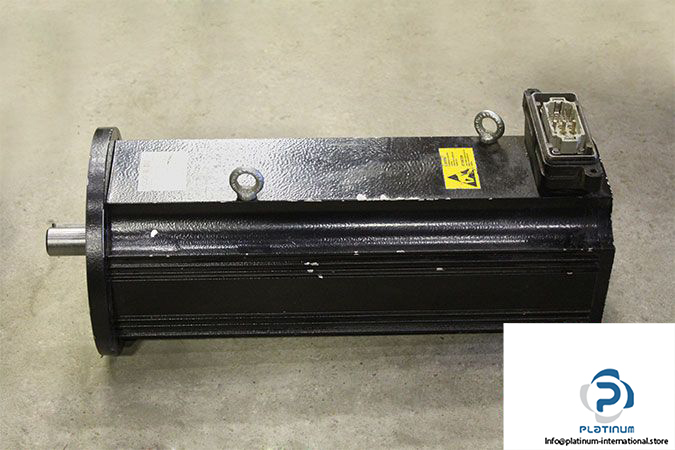

Moog FLP33L-0760-20-S2 Servo Motor

Manufacturer: MOOG

Type: Servomotor

Model: FLP33L-0760-20-S2

Rated Voltage: 400 V AC / 560 VDC

Max. Voltage: 152.4 A

Rated Current: 29 A

Stall Current: 38.1 A

Power: 12.4 kW

Resistance: 0.200 Ω

Rated Speed: 2000 rpm

Rated Torque: 59.4 Nm

Stall Torque: 76.1 Nm

Voltage Brake: 24 VDC

Frequency: 100 Hz

Ambient Temperature: 40 °C

Voltage Brake: 150 VDC

Power Brake: 43 W

Torque Brake: 160 Nm

Insulation Class: F

Protection Class: IP65

Weight: 67.7 kg
