Nachi UCF 206 Square Flange Ball Bearing Unit
New
In stock1 unitReady to ship
Flanged Bearing Unit
Nachi UCF206 square flanged ball bearing unit with 30 mm bore, cast iron housing, and set screw locking device for industrial shaft support.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

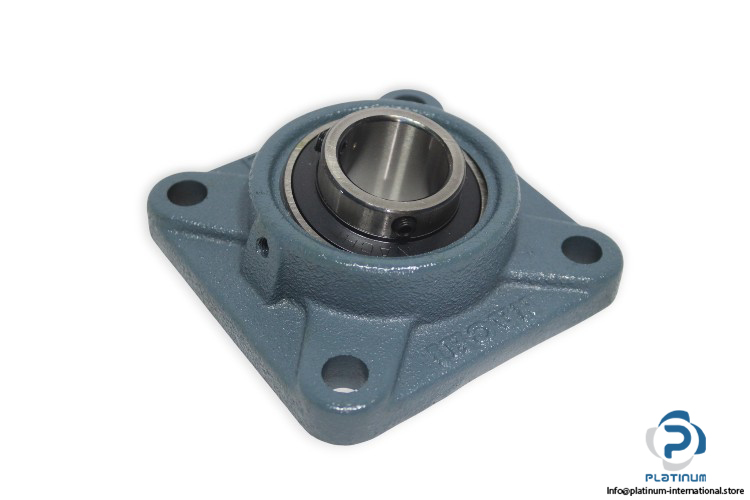

Nachi UCF206 Square Flanged Ball Bearing Unit
The Nachi UCF206 is a square flanged ball bearing unit designed to provide reliable shaft support and stable performance in industrial applications. Its cast iron housing and set screw locking mechanism ensure secure mounting and long service life.
Manufacturer: Nachi
Type: Square Flanged Ball Bearing Unit
Model: UCF206
Bearing Number: UC206
Housing Number: F206

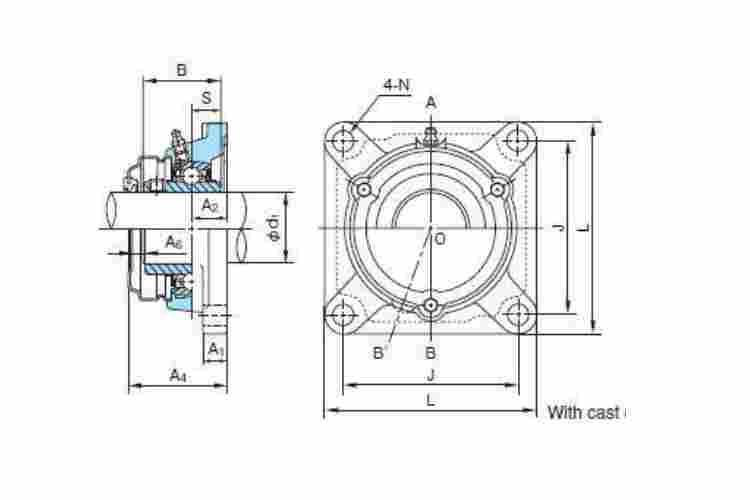

| Shaft Diameter (d) | 30 mm |
| Outside Diameter (L) | 108 mm |
| Pitch Diameter of Attachment Bolts (J) | 83 mm |
| Length of Attachment Bolt Hole (N) | 12 mm |
| Width of Inner Ring (B) | 38.1 mm |
| Overall Width (A0) | 40.2 mm |
| Dynamic Load Rating | 19,600 N |
| Static Load Rating | 11,300 N |
| Bolt Size | M10 |
| Locking Device | Set Screw |
| Housing Type | Square Flange, Cylindrical Bore |
| Housing Material | Cast Iron |
| No. Of Items / Set | 2 |
