Nachi UCFCX06 Round Flange Ball Bearing Unit
New
In stock2 unitsReady to ship
Round Flange Ball Bearing Unit
The Nachi UCFCX06 features a 30 mm bore, cast iron housing, and a set screw locking device. It includes the UC X06 bearing and FC X06 housing, built to handle dynamic loads up to 25,900 N in industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

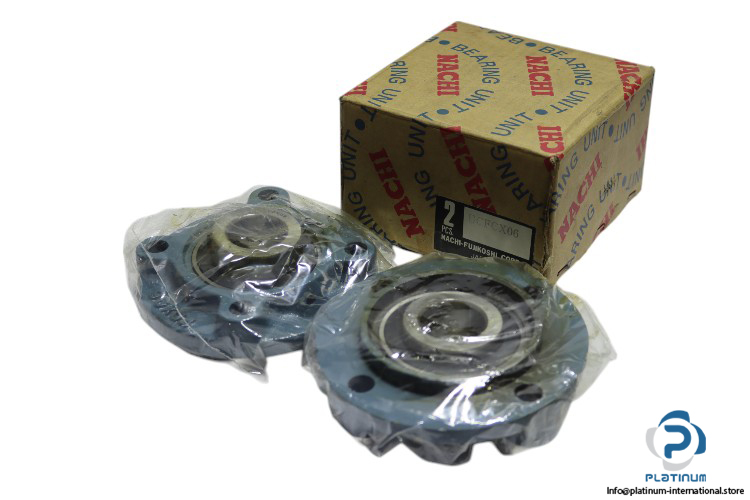

Nachi UCFCX06 Round Flange Ball Bearing Unit
The Nachi UCFCX06 Round Flange Ball Bearing Unit is designed for durability and easy mounting in demanding applications. Featuring a set screw locking device and a robust cast iron housing, it ensures strong and stable performance for rotating components. This unit includes the UC X06 bearing and FC X06 housing, offering optimal alignment and load handling.
Manufacturer: Nachi
Type: Round Flange Ball Bearing Unit
Model: UCFCX06

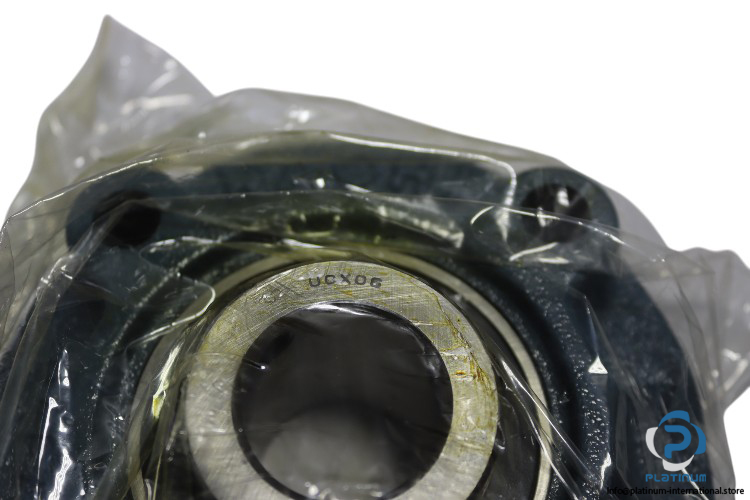

Bearing Number: UC X06

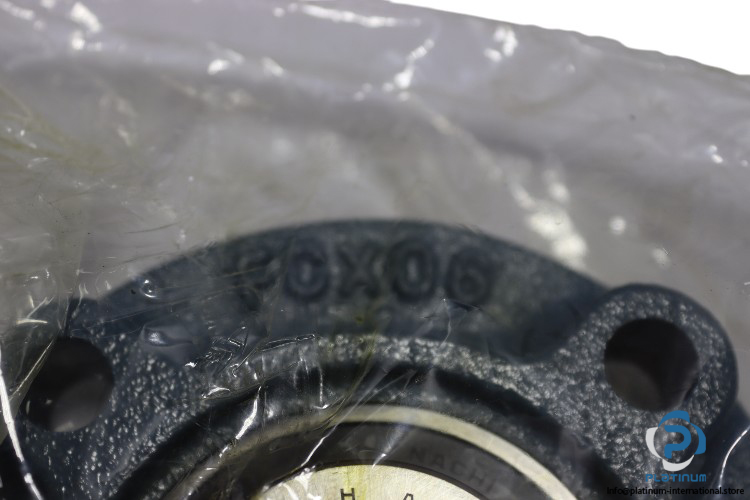

Housing Number: FC X06

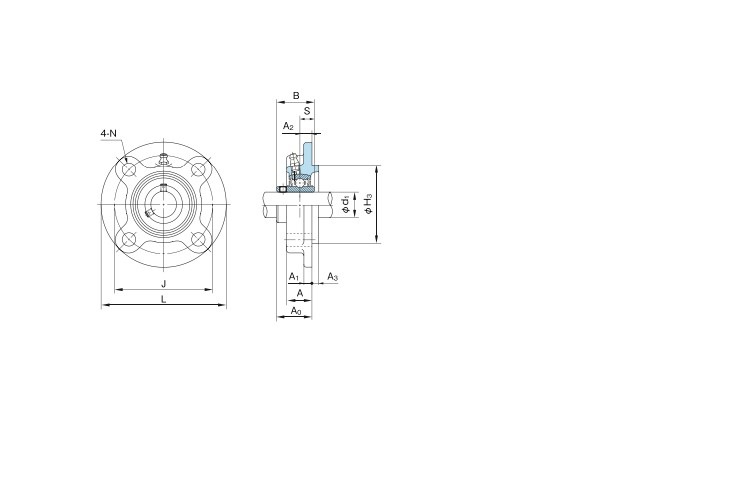

| Bore Diameter | 30 mm |
| Outside Diameter | 127 mm |
| Distance Between Attachment Bolts | 105 mm |
| B | 42.9 mm |
| A0 | 33.4 mm |
| N | 12 mm |
| Dynamic Load Rating | 25,900 N |
| Static Load Rating | 15,400 N |
| Locking Device | Set Screw |
| Housing Material | Cast Iron, Cylindrical Bore |

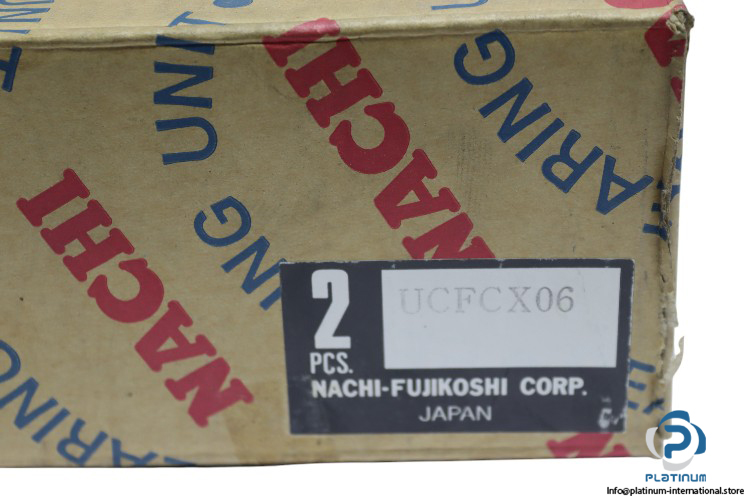

| Item per Set | 2 |
