Nachi UCFX12 Four-Bolt Square Flange Unit
New
In stock2 unitsReady to ship
Four-Bolt Square Flange Unit
The Nachi UCFX12 flange unit features a 60 mm bore diameter, UCX 12 bearing, and FX 12 housing. Built for strength and alignment with 57,500 N dynamic and 40,000 N static load ratings, it ensures stability in industrial systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Nachi UCFX12 Four-Bolt Square Flange Unit

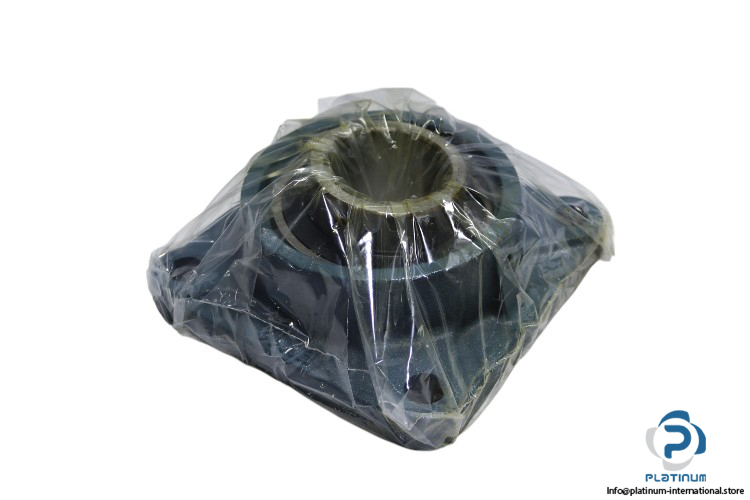

The Nachi UCFX12 is a robust four-bolt square flange unit engineered for high-performance load handling in industrial machinery. With precise alignment and strong housing design, it features the UCX 12 bearing and FX 12 housing, ensuring stable operation in demanding environments.
Manufacturer: Nachi
Type: Four-Bolt Square Flange Unit
Model: UCFX12

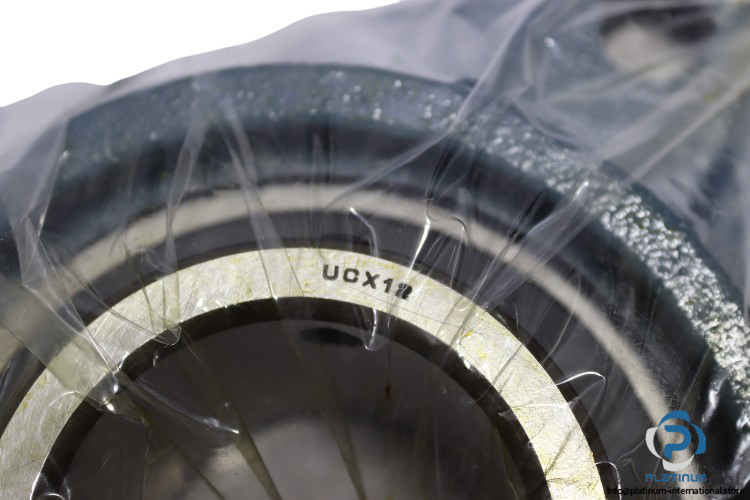

Bearing No.: UCX 12

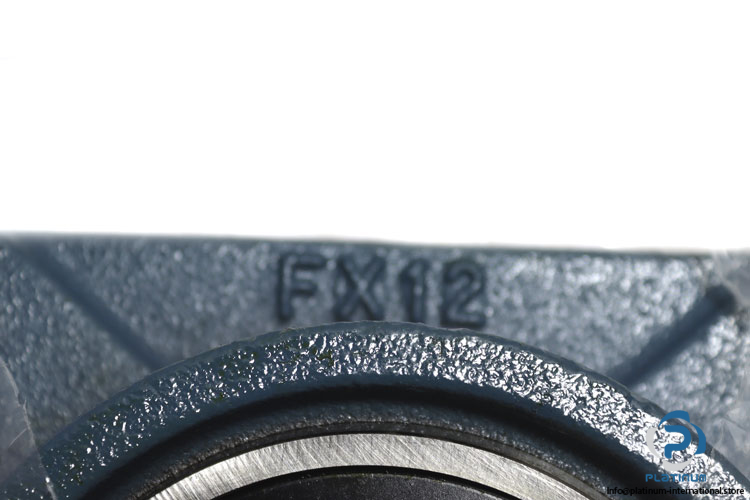

Housing No.: FX 12
| Bore Diameter | 60 mm |
| Overall Length | 187 mm |
| Width of Inner Ring | 65.1 mm |
| Distance Between Attachment Bolts | 149 mm |
| Overall Unit Width | 73.7 mm |
| Dynamic Load Rating | 57,500 N |
| Static Load Rating | 40,000 N |
