Nachi UCP 210 Pillow Block Ball Bearing Unit

In stock1 unitReady to ship

Pillow Block Bearing Unit

Nachi UCP210 pillow block bearing unit with 50 mm bore, cast iron housing, and set screw locking, designed for reliable industrial shaft support.

Manufacturer
NACHI
SKU
1089934
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

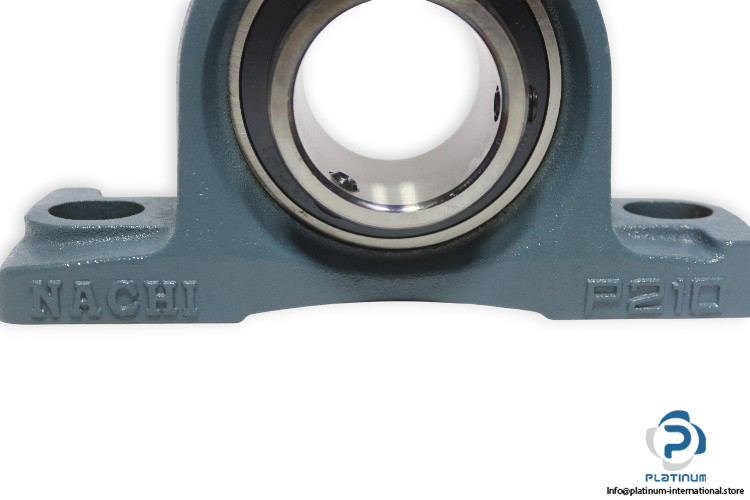

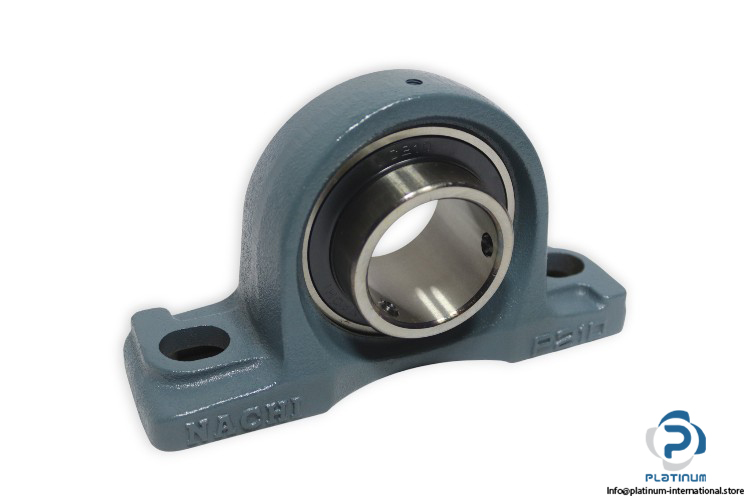

Nachi UCP210 Pillow Block Ball Bearing Unit

The Nachi UCP210 pillow block bearing unit is designed to provide reliable shaft support and stable performance in industrial applications. It combines a mounted UC210 bearing with a durable P210 cast iron housing for easy installation and long service life.

Manufacturer: Nachi

Type: Pillow Block Ball Bearing Unit

Model: UCP210

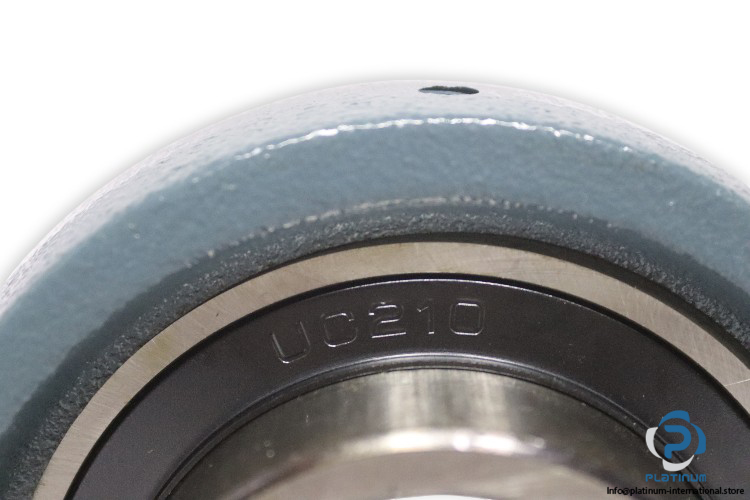

Bearing Number: UC210

Housing Number: P210

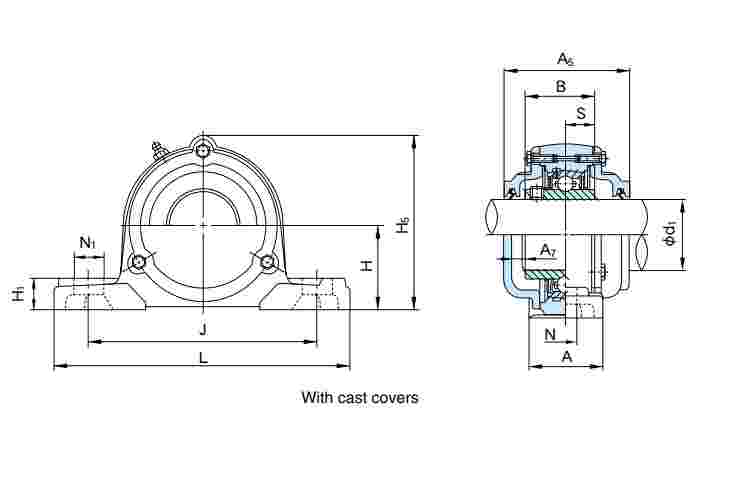

Bore Diameter (d)50 mm
Overall Length (L)206 mm
Overall Height (H2)114 mm
Width of Inner Ring (B)51.6 mm
Distance Between Attachment Bolts (J)159 mm
Diameter of Attachment Bolt Hole (N)20 mm
Overall Width (A)60 mm
Bolt SizeM16
Basic Load Rating (Dynamic)35,500 N
Basic Load Rating (Static)23,200 N
Locking DeviceSet Screws
Bore TypeCylindrical Bore
MaterialCast Iron
